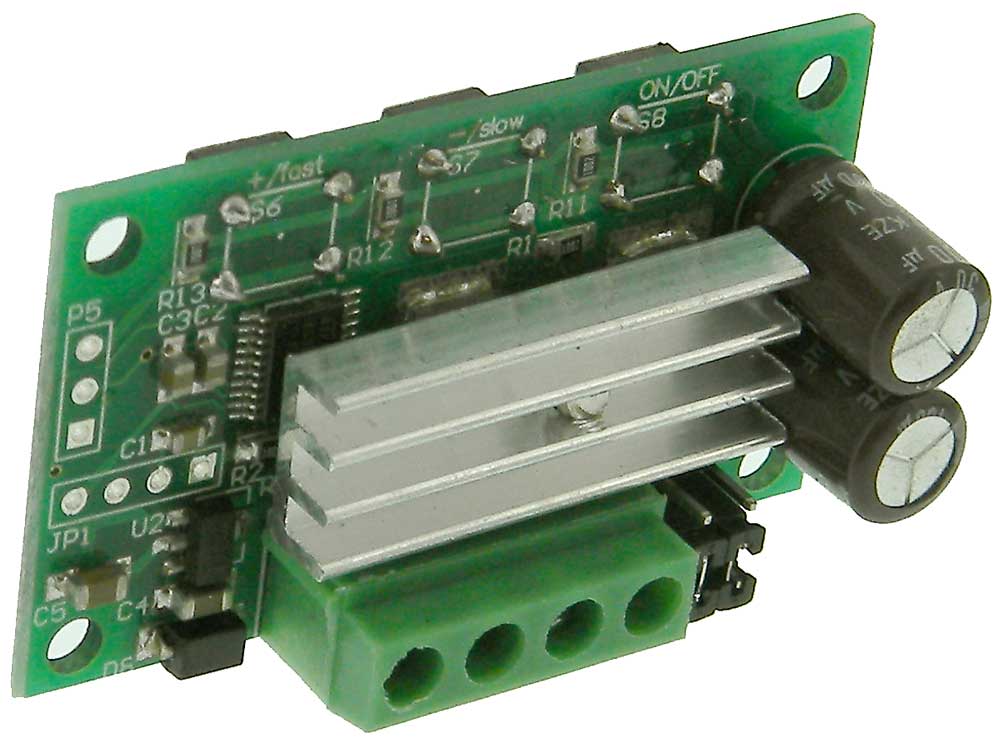

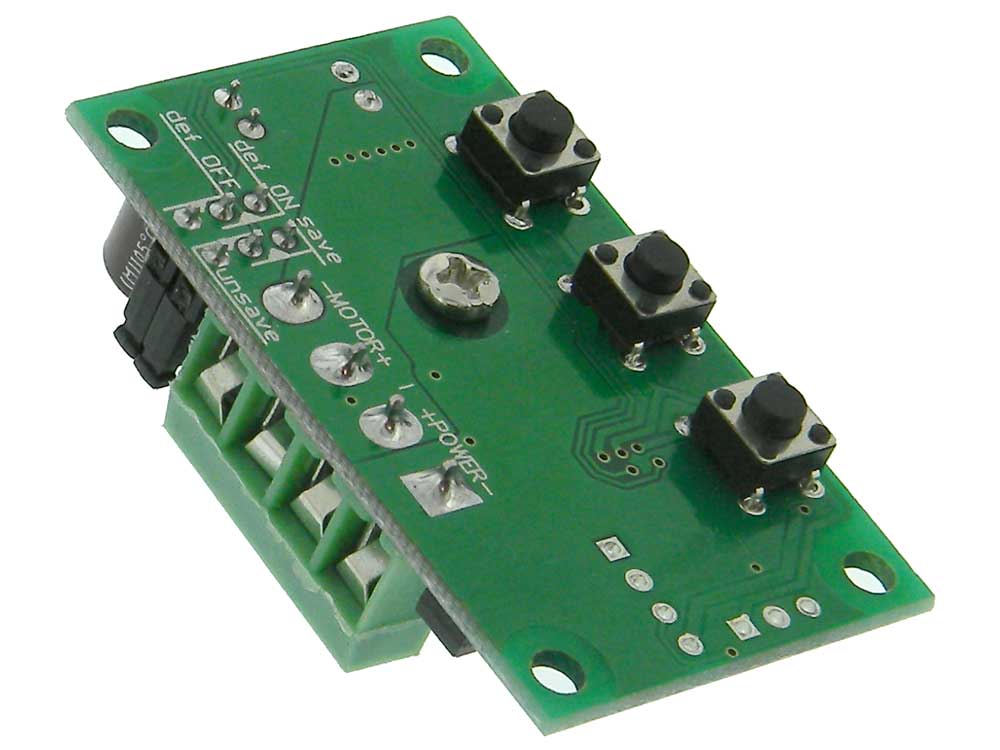

Motor Speed Control, DC 6-28V, 2A with Memory


Motor Speed Control, DC 6-28V, 2A with Memory
Images/32826-large.jpg Images/32826-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 32826 MD
  Be the first to review this item

Did we sell out of a part and you want to buy more? You can possible buy directly from our overseas supplier. Some restrictions apply: general rule $50 per line item and a minimum $100 per order.

You can contact our source at:
Supplier: Aqua Jiang - aquajiang1@outlook.com

In your email, your Subject needs to me MPJA Customer and reference the MPJA stock number and quantity required. They will get back to you with pricing, lead time and shipping cost.

SHARE

     Email this to a friend

Detailed Description

Input: 6-28VDC
Output: 2A Max
Specifications/Features: Compact, wide range dc speed control with memory. Uses PWM to vary the speed of DC motors while keeping torque high. Mini push buttons to raise or lower speed. On/Off Button Starts & Stops motor. Selectable memory function gives you the option for the motor to be off or start automatically when power is applied to board and an option to resume speed prevously set.
Terminal strip for Power & Motor connections.
Range: ~5%-99% of rated motor RPM
Max. Frequency: 21KHz.
L: 2” W: 1-3/16” H: 3/4” WT: .04
