Stepmotor, 1.8deg. NEMA 17, 4 Lead


Stepmotor, 1.8deg. NEMA 17, 4 Lead
Images/32177-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 32177 MS
  Be the first to review this item
$7.95


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

P/N: 17HD3007-03
COIL: ~6VDC/7 Ohms/15uh
TYPE: 2 Phase Bi-Polar 4 lead
STEP ANGLE: 1.8 deg

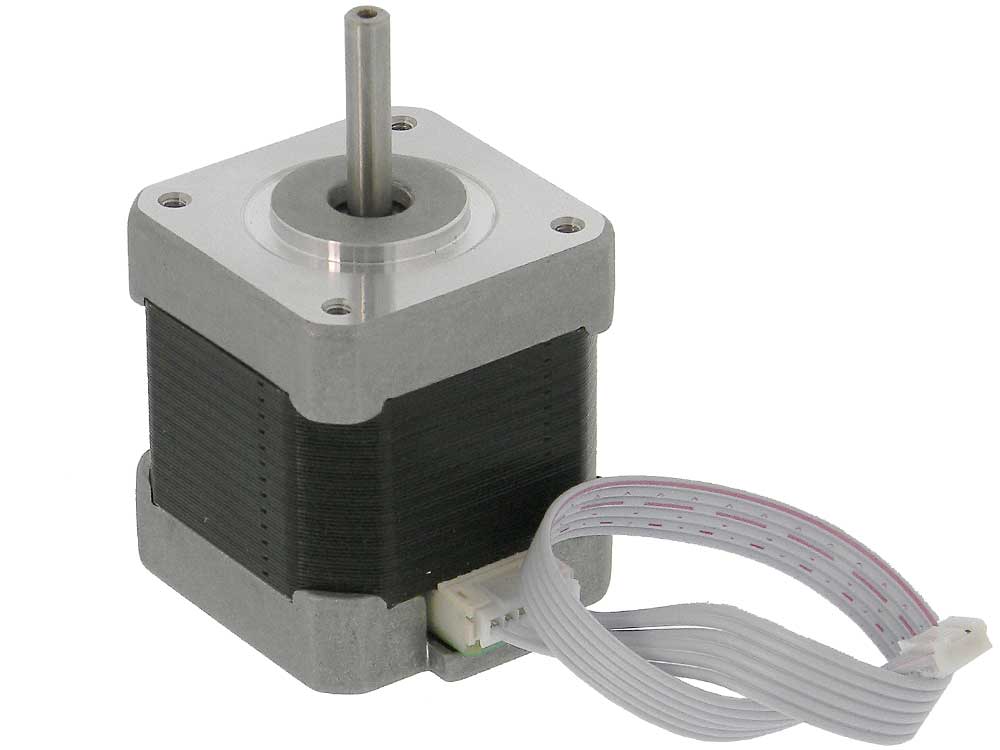

New step motor, 5mm X 22mm steel shaft. 4 corner M3-.50 mounting holes. 7in. cable to Header connector (sorry no mate).
L: 1-7/8" (Body) Sq: 1-5/8" WT: .75

View PDF Data Sheet
