Stepper Motor, NEMA 17, 5.6V


Stepper Motor, NEMA 17,  5.6V
Stock Number: 19286 MS
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$9.50
$4.25
This item is discontinued & is not being restocked.


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

MFG: SOURCE ENG.

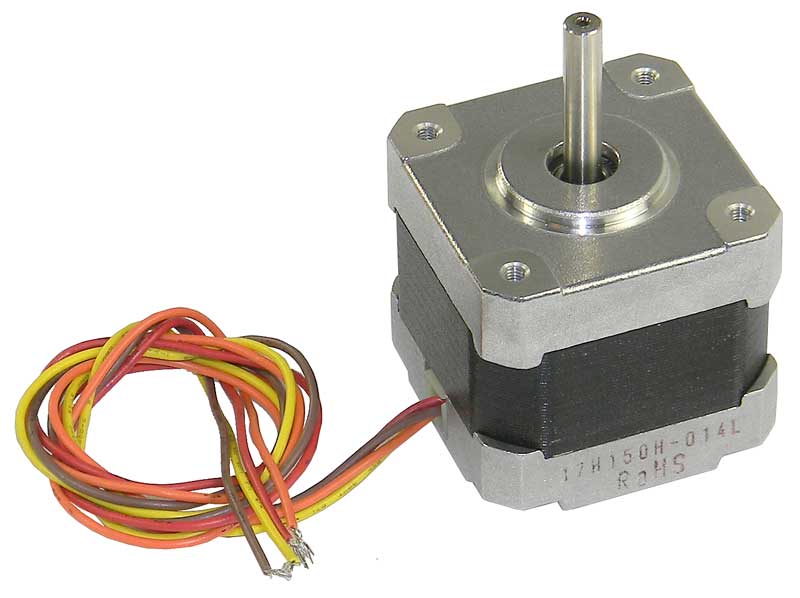

P/N: 17H150H-014L
NEMA: 17
COIL: 5.6V/.85A/6.3ohm/7mH
TYPE: 2 Phase Uni-Polar 4 lead
STEP ANGLE:1.8 deg

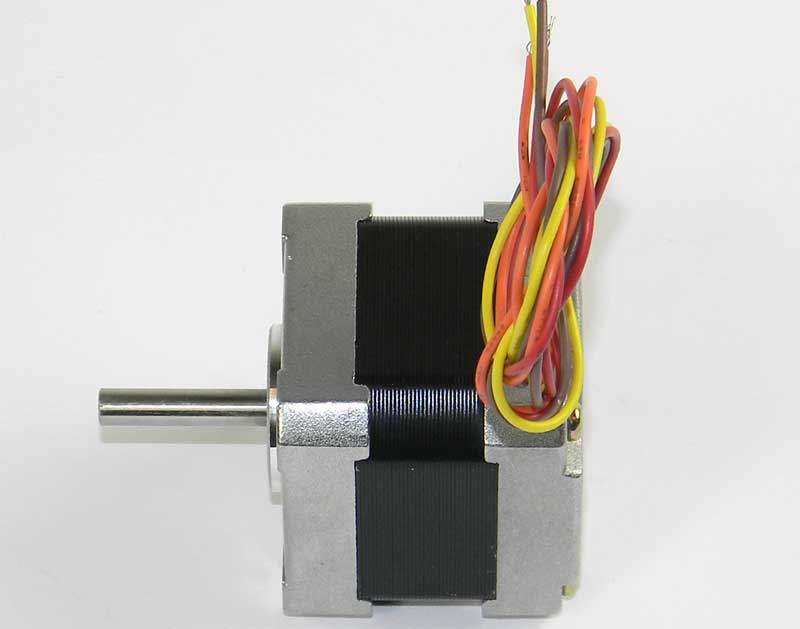

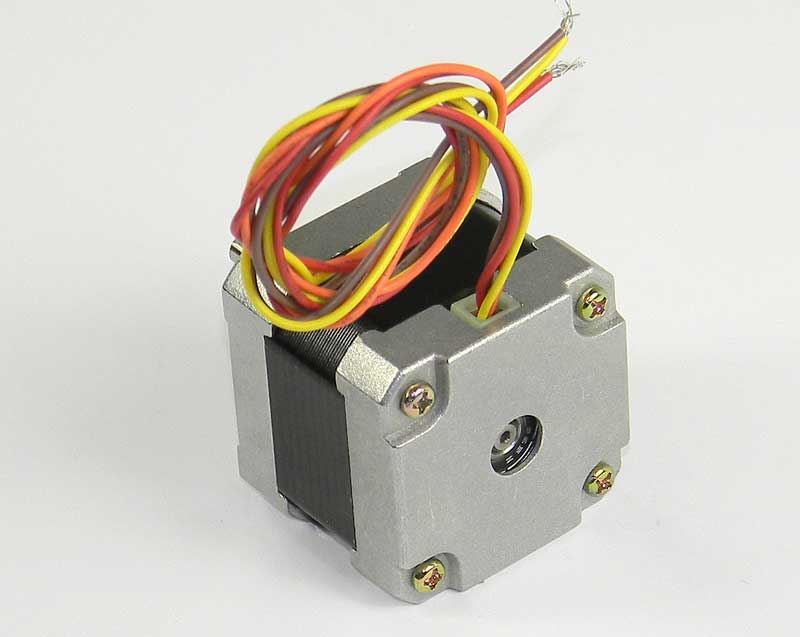

Custom motor with a 5mm dia. X 7/8” steel shaft. Ball bearings, 13" leads and four M3-.5 mm corner mounting holes.
L: 1-9/16"(Body) SQ: 1-5/8" WT: .56

View PDF Data Sheet


California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)



 Product ReviewsClick here to review this item
Built a Funbot 3D printer with these for the XYZ axis
On the Recommendation of the other reviewer, I bought these to use on the XYZ axis of my 3D printer project. They worked great.
Mike

Perfect for RepRap printers
These little motors seem to have more than enough moxy to drive the X,Y, and Z axies of a RepRap style printer, and they are a steal at this price. I didnt try to use one in the extruder, I doubt it would have been strong enough. Used them in my RepRap Wilson build see photos on Thingiverse. Leads are long, but lack connectors, however youll probably need to solder a short extension on them for use in your printer and you can add a connector then.
Ken Scharf
