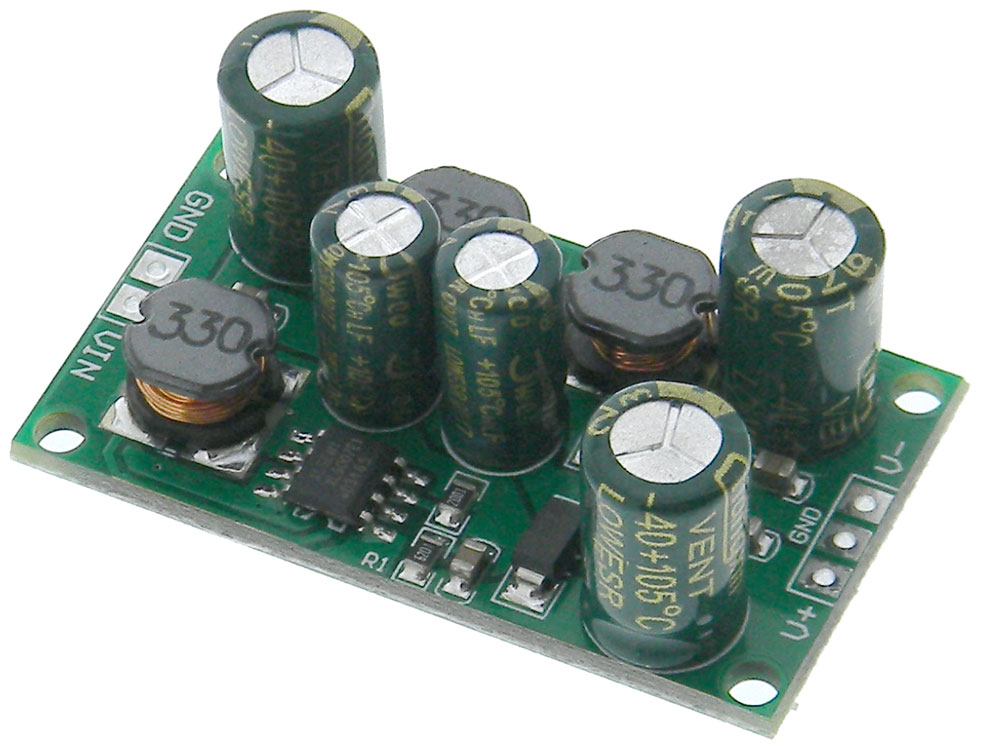

+&- 12VDC - Fixed Output Buck-Boost DC/DC Converter


+&- 12VDC - Fixed Output Buck-Boost  DC/DC Converter
Stock Number: 37218 PS
  Be the first to review this item
$8.95
$4.95
This item is discontinued & is not being restocked.


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


DC-DC Boost-Buck Converter with Built in Frequency Compensation, Soft-Start, Thermal Shutdown & Current Limit.
NOTE: V- cannot be used alone
you can just use V+
Input voltage 3~24V
Output + & - 12VDC
Maximum output power: 1 to 8W (Dependant on Input)
Conversion efficiency: 70-90%
Quiescent current: 3-4mA
Accuracy: Positive voltage ±3%, Negative voltage ±5%
(Minimum Recommended Load:10mA)
Operating Frequency: ~ 400KHZ.
Operating ambient temperature: ~-40 to ~+85°C
L: 1-5/8" W: 15/16" H: 5/8" WT: .02
