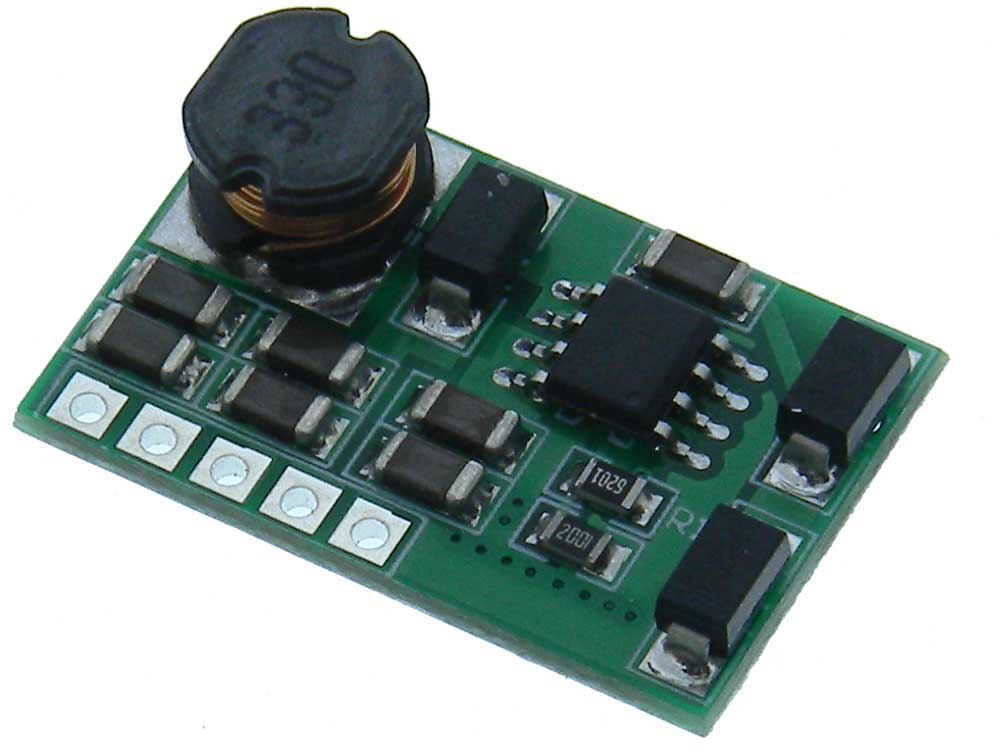

+ & - 15VDC Output Boost Converter


+ & - 15VDC Output Boost Converter
Stock Number: 38177 PS
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 25
Quantity



SHARE

     Email this to a friend

Detailed Description

NON ISOLATED - GNDs are Common
Boost (Step-Up) Converter
+Output must have some Load
Input: 3.3 ~13VDC
Output: + & -15VDC
Output Current: +15V@ 600mA max/-15V @ 120mA max
Input Current: 1.8A
Operating Frequency: ~400KHZ
Operating Temperature: -40°C~+125°C
Storage Temperature: -65°C~+150°C

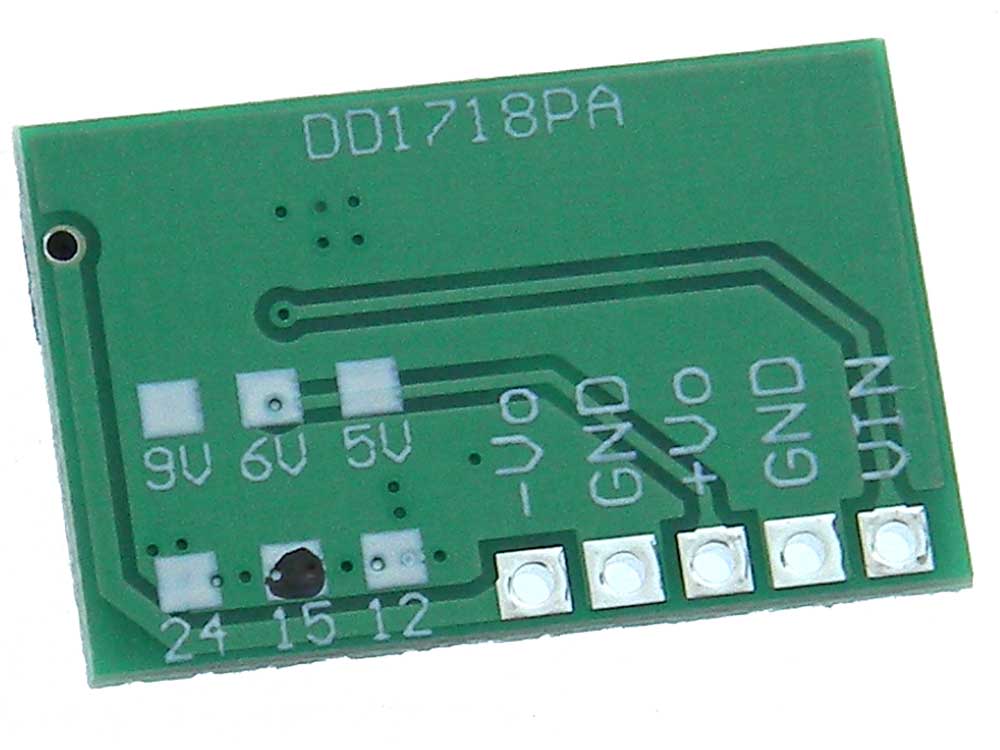

Connections: Solder Holes on 0.1” Pitch
L: 25mm (1”) W: 16.3mm (5/8”) H: 6.6mm (5/16”) WT: .005
