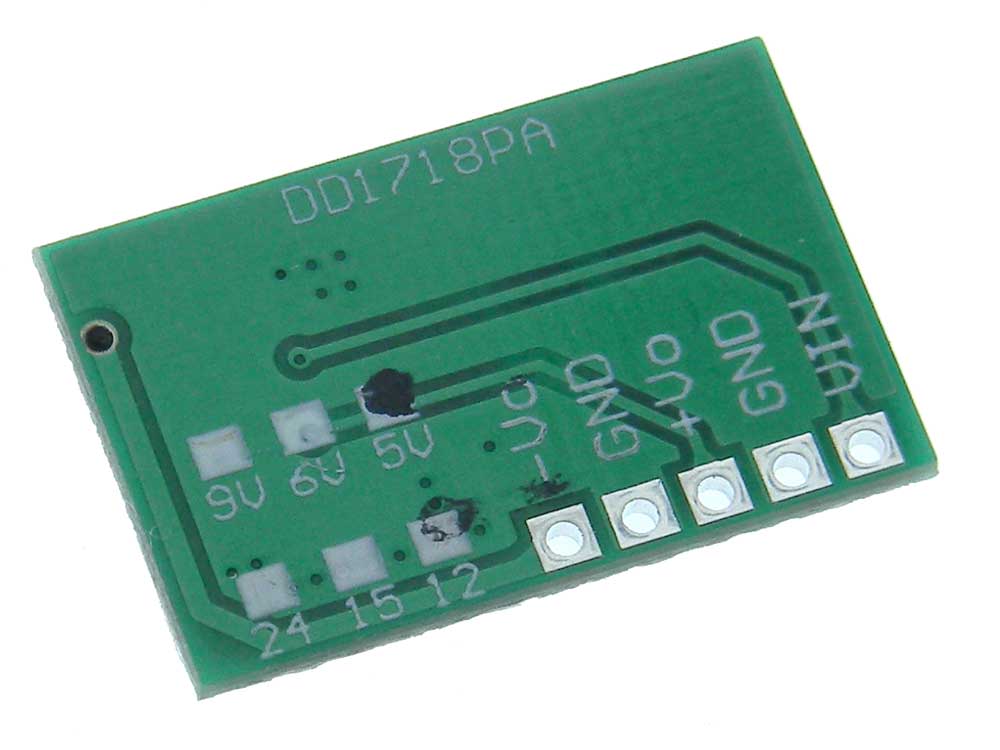

+ & - 5VDC Output Boost Converter


+ & - 5VDC Output Boost Converter
Stock Number: 38173 PS
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 18
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


NON ISOLATED - GNDs are Common
Boost (Step-Up) Converter
+Output must have some Load
Input: 3~4.5VDC
Output: + & -5VDC
Output Current: +5V@ 1A max/-5V @ 200mA max
Input Current: 2A
Operating Frequency: ~400KHZ
Operating Temperature: -40°C~+125°C
Storage Temperature: -65°C~+150°C
Connections: Solder Holes on 0.1” Pitch
L: 25mm (1”) W: 16.3mm (5/8”) H: 6.6mm (5/16”) WT: .005
