0-999mA Digital Panel Meter


0-999mA Digital Panel Meter
Images/34672-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34672 ME
  Be the first to review this item
$8.95


Availibilty: In Stock   Units: 16
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

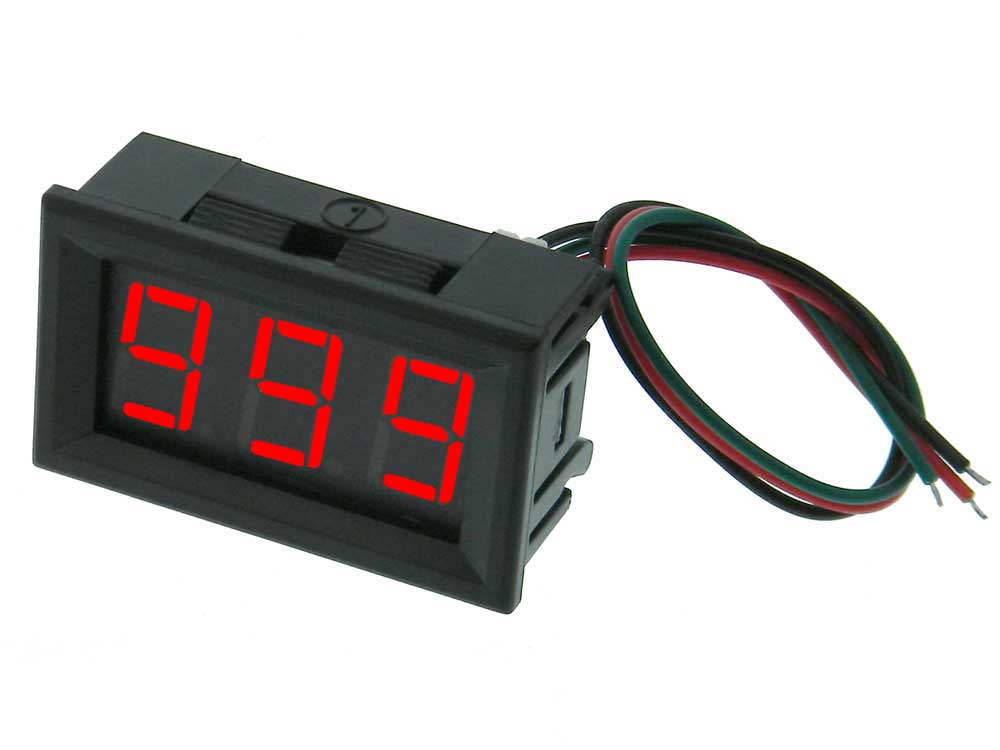

Mini snap-in, 3 digit Red LED panel Ammeter. For monitoring current in battery, solar and control circuits.
Note: Low Side Meter. Load return & Meter Power - must share a common point.
Test Range: 0-999mA DC
Maximum Input Current: +110%
Power: 4.0-28VDC @ <20mA, Typ. 5-15mA
Resolution: 1/0.1 mA auto Range
Sample Rate: ~500mS (2x/second)
Accuracy: ~1% + (±1 LSD)
Display: 3-digit, 0.56" Red LED
Pigtail Lead length: 150mm (~6”)
Working temperature: -10°C to ~ 65°C
Working humidity: 10% to ~80% (no condensation)
Cutout: W: 46mm (~1-13/16”) H: 27mm (~1-1/16”)
W: 48mm (~1-7/8”) H: 29mm (~1-1/8”) D: 30mm (~1-1/4”) With Connector
WT: .04
