12 VDC 4 Channel Adjustable Sequential Controller


12 VDC 4 Channel Adjustable Sequential Controller
Images/37716-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 37716 RL
  Be the first to review this item
$19.95


Availibilty: In Stock   Units: 3
Quantity



SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

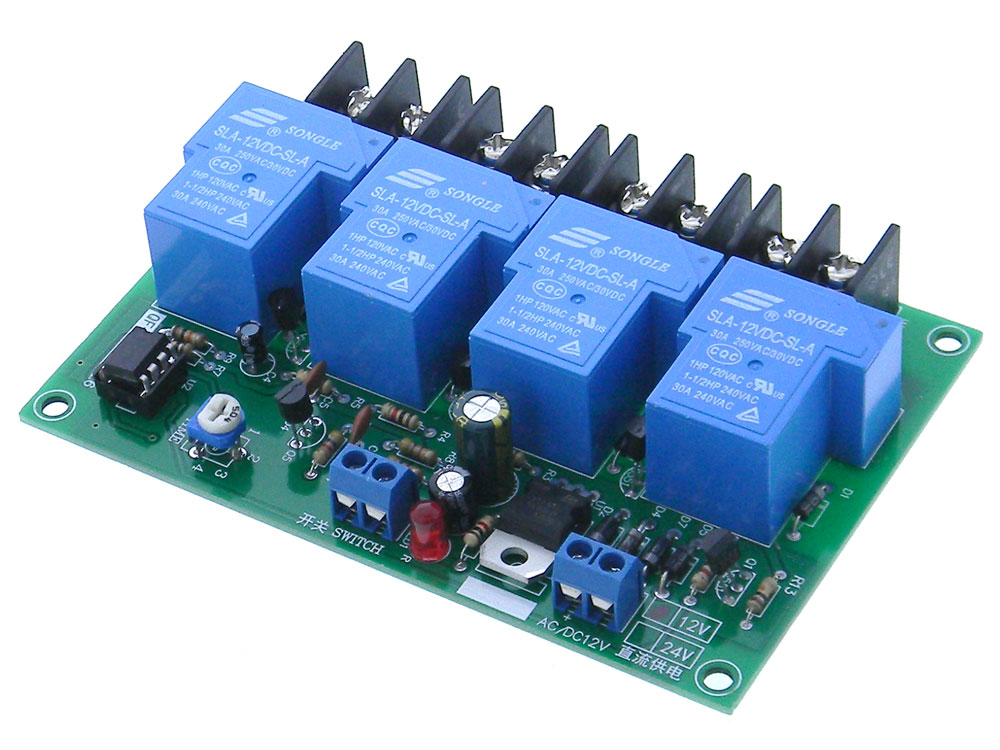

Triggered 4 channel sequencer. Please watch the video When triggered, unit will turn on 1st relay (no Delay) followed by the 2nd (Count Up 1-2-3-4). relay after the delay you set (~3-60Sec.) continues as long as trigger is present untill all relays are energized. After all are energized, Releasing trigger reverses the relay sequence (Count Down 4-3-2-1). Removing the trigger at any point in the sequence reverses sequence, reapplying will cause the count to resume at that point in the sequence.
Power: 10-15VAC/DC 12V Nominal @ ~400mA
Delay Range: ~3-60Sec.
Relay: 4xSPST
Contacts: SPST-NO 30A@250VAC/30VDC
Connections: Terminal Strips
L: 118mm (4-5/8") W: 80mm (3-1/8") H: 22mm (7/8") WT: .5
