12Vdc Low Voltage Battery Cutoff Switch


12Vdc Low Voltage Battery Cutoff Switch
Images/37621-large.jpg   California Proposition 65 Warning
Stock Number: 37621 MI
  Be the first to review this item
$5.95
$1.95
This item is discontinued & is not being restocked.


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

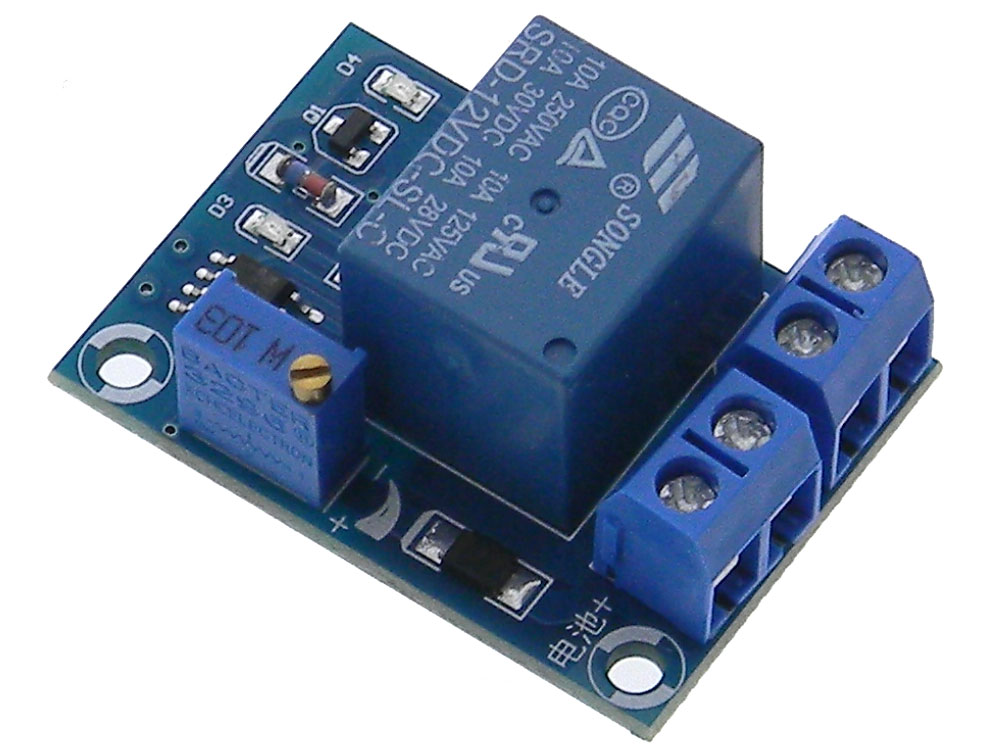

Under voltage cutout protection module for 12V batteries.
Not recommended to use with large loads. Unit does not have any hysteresis and can turn off and on rapidly with shift in load.
Relay is Energized in the Undervoltage condition.
De-energized in the No power or Normal Voltage states
Power LED
Under Voltage LED
Adjustable trip point set at factory for ~11.5Volts.
Suggested Max Load current: 5A
L: 1-5/8" W: 1-1/6" H: 3/4" WT: .05
