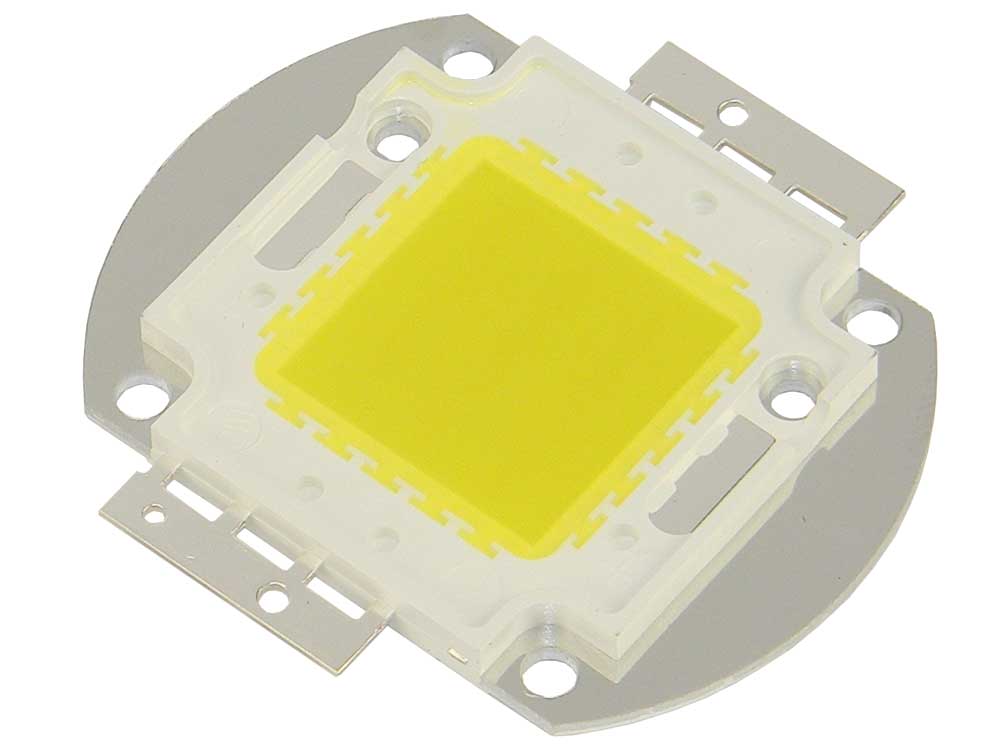

1600 Lumen, 20W, Super Bright Cool White LED


1600 Lumen, 20W, Super Bright Cool White LED
Stock Number: 31326 OP
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$7.95
$3.95
This item is discontinued & is not being restocked.


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

REQUIRES HEATSINKING & CURRENT LIMITING
(Case Temp. <45C max)
Super Bright, Cool White LEDs.
Lumens: 1800min
Color Temperature: 6000-6500 Color Temperature
Max. Reverse Voltage 50V.
View Angle: 160deg.
Forward Voltage Drop: 32-34 VDC
Forward Current: 700mA max.
ALUMINUM BASE SURFACE MOUNT PACKAGE
Dia: 57mm H: 4.5mm WT: .027

View PDF Data Sheet


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Bright, but died after 15 months
Used for a portable shop flood light. Was easy to solder and worked great. Very bright. Way better than a hot halogen bulb! I used it often, hundreds of hours over 15 months, but then it stopped working flashing after 10 minutes of use.
- Tom, NH

20W LEDs polarity
Watch out for the polarity markings on these. White -on-white, hard to see. Ambigously postioned relative to solder lugs. I hooked first two up rev polarity-no harm. Lots of light+lots of heat sinking needed.
- Alan, KS
