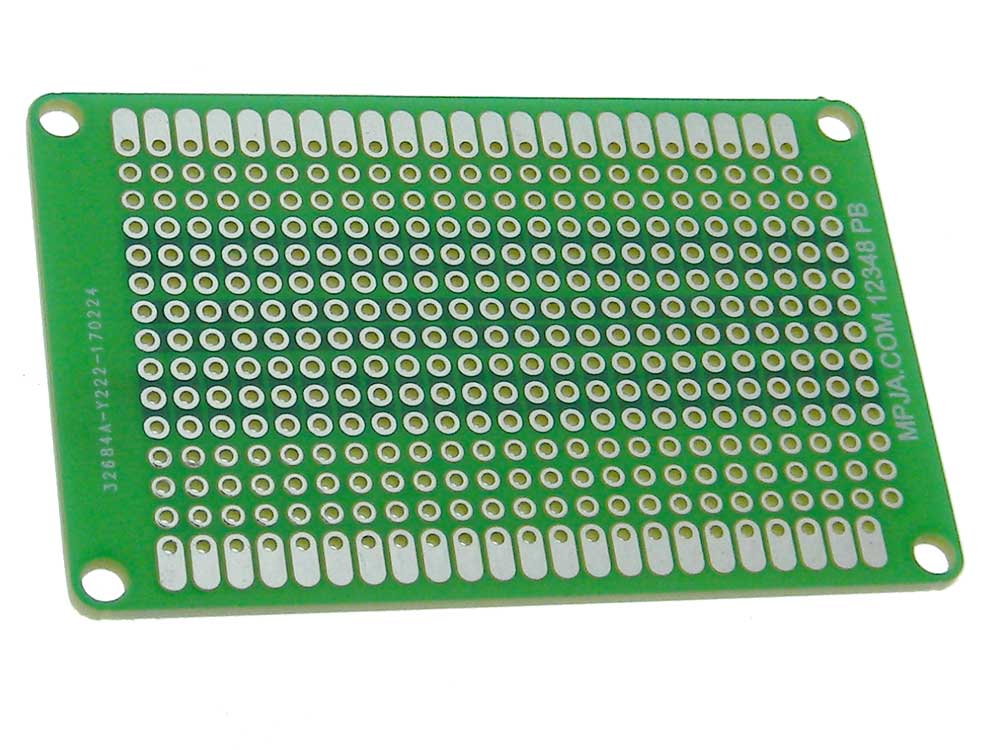

2-13/16" X 1-13/16" IC Proto Board Single Side


2-13/16
Images/12348-large.jpg Images/12348-1.jpg   California Proposition 65 Warning
Stock Number: 12348 PB
 Review Average:
 Number of Reviews: 4
 View Reviews | Review this item
$1.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

Single Sided .062" FR4 board
.1" pad spacing,
Tin plated copper pads.
Solder mask

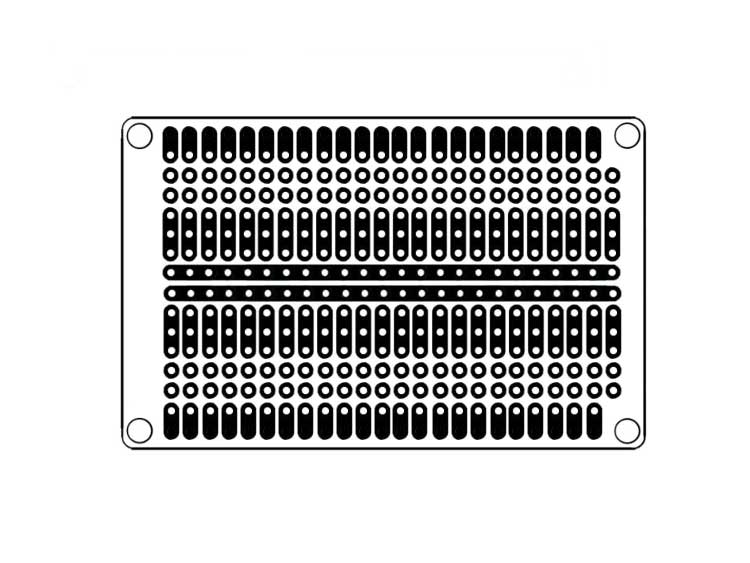

Small general purpose board for ICs. 2 buss strips down center. Other holes connected to allow connecting to IC lead holes. 417 total holes. Holds up to Three 14 or16 pin ICs.
L: 2-13/16" W: 1-13/16" WT: .02

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Tetrabromobisphenol A (TBBPA) which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
High Quality Board
These boards are high quality and have a nice pad layout with two common rows down the center making it very easy to distribute Vcc and Vdd where needed. It's hard to see them because of the heavy solder mask, but they are there!
- Bob Gunnels, IL

Hidden Features!
These are very well made. There actually are Buss Strips down the middle. Can't see them so they must be in an inside layer. If you Ohm it out, you will find the center two rows are indeed separate buss lines. There are also groups of three above and below the end of the buss rows that make for four sets of three connected holes. A neat and useful trick!
- Claude Hesselman, VA

Description Error
The photo displayed does not represent the description for the board. There are no buss strips on the board.
- David Chisholm, PA

Nice Proto Board
This board is very durable, it seems like it would last a very long time.
