240 W - 6V-30VDC Motor Reversing Control - Continous Mode


240 W - 6V-30VDC Motor Reversing Control - Continous Mode
Images/37940-large.jpg Images/37940-1.jpg   California Proposition 65 Warning
Stock Number: 37940 MD
  Be the first to review this item
$10.95


Availibilty: In Stock   Units: 10
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

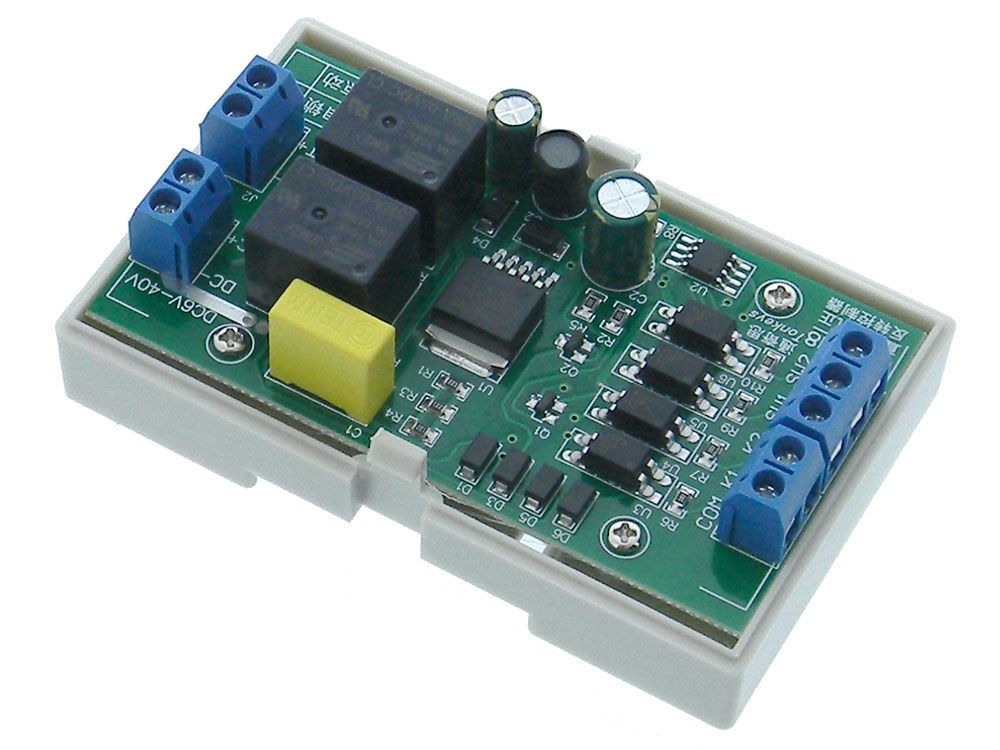

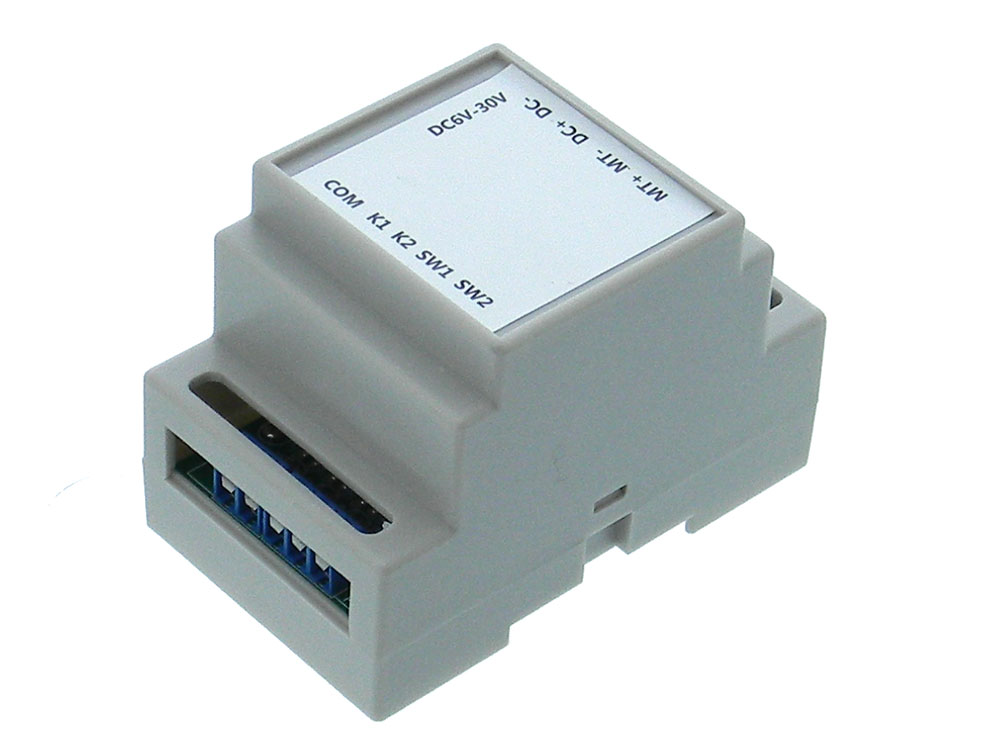

DC Motor Reversing Control board in a DIN Rail mount Case.
Mode: Normal - Motor starts and runs Continous whenever K1 or K2 Pushbutton switch signal is applied (Forward or Reverse). SW1 or SW2 will stop respective Forward/Reverse (useful input for Limit switches).
Opposite Direction Input will change the direction of rotation after ~.3sec.
VOLTAGE: 6-30VDC (12-24 recommened)
Output Voltage is Same as Input
CURRENT: 20A max (Surge)
POWER: 240Wmax (20A @ 12VDC/10A @ 24VDC)
Control Signals: Low level input signal (0V or GND)
Operating Temperature:-40 to 80°C
Humidity:10%~90%RH
L: 92mm (3-5/8") W: 54mm (2-1/8") H: 60mm (2-3/8")
WT: .2
