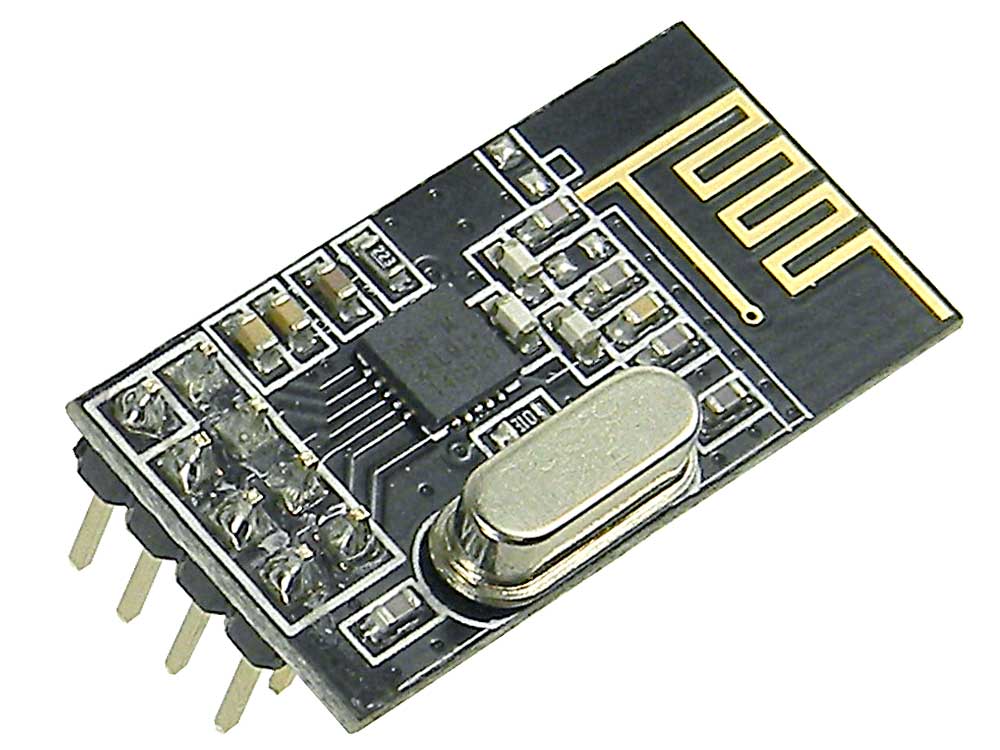

2.4GHz Wireless Data Transceiver Module for Arduino


2.4GHz Wireless Data Transceiver Module for Arduino
Images/31572-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 31572 MP
 Review Average:
 Number of Reviews: 3
 View Reviews | Review this item
$3.95

Special Pricing
 Buy 25  for $1.95 each


Availibilty: In Stock   Units: 57
Quantity



SHARE

     Email this to a friend

Detailed Description

2.4GHz Wireless Data Transceiver for Arduino Type Controllers
High speed, low power, 2.4GHz, radio data transceiver module. Based on the NRF24L01+ RF IC. It is capable of transmitting and receiving data at up to 2Mbps over 126 ISM band channels. Multiceiver design allows up to 6 channels. 3 level 8bit FIFO for both Tx. & Rx registers.8bit command word. Super low power in power Down mode (less than 1uA). Communicates up to 200 feet in open air, less in enclosed spaces. Interface between module and micro-controller is 4 wire SPI. Inputs are 5 volt tolerant, but supply voltage is 3.3 volts maximum. Can be interfaced to 5 volt systems with 3.3v regulators. Interconnect your world. Multiple uses in robotics, remote data collection, alarms, toys etc.
Helpful websites:
https://arduino-info.wikispaces.com/Nrf24l01-2.4ghz-howto
https://arduino-info.wikispaces.com/Nrf24l01-rf24-examples
https://arduino-info.wikispaces.com/Nrf24l01-mirf-examples
Power: 1.9 – 3.3VDC Max
Current: Standby: 26uA
TX Current: 11.3mA RX: Current 13.5mA
Air Data Rate: 250kbps, 1Mbps, 2Mbps selectable
Interface: 4-pin SPI (5V tolerant)
Frequency: 2.4GHz ISM Band – 126 programmable
channels
RF TX Power: Programmable 0, -6, -12 or –18dBm
Range 200ft Max open air line of sight
8 Pin (2X4) .1in Pitch Header for Power & Input
Requires a pair for minimum Operation
L: 1-3/16” W: 5/8” H: 1/2” WT: .01

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
NRF24L01 - Great little transceivers for the price
These units work very well, They are legitimate NRF chips. If you need more information on how to use these deivces, checkout... www.mysensors.org
- John S, CO

Here is a working link describing this module
The above links do not work. Here is a link to a discussion on the design and use of this module. https://lastminuteengineers.com/nrf24l01-arduino-wireless-communication/ I have not yet tried this module but have rated it 5 stars.
Keith

Good receiver
This is a good receiver for my alarm system in my house. WOuld recommend to anybody building an arduino security system.
