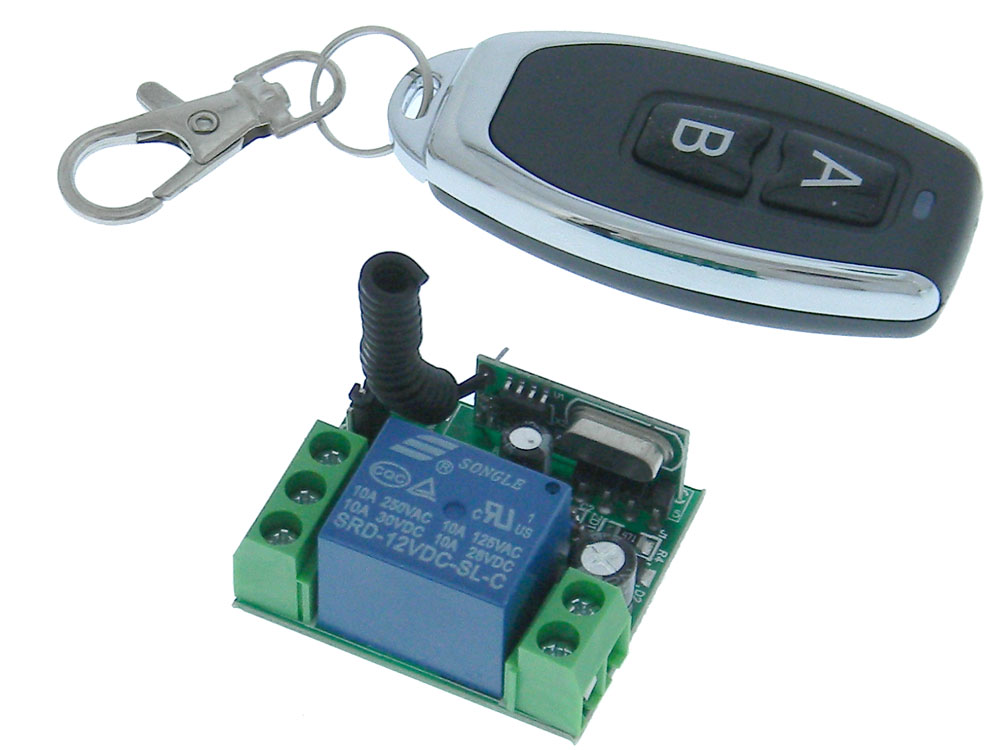

3 Mode Wireless Remote Control Relay - 1 Channel, 12V


3 Mode Wireless Remote Control Relay -  1 Channel, 12V
Stock Number: 38225 RL
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$8.95


Availibilty: In Stock   Units: 55
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Single Channel wireless remote control relay.
3 Jumper selectable Modes
1: Jog: Relay energized (ON) as long as Button Pressed.
2: Alternate Action: Press ON-Press OFF
3: Interlocked: Press 1 Button to Energize;(ON) Press Other Button to turn OFF
Key FOB Battery: CR2032 (Included)
Module Voltage: 12VDC
Idle Current: <10mA
Frequency: 433MHz
Temperature: -20º to +60ºC
Receiving Sensitivity: >-105dB
Relay: SPDT
Contacts: 10A@125/250VAC/30VDC
Extra/Replacement Key FOB: SEE 38226 MI
Module:
L: 1-3/8" W: 1-3/16" H: 5/8"
Key FOB Remote:
L: 2-3/8" W: 1-1/8" T: 1/2"
WT: .15


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Works good but instructions are wrong
This wireless remote control relay works good. Tested in another room approx. 50 feet away and it worked fine but the instructions are wrong. After the jumper cap is placed for the mode you want and the codes are cleared the instructions for mode two for example should read: "Press pairing button for two seconds and release. The LED lights. While LED is lit press and release button A on the remote. The LED blinks then stays on. Press and release button B on the remote. The LED blinks then turns off. Buttons A and B are now paired.
- Fred, TX
