3 Pin Test or Programming Clip, 2.54 pitch (0.1")

3 Pin Test or Programming Clip, 2.54 pitch (0.1
Stock Number: 38469 TE
Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.


Detailed Description

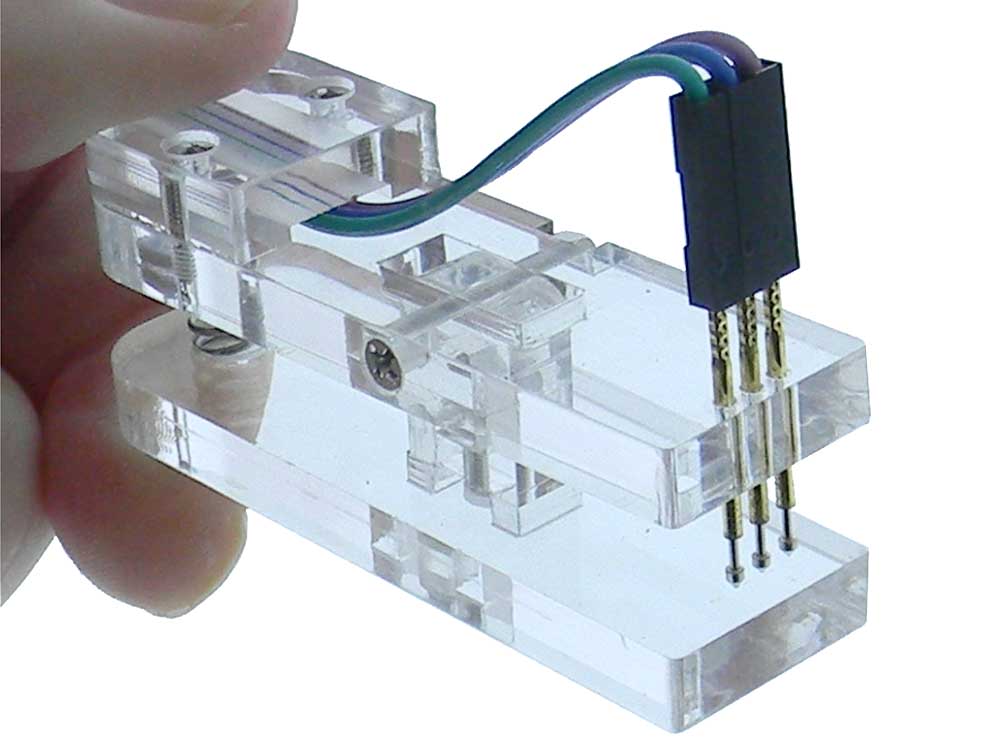

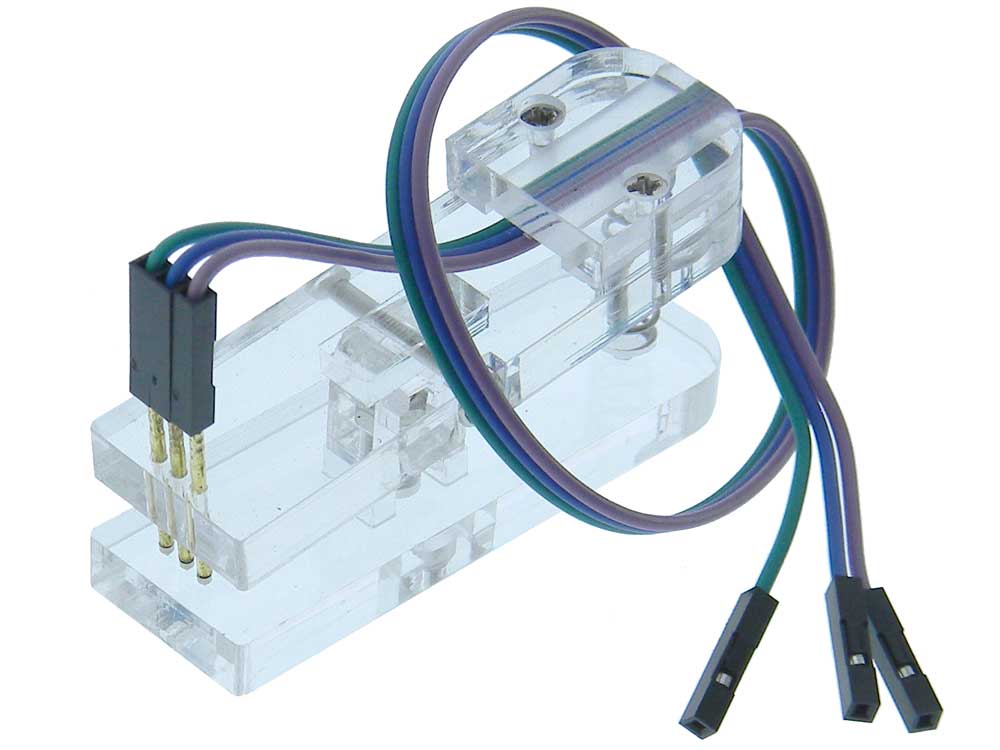

PC board clip for testing or Onboard Programming.

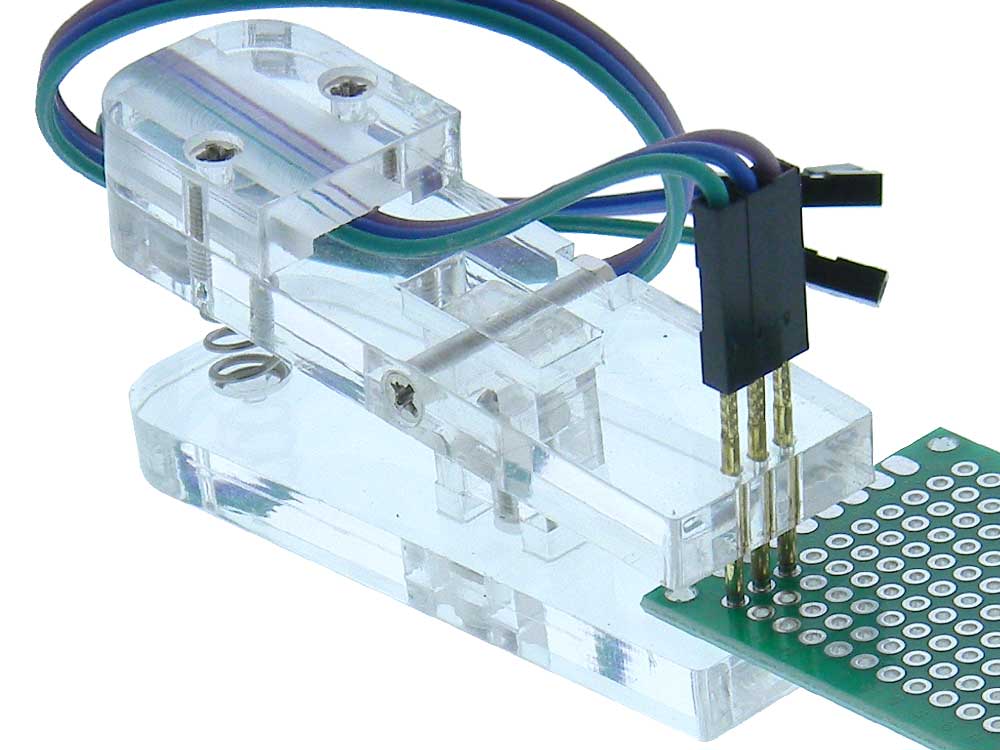

Spring loaded plastic "clothes Pin" type clamp to edge of PCB.
Spring loaded, gold lated, pointed probes.
3 Pin x Single Row (3x1)
Pitch: 2.54mm (0.1")
Connections: 20cm, Flat ribbon cable with header sockets.
Jaw Opening: ~7mm (~1/4")
Probe Compression Range: ~3mm
L: 65mm (2-1/2") W: 20mm (13/16") H: 44mm (1-5/8") WT: .06
