4 Pin Test or Programming Clip, 2.54 pitch (0.1")


4 Pin Test or Programming Clip, 2.54 pitch (0.1
Images/38470-large.jpg Images/38470-1.jpg Images/38470-2.jpg   California Proposition 65 Warning
Stock Number: 38470 TE
  Be the first to review this item
$8.95


Availibilty: In Stock   Units: 37
Quantity



SHARE

     Email this to a friend

Detailed Description

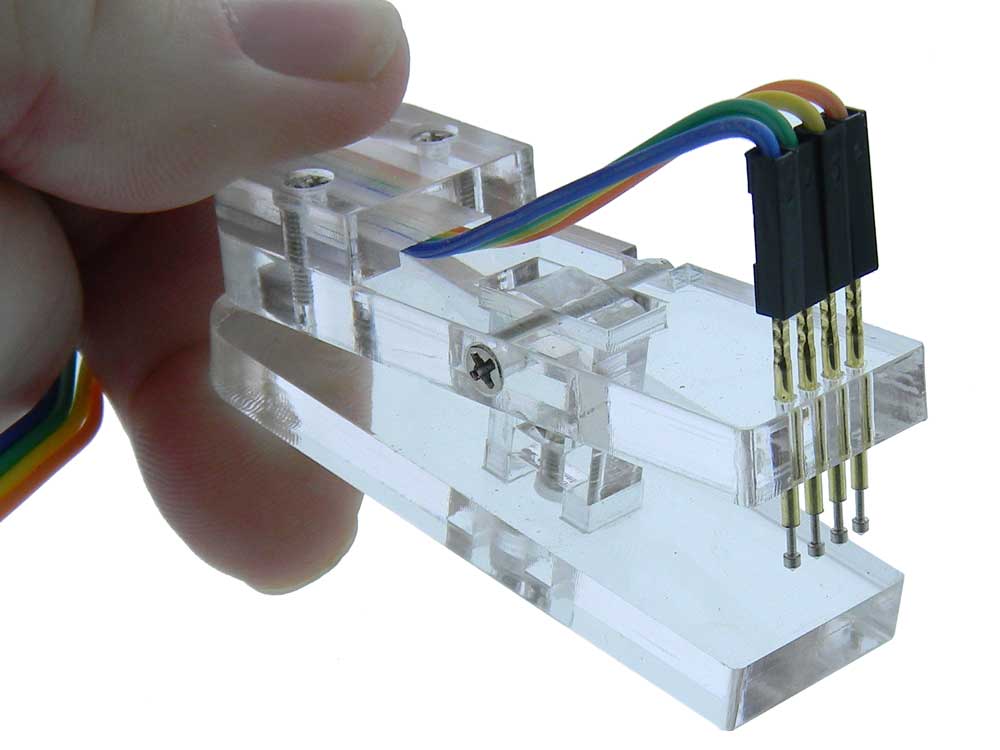

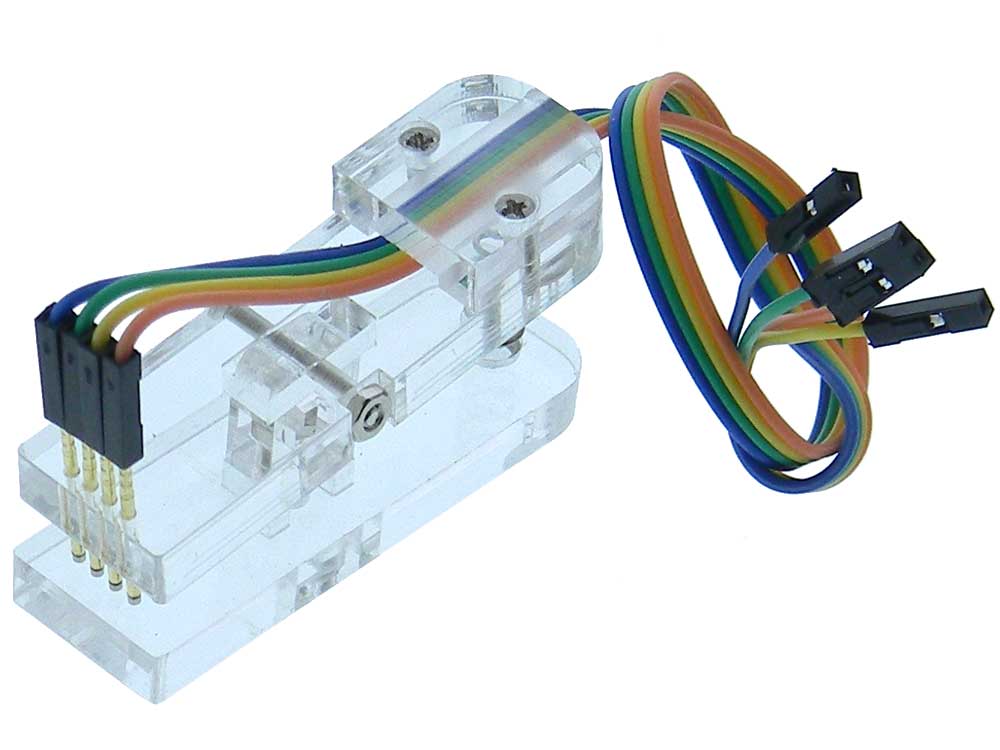

PC board clip for testing or Onboard Programming.

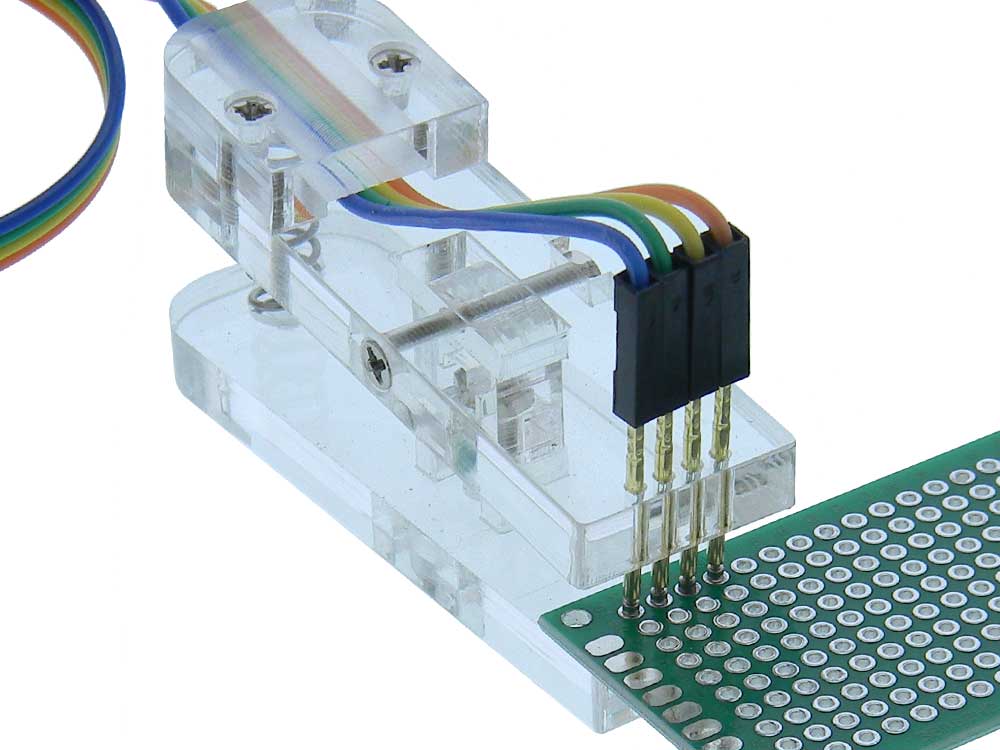

Spring loaded plastic "clothes Pin" type clamp to edge of PCB.
Spring loaded, gold lated, pointed probes.
4 Pin x Single Row (4x1)
Pitch: 2.54mm (0.1")
Connections: 20cm, Flat ribbon cable with header sockets.
Jaw Opening: ~7mm (~1/4")
Probe Compression Range: ~3mm
L: 65mm (2-1/2") W: 20mm (13/16") H: 44mm (1-5/8") WT: .06

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
