5 Pin Mating 5.08mm Connectors with Screw Lock & Plate


5 Pin Mating 5.08mm Connectors with Screw Lock & Plate
Images/37643-large.jpg Images/37643-1.jpg Images/37643-2.jpg   California Proposition 65 Warning
Stock Number: 37643 PL
  Be the first to review this item
$2.45


Availibilty: In Stock   Units: 14
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

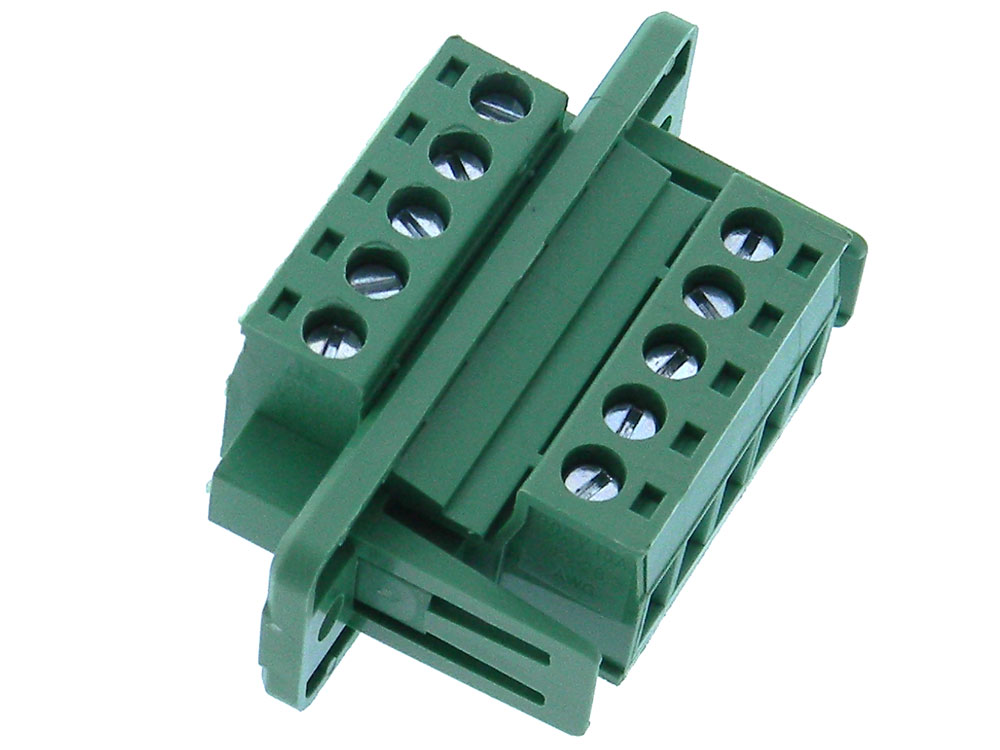

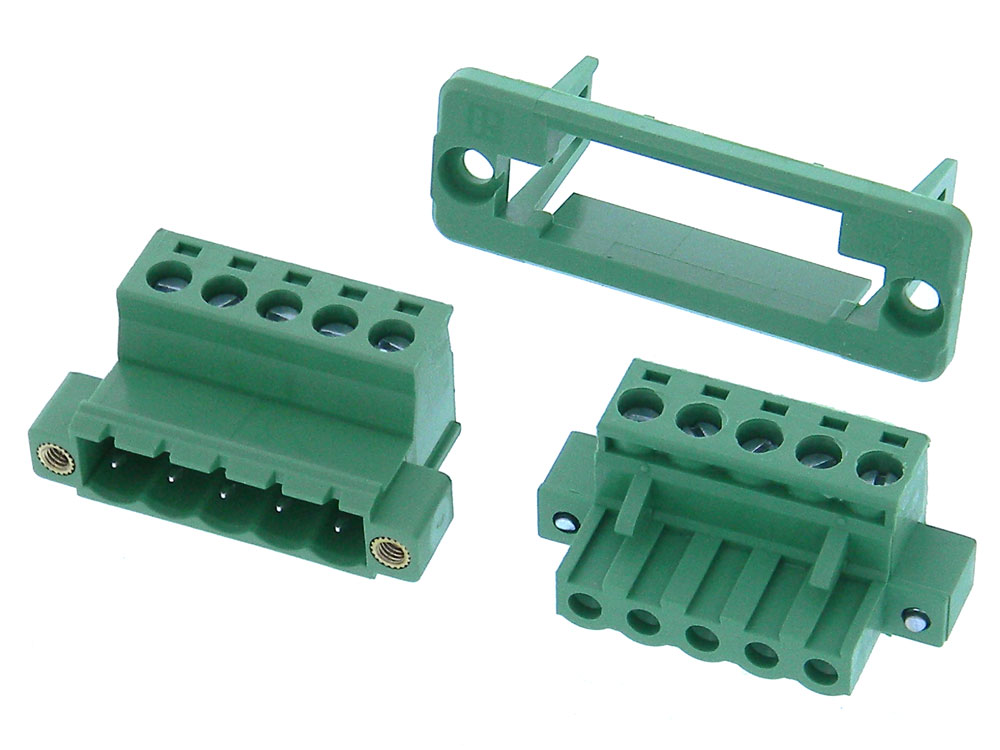

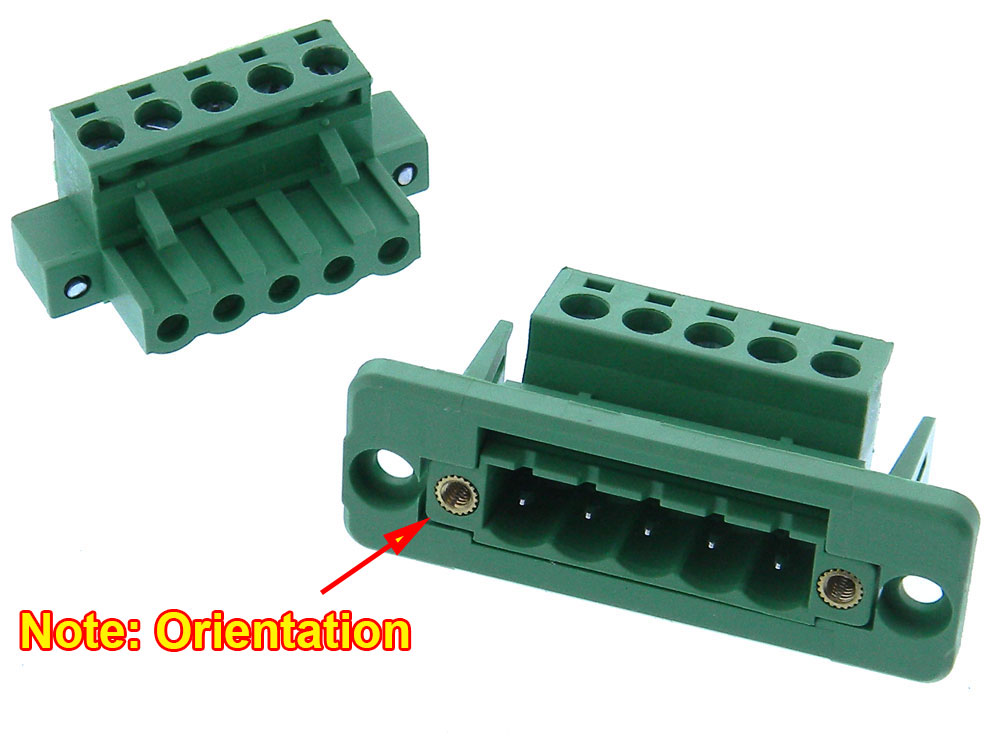

5 pin Mating screw terminal wire/cable Plug, Socket and Panel Mount Socket Plate.
Screw Clamp wire terminal connections.
Pitch: 5.08mm C/C.
Wire: 12-28AWG
Rated:Voltage: 300V/Current: 15A
Temperature: -40° to 105°C
Cutout: 37.1mm x13mm
WT: .04
