500 W - 12VDC Motor Reversing Control - Continuous Mode


500 W - 12VDC Motor Reversing Control - Continuous Mode
Images/37768-large.jpg Images/37768-1.jpg   California Proposition 65 Warning
Stock Number: 37768 MD
  Be the first to review this item
$19.95


Availibilty: In Stock   Units: 12
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

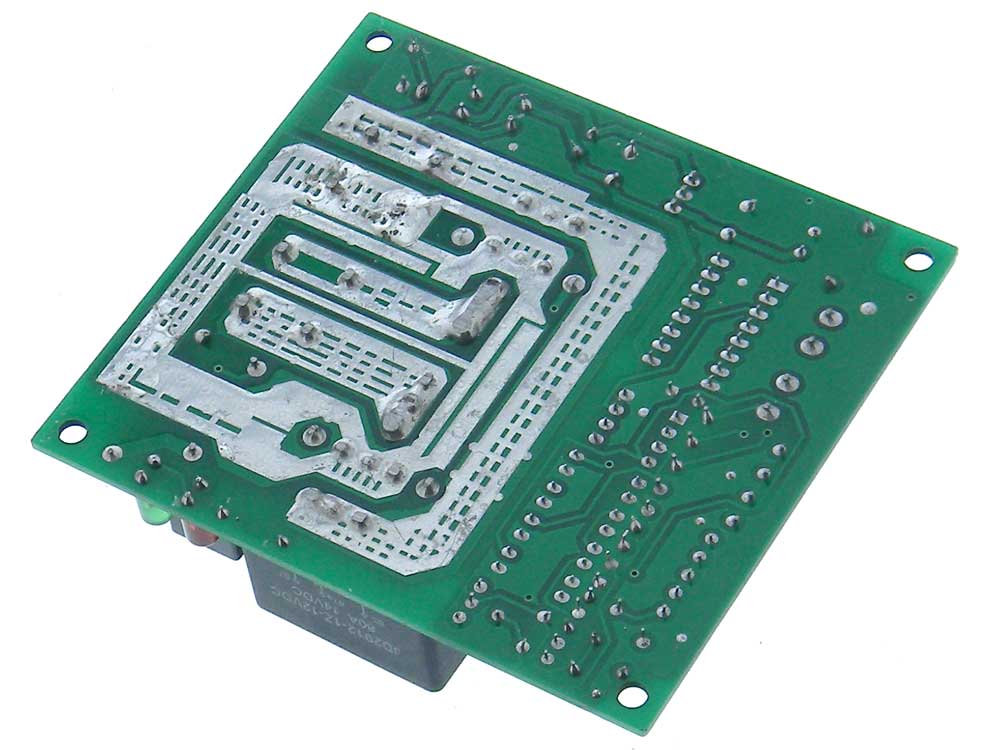

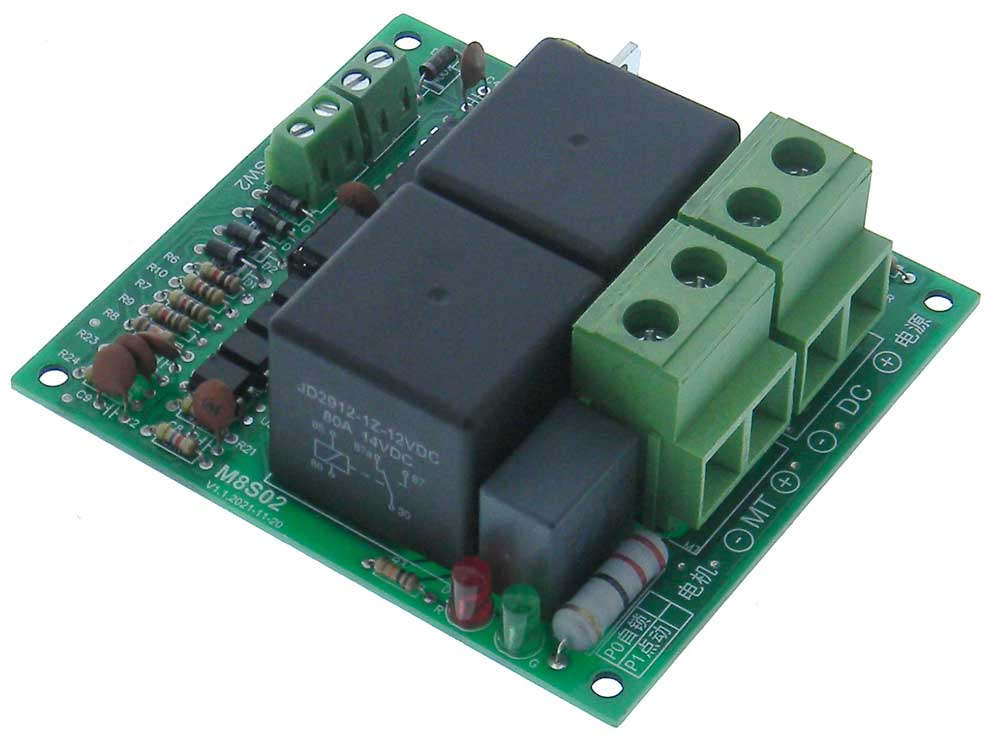

Reversing Control board for DC Motors.
Mode: Continous - Motor starts and runs Continuous whenever K1 or K2 Pushbutton switch signal is applied (Forward or Reverse). SW1 or SW2 will stop respective Forward/Reverse (useful input for Limit switches).
Opposite Direction Input will change the direction of rotation after ~.3sec.
VOLTAGE: 12VDC
CURRENT: 80A max (Surge)
POWER: 500Wmax (40A)
Control Signals: Low level input signal (0V or GND)
Operating Temperature:-40 to 80°C
Humidity:10%~90%RH
L: 90mm (3-1/2") W: 82mm (3-1/4") H: 34mm (1-3/8")
WT: .35
