500mm Linear Guide Rail Assembly Manual Adjust


500mm Linear Guide Rail Assembly Manual Adjust
Images/33996-large.jpg Images/33996-1.jpg Images/33996-2.jpg Images/33996-3.jpg   California Proposition 65 Warning
Stock Number: 33996 MI
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$119.95


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

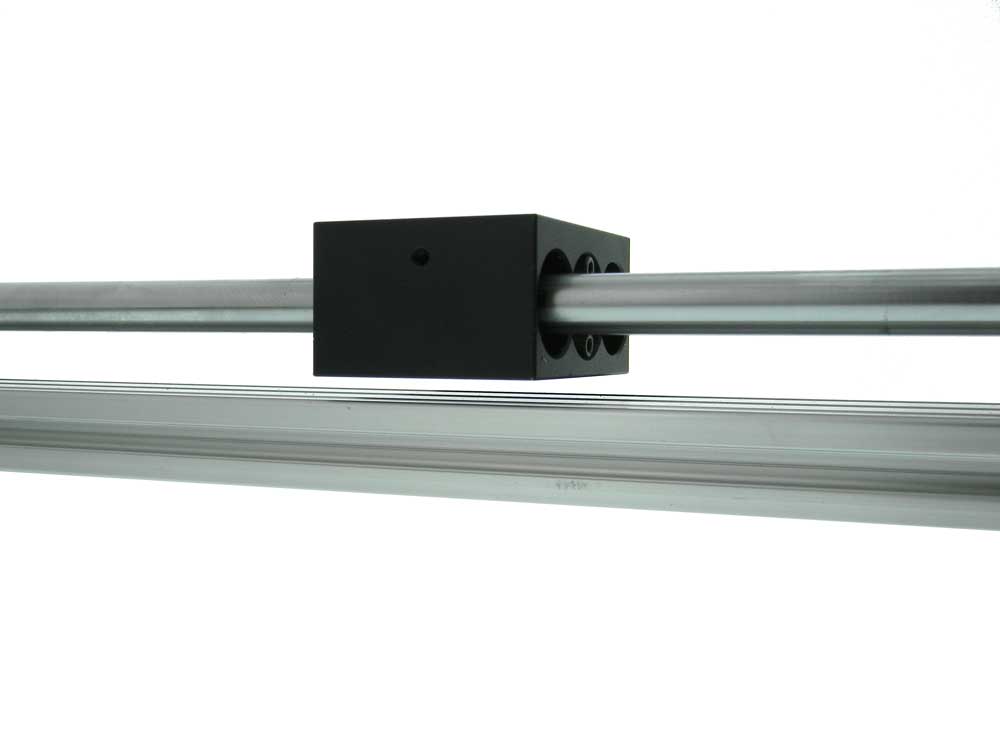

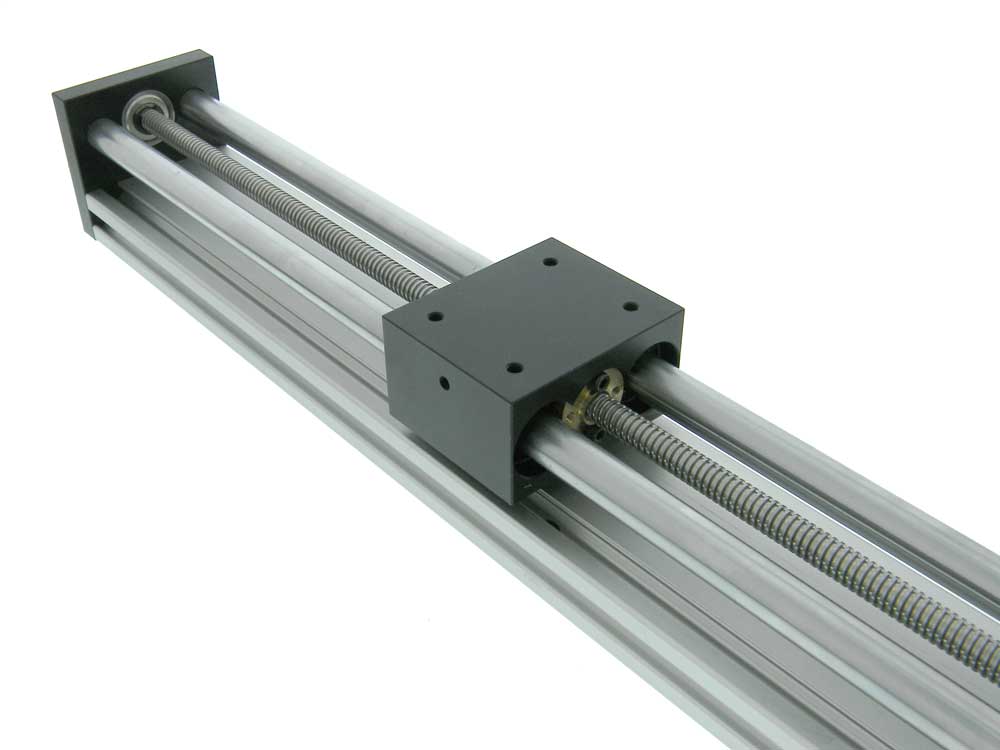

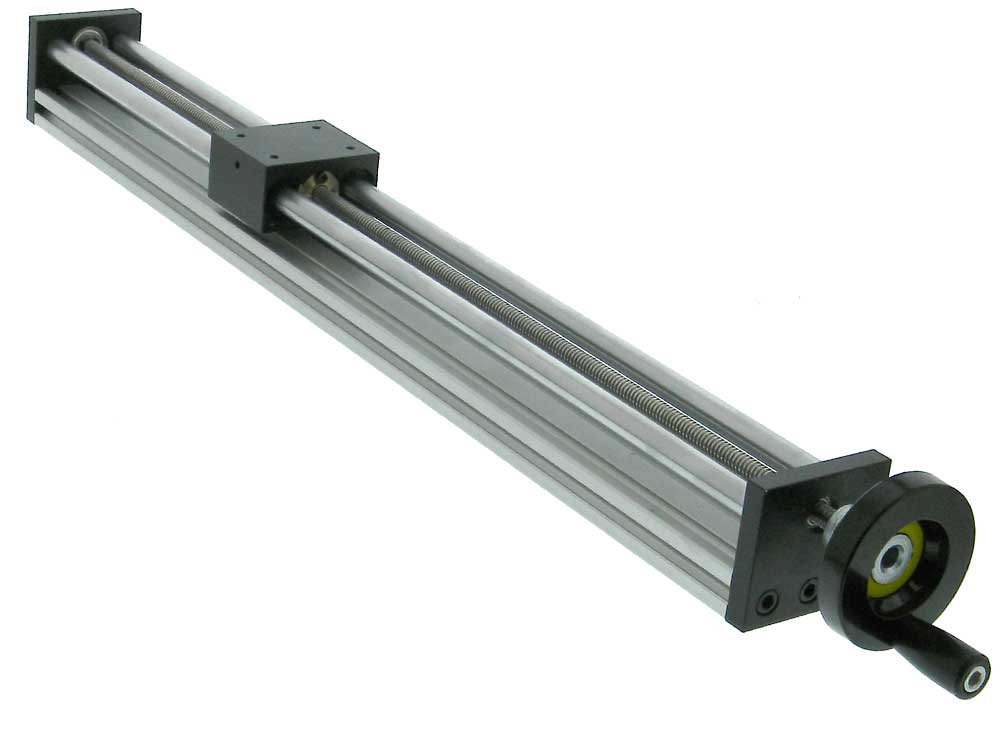

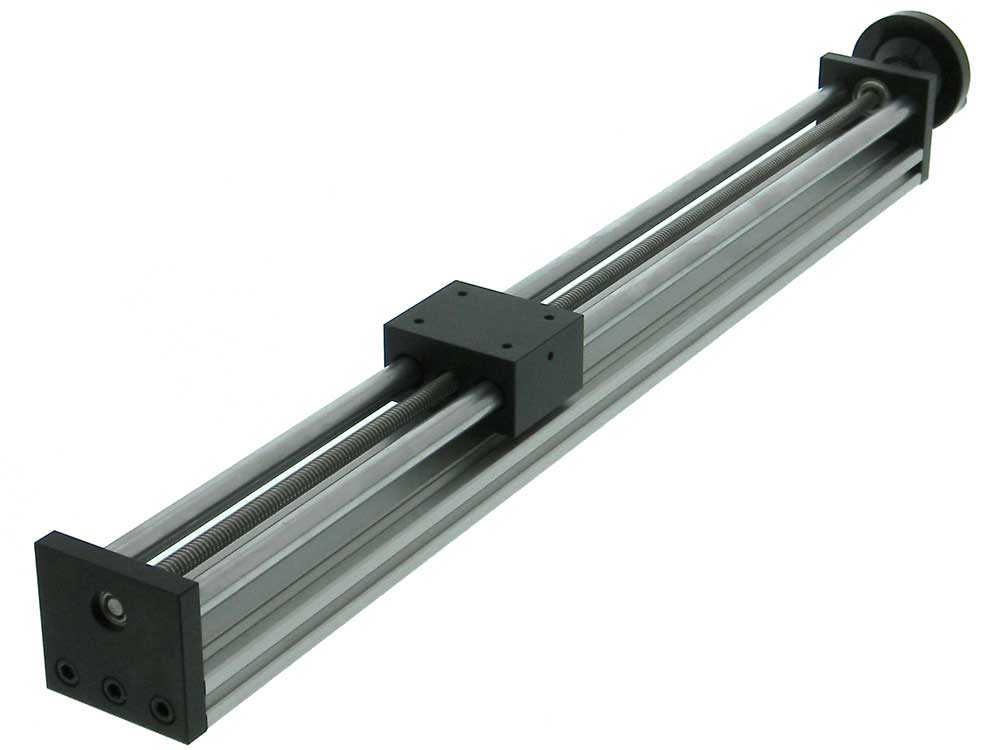

Linear leadscrew slide assembly generally used for the “X/Y” axis in engravers, CNC machines or 3D Printers.
Features:
Dual Steel glide rails, Aluminum mounting rail & end plates.
Effective Travel Length: ~500mm
Leadscrew: 8mm Dia. T8X2-1 Start, 2mm lead
Ball Bearing support
Aluminum Slide plate 60X50mm
4 M4-0.7 tapped holes for Attaching work plate
Ratio: 1 Rev = 2mm slide movement
L: 26” W: 2-7/16” H: 2-3/4” WT: 5.5

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Very easy to adjust
This mount adjusts very easily, I was afraid the manual would give me trouble, but everything slides out smooth.
