8 Channel MG995-SG90 Servo Debug-Test Board


8 Channel MG995-SG90 Servo Debug-Test Board
Images/38218-large.jpg Images/38218-1.jpg Images/38218-2.jpg Images/38218-3.jpg   California Proposition 65 Warning
Stock Number: 38218 MI
  Be the first to review this item
$29.95


Availibilty: In Stock   Units: 11
Quantity



SHARE

     Email this to a friend

Detailed Description

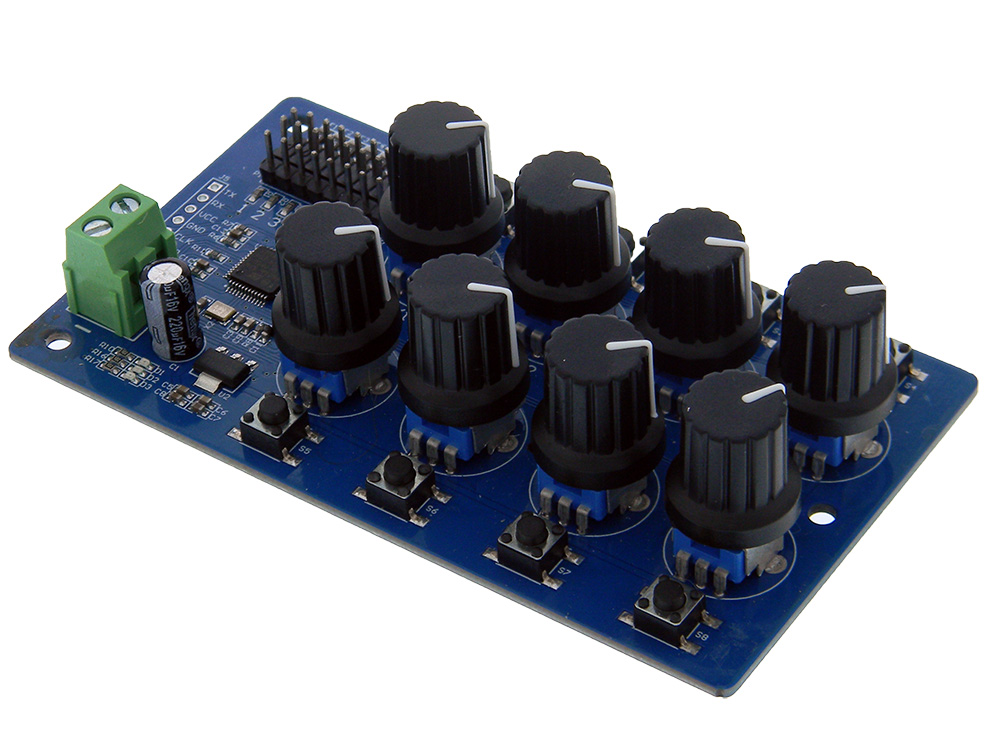

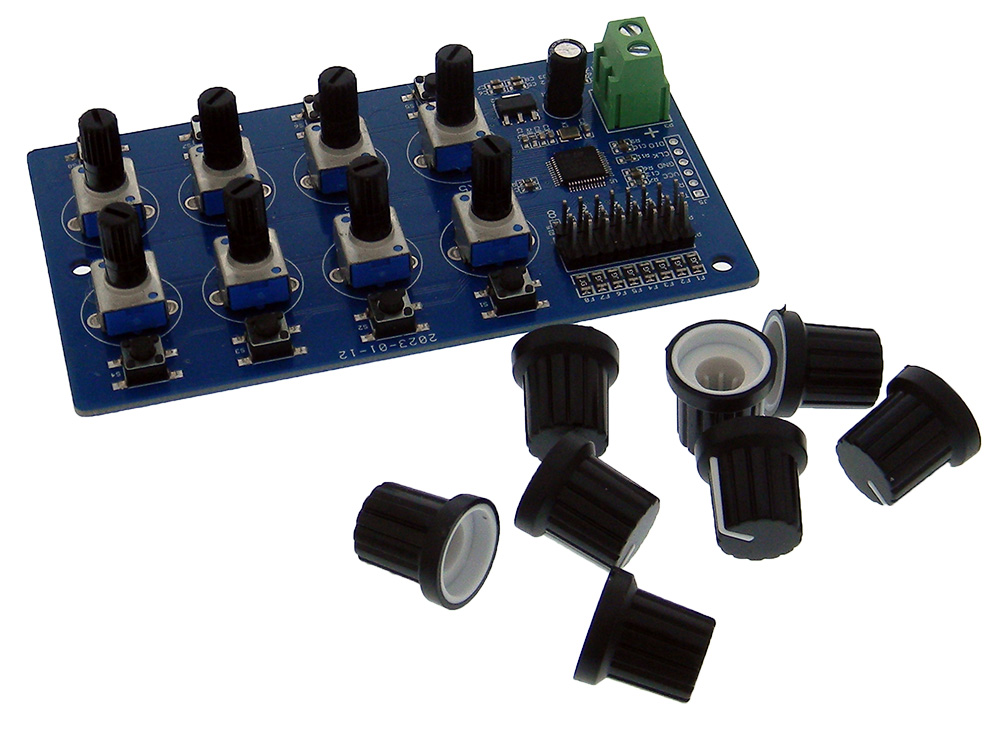

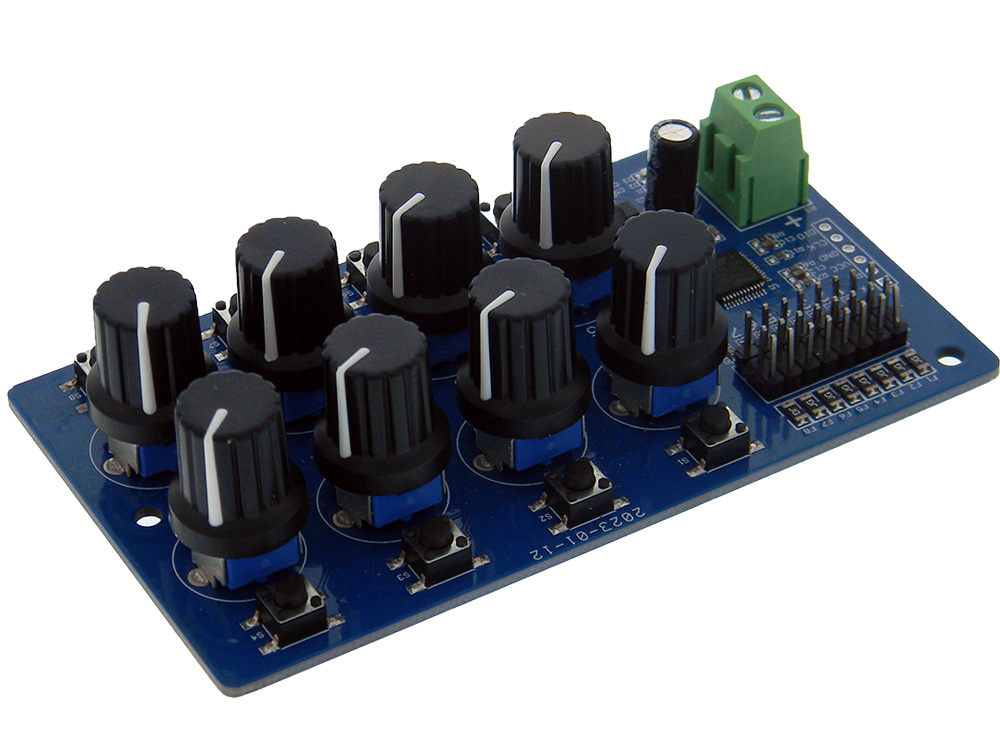

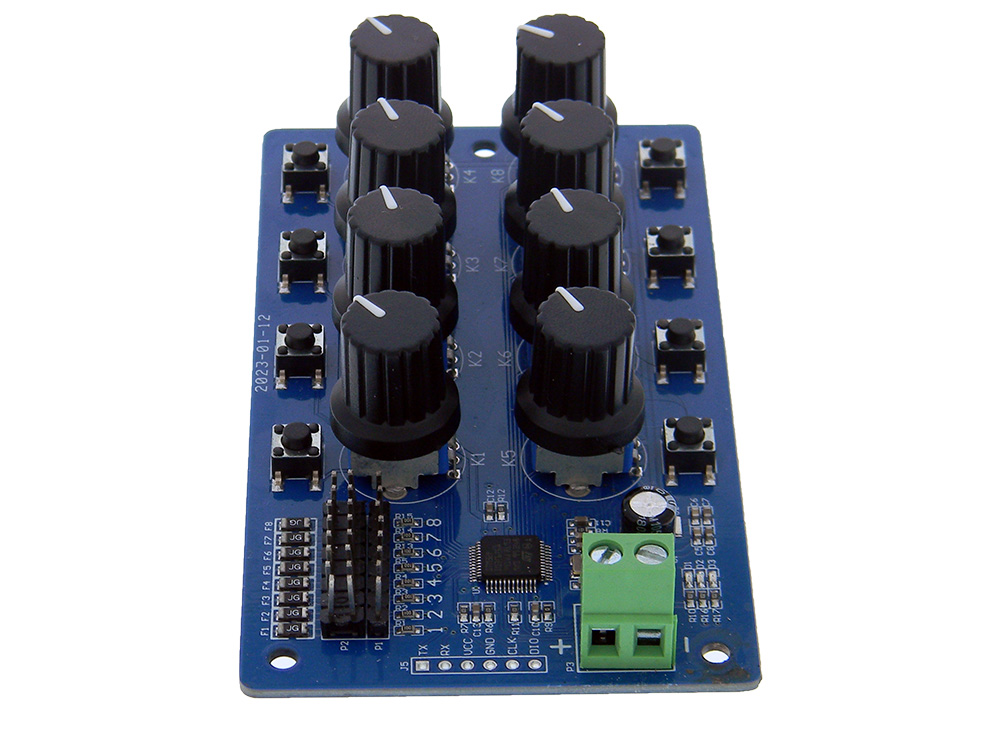

Test board allows for the testing & control of up to 8 RC servos. Supports Huisheng, Futaba MG995 SG90 and other 5V servos.
Channels: 8
Control period: 20ms
Pulse Width: 0.5-2.5ms
Control Accurcy: 0.09°
Mode: Button Switch
Manual: Adjustment Knob controls motion.
Auto: Centers the Servo
LED Indicators for Power, Manual & Center
Power Supply Range: 5-9V (Use the voltage rating of the servo.)
Each channel has self-recovery fuse to prevent burn out
Connections:
Power: Terminal Strip
Servos: 3 Pin 0.1" (2.54mm) Pitch header matching most servos.
L: 100mm (4-1/16" W: 55mm (2-1/4") H: 28mm (1-1/8") WT: .1
