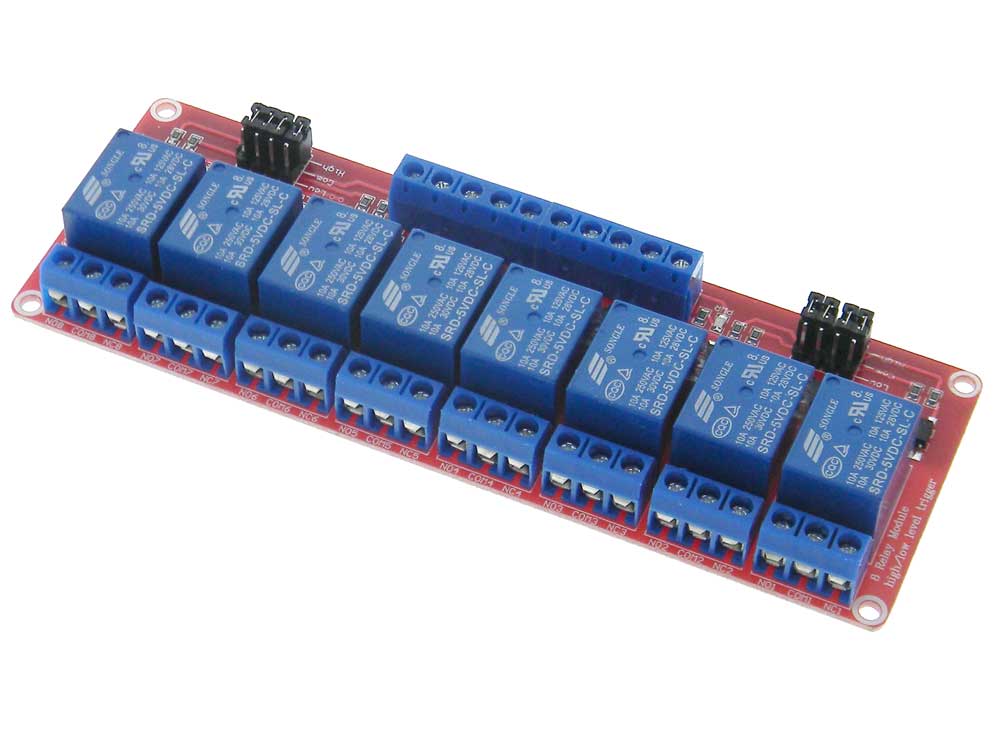

8 Channel SPDT Relay Board, Isolated 5V


8 Channel SPDT Relay Board, Isolated 5V
Images/35686-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 35686 MP
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$10.95


Availibilty: In Stock   Units: 5
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Opto-isolated 8 channel relay board designed to be driven by an Arduino or other microcontrollers.
LED indicatorsfor power & each input.
Board inputs are Opto isolated with a common Ground
Jumper select HIGH or LOW Trigger for each Relay
Power:5VDC (Relays)
Trigger: 5-15VDC <20mA (Each)
Connections: Trigger Select 0.1in. pitch header for each relay.
Terminal Strip for Power and Trigger Inputs
Terminal Strip for Relay Contacts
Contacts: SPDT 10A @ 28VDC,30VDC,125VAC,250VAC
Coil(s): ~70 Ohm/72mA each @ 5V
L: 5-5/8" W: 2" H: 3/4" WT: .25

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
8 channel relay board
The 8 channel board was used to charge several batteries one at a time with the use of a pic micro controller. It has been running almost a year with no faults.
- Albert Kirschman, NJ
