9 Function 100A Battery SOC / Discharge Tester


9 Function 100A Battery SOC / Discharge Tester
Images/37211-large.jpg Images/37211-1.jpg   California Proposition 65 Warning
Stock Number: 37211 ME
  Be the first to review this item

Did we sell out of a part and you want to buy more? You can possible buy directly from our Overseas Supplier. Some restrictions apply: general rule $50 per line item and a minimum $100 per order.

You can contact our source at:
Supplier: Aqua Jiang - aquajiang1@outlook.com

In your email, your Subject needs to be MPJA Customer and reference the MPJA stock number and quantity required. They will get back to you with pricing, lead time and shipping cost.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

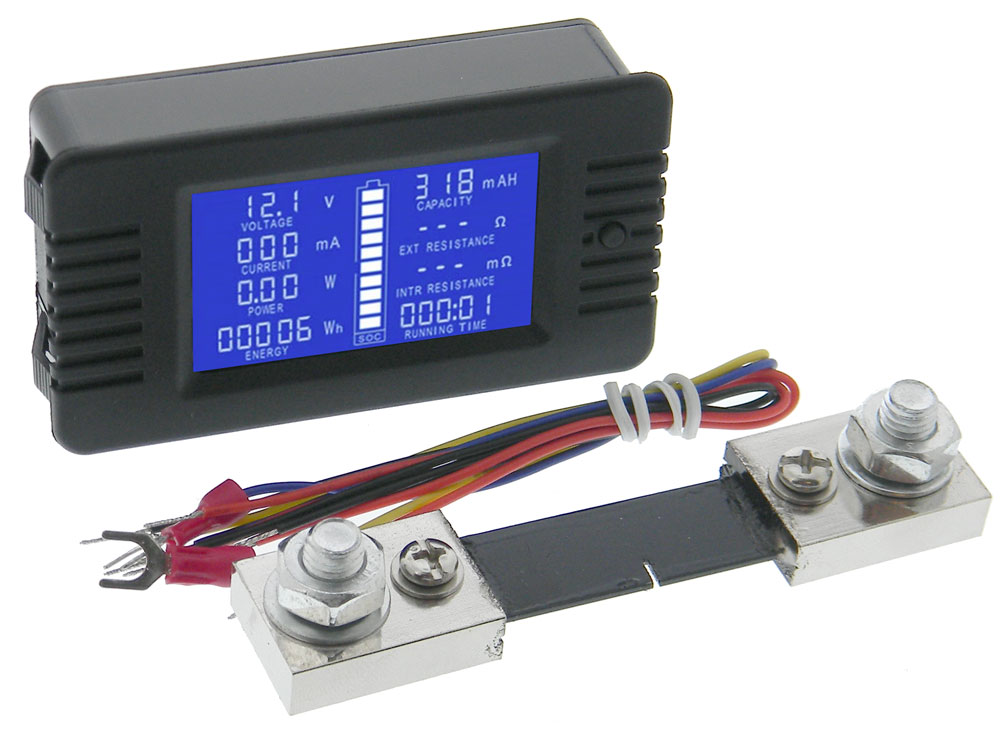

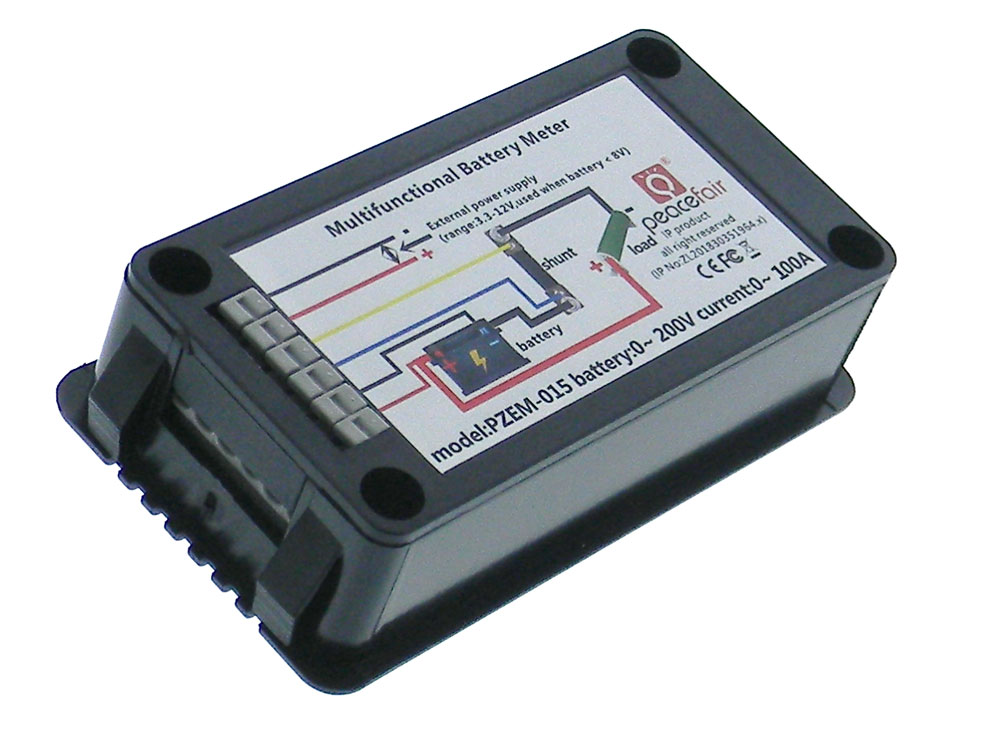

9 Function Back-lit, Snap-in LCD panel Battery Tester. Test battery voltage, discharge current, discharge force, discharge resistance, internal resistance, capacity, discharge power, power consumption and run time.
Power Input Voltage: 3.3-12VDC Independent Power
When test Battery is <8V
Test Input Voltage: 0.05-200VDC
Accuracy: +-1%
Volts Resolution:
.<10V : 10mV
<100V: 100mV
>100V: 1volt
Current Input: .02-100A
Current Resolution:
<1A: 1mA
<10A : 10mA
<100A: 100mA
>100A: 1Amp
3Watts: 0.2-60KWmax
Watt Resolution: Minimum Rate: 0.01W
<10W : 10mW
<100W: 100mW
<1000W: 1W
<10000W: 10W
>10000W: 100W
Energy Used: 0-9999KWh
<1KWh : 1Wh
<10KWh: 10Wh
<100KW: 100Wh
<1000KW: 1KWh
Energy Accrues unless you Reset
Impedance: 0-1000Ohms
<100ohms: 0.1ohm
>100ohms: 1ohm
Internal Resistance: 0-999mOhm
Resolution: 1mOhm
Capacity: 1mAH-1000AH
<1AH: 1mAH
<10AH: 10mAH
<100AH: 100mAH
<1000AH: 1AH
SOC (State of Charge)
(This is Calculated Based on Settings you enter)
10 Segment Battery Symbol
Each Segment=10%
Run Time:
0-999Hr.
0:00:00-999:59:59
Does Not Accumulate when Load =0
Cutout: 87mm X 47mm
Shunt: 100A/75mV
L: 4-1/8" W: 7/8" H: 7/8"
W: 3-9/16" H: 1-15/16"" D: 15/16” WT: .55
