Adjustable 1.5-36V DC/DC Buck Converter


Adjustable 1.5-36V DC/DC Buck Converter

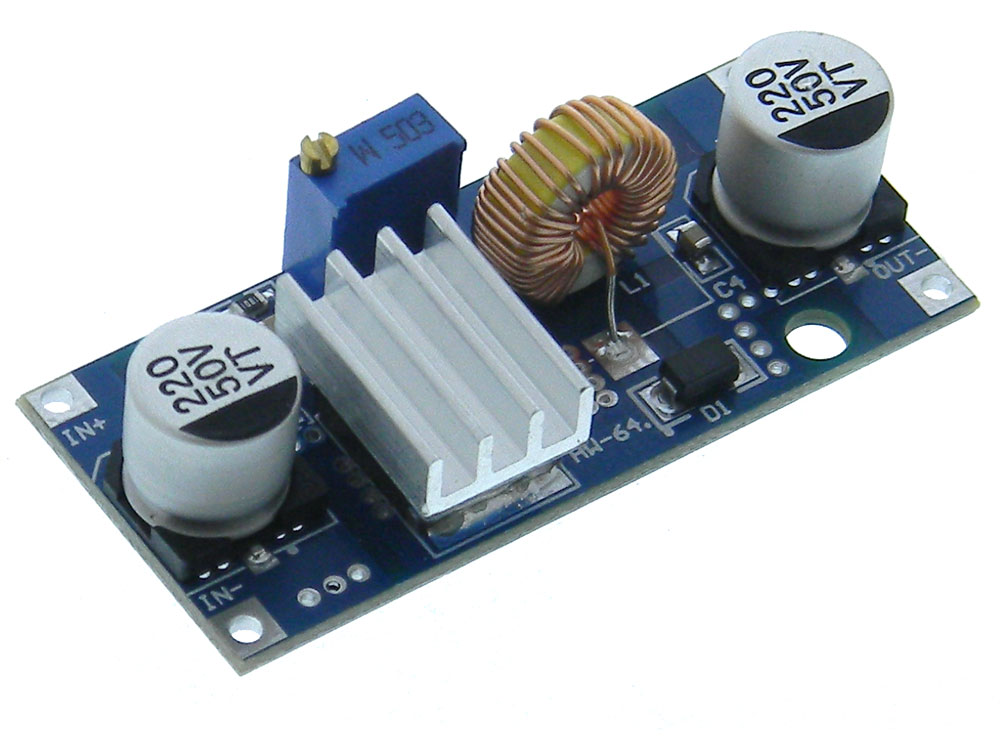

Images/38209-large.jpg   California Proposition 65 Warning
Stock Number: 38209 PS
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$2.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Short circuit protected, Non-isolated step-down module (Buck) converter using the XL4015 Regulator
Input Voltage: 4-36V (38Vmax)
Output Voltage: 1.25-36V
Output Current: 0-4.5A (5Max - Power Limited)
Output Power: < 75W, (Use heat sink if it exceeds 50W)
NOTE: Heatsink Supplied BUT Not Attached
Working Temperature: -40~+85° C
Switching Frequency: 180KHz
Efficiency:~96%
Load regulation: ~0.8%
LED Power Indicator
Over-temperature protected.
Solder Terminals
L: 54mm (~2") W: 23mm (15/16") H: 18mm (9/16") WT: .02

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Nice little module for local power
I have bought several of these to provide local power from a primary power supply. I'm using them to provide 5VDC and 10VDC to power my CNC router circuitry. They work great.
