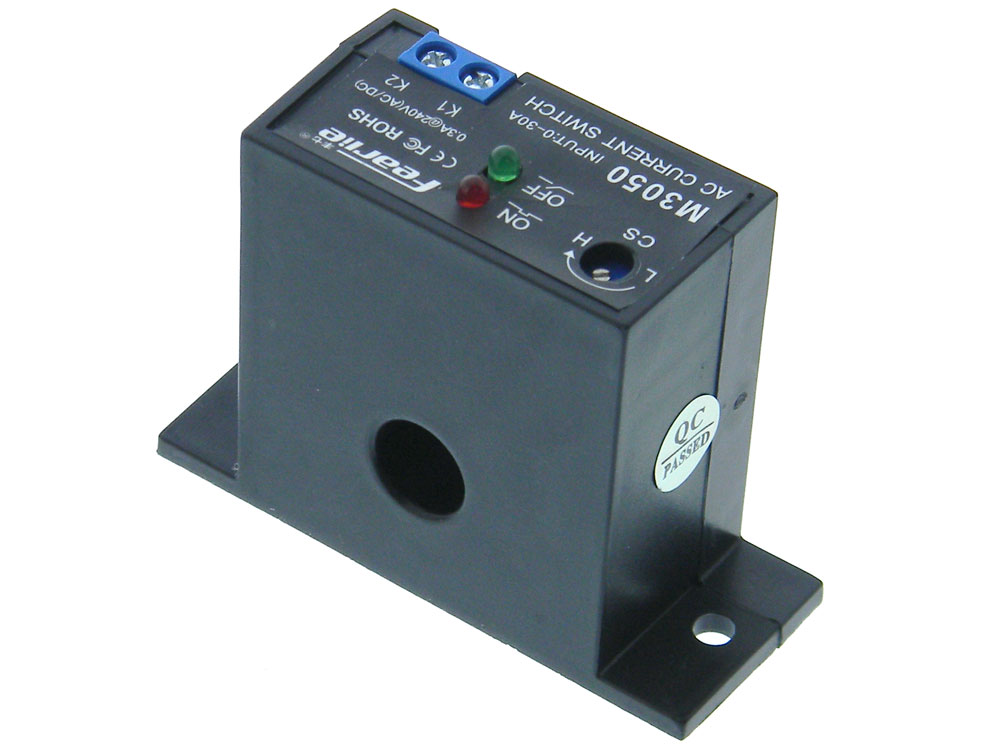

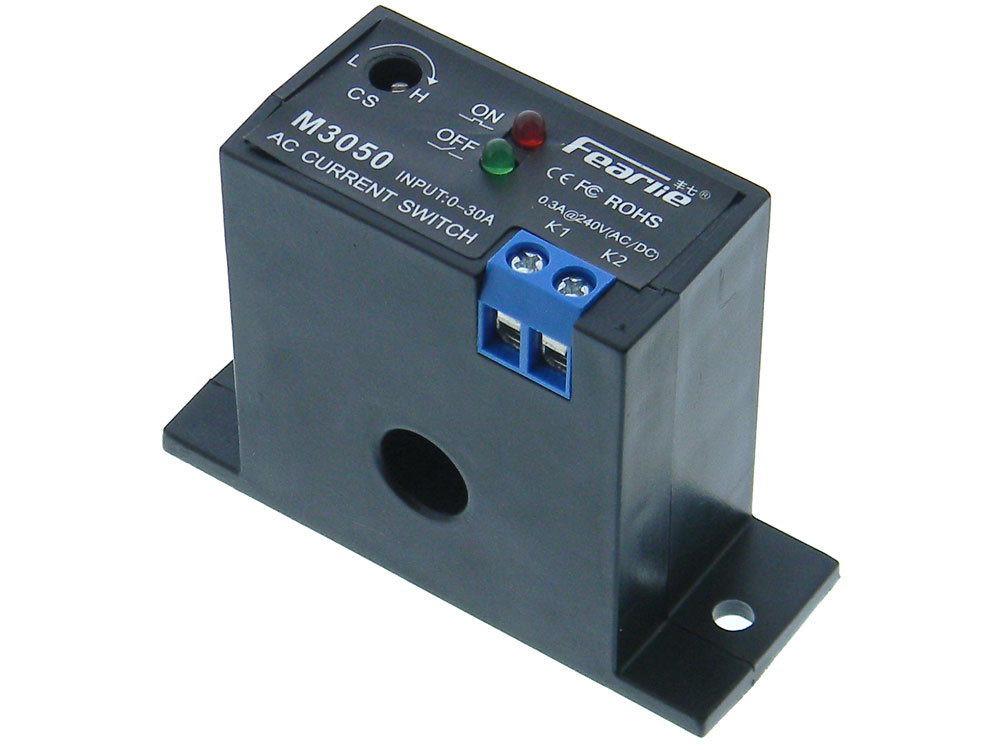

Adjustable AC Overcurrent Alarm Sensor - .3 - 30A SPST-NO


Adjustable AC Overcurrent Alarm Sensor - .3 - 30A SPST-NO
Stock Number: 38163 MI
  Be the first to review this item
$13.95


Availibilty: In Stock   Units: 13
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Non contact, Adjustable Overcurrent Sensor for AC Loads.
Normally Open: Closes with Overcurrent
Flange mount, Sensor has Thru Hole input with terminal strip for sensor Output.
Sense Range: 0.3-30A
Output Contact: SPST-NO
Closes upon Overcurrent
Rated: 0.3A / 240VAC/DC max
Sensor Hole Dia: 9.5mm
LEDs For Status Indication
CE/RoHS
W: 65mm (2-9/16") T: 25mm (1") H: 47mm (1-13/16") WT: .14
