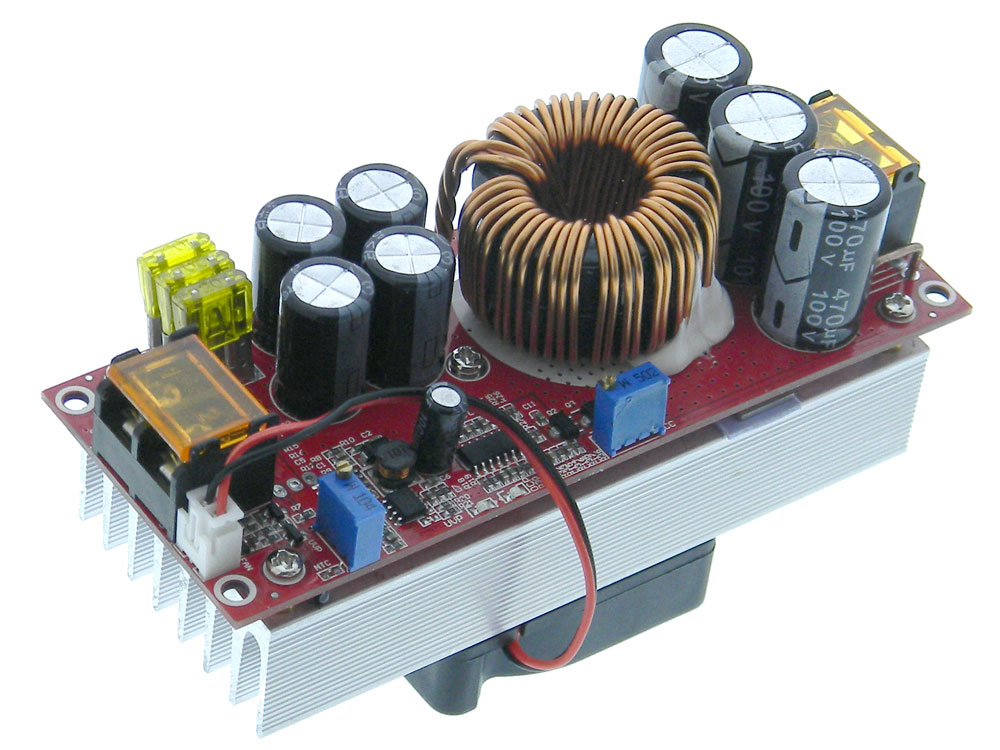

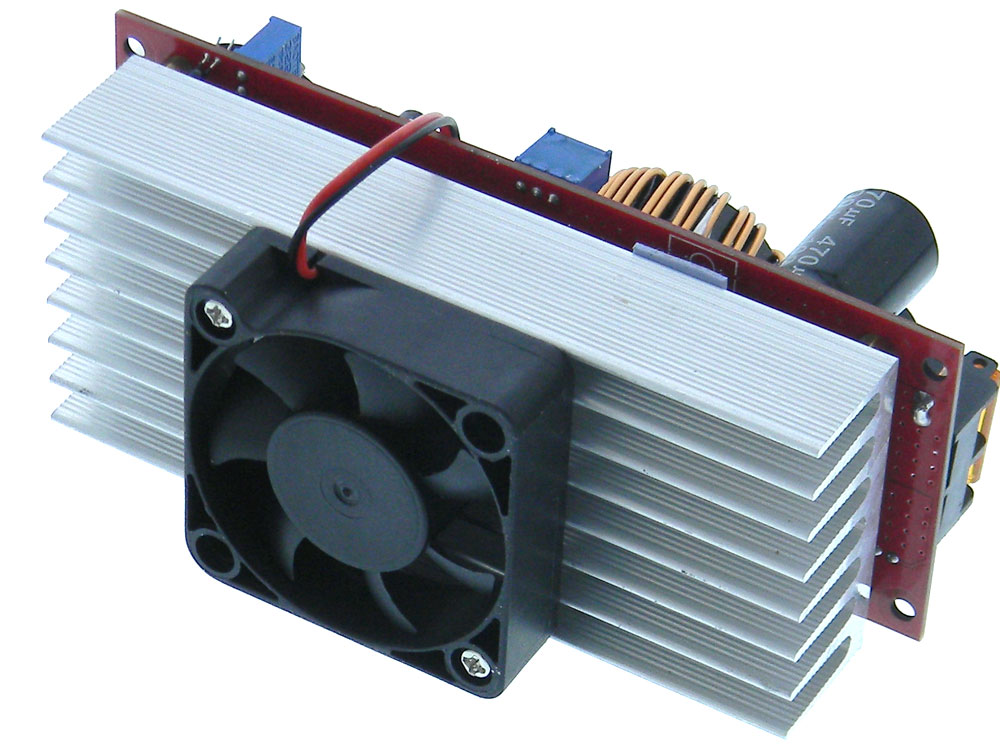

Adjustable DC/DC Boost Converter, 10-60VDC, 1800W


Adjustable DC/DC Boost Converter, 10-60VDC, 1800W
Images/36843-large.jpg Images/36843-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36843 PS
  Be the first to review this item
$24.95
$18.95
This item is discontinued & is not being restocked.

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

High power, Non Isolated, Step up (Boost) adjustable DC/DC Converter. Adjustable Constant Voltage/Current and Input Under Voltage. Temperature controlled fan.
Over Current LED, Undervoltage LED, Output ON LED
Terminal strips In/Out.
Input: 10-60VDC
Rated Input Current: 40A Fused at 60A
Switching Frequency: ~150KHz
No Load Standby: <20mA
Output: ~13-95VDC
Input/Output Differential: 2V Min.
Rated Current: 22A 1800Wmax Output
Operating Temperature: -40° to 85°C
Regulation: .5%
Efficency: >95%
L: 5-1/8" W: 2" H: 2-7/8 WT: 1
