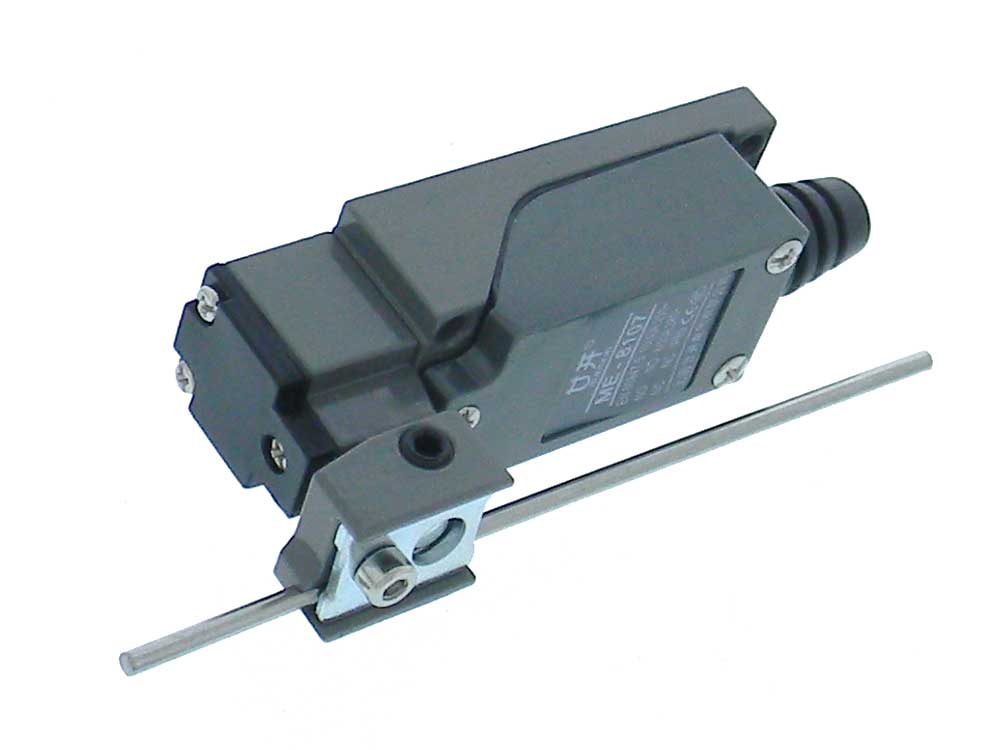

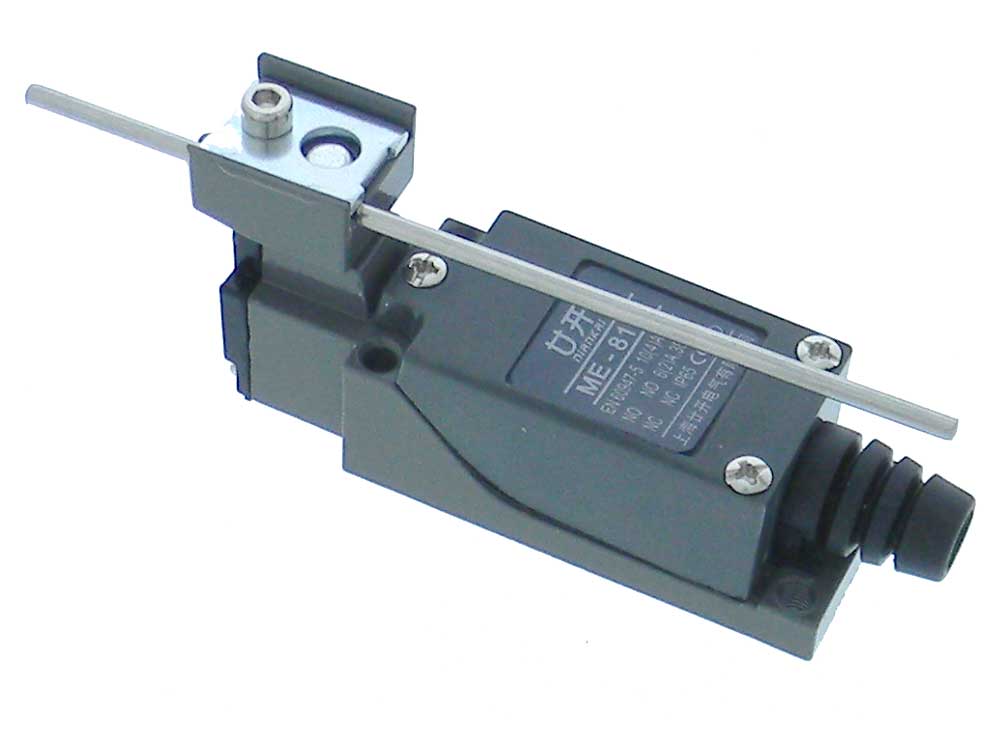

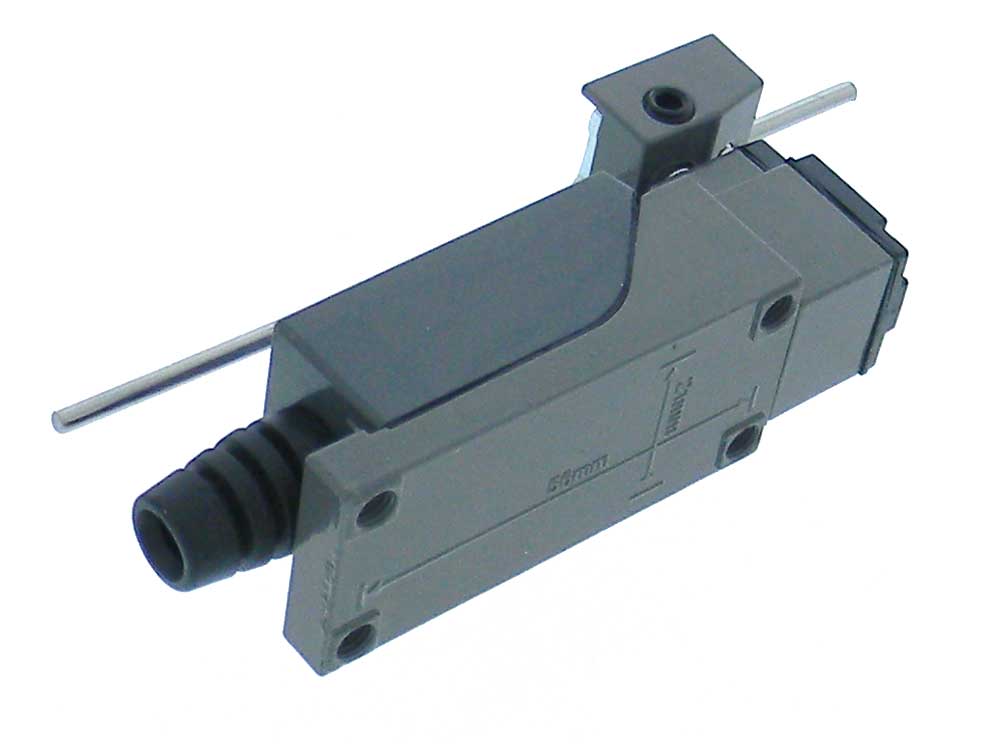

Adjustable lever Limit Switch, SPST-NO & NC, IP65


Adjustable lever Limit Switch, SPST-NO & NC, IP65
Images/38488-large.jpg Images/38488-1.jpg Images/38488-2.jpg   California Proposition 65 Warning
Stock Number: 38488 SW
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 8
Quantity



SHARE

     Email this to a friend

Detailed Description

IP-65 rated Bi-directional, Lever Limit switch with Auto return to Center position.
P/N ME-8107
Configuration: SPST-NO & SPST-NC
Contact Rating: 10(4)A/250VAC, 6(2)A/380VAC
Material: Zinc Metal Alloy Body, Plastic Cover
Stainless Lever Arm 120x 2.7mm (4-3/4 x 0.1")
Actuation Angle: ~+- 15° from center
Rotation: +- 90° Max
Mechanical Operating Frequency: 120times/min
Electrical Operating Frequency: 30 times/min
Service Life: >10,000
Protection Degree: IP65
Operating Temperature: -5°~+40°C
Operating Humidity: 85%
Max Lever Extension: 100mm (3-3/4" from clamp)
Lever Offset from Mech. Piviot: 5.4mm
Mounting Holes: M5x0.8
CE Approved
L: 3-1/2" (Body) W: 1-1/8" H: 1-5/8" O/A WT: .25
