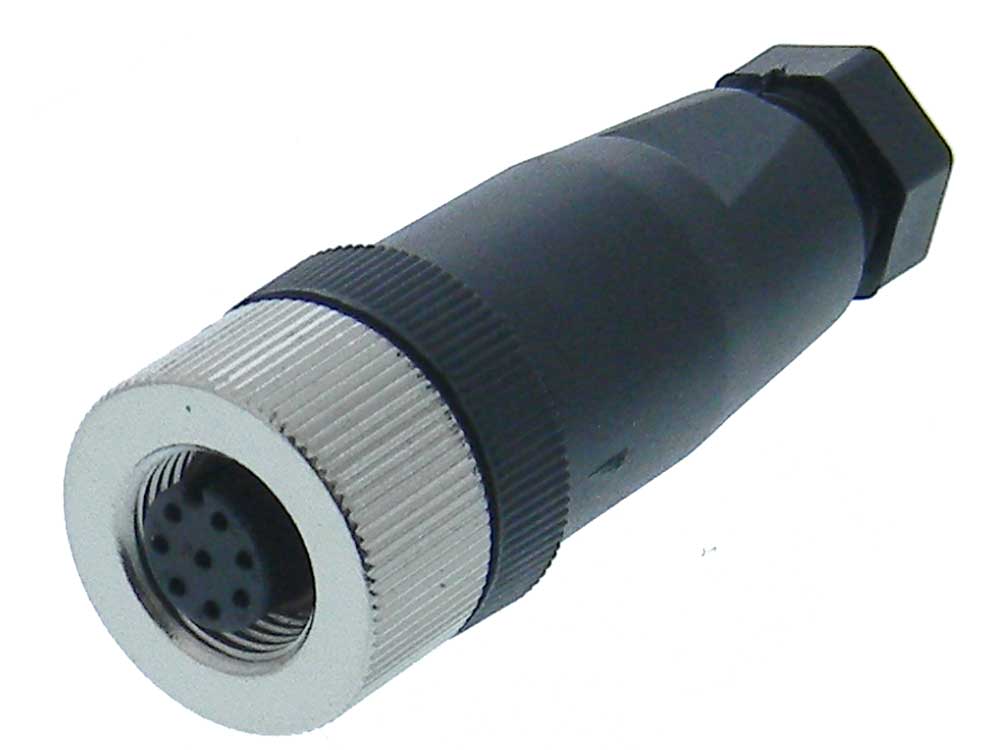

Aviation Style IP67 Connector, M12, 8 Pin Female


Aviation Style IP67 Connector, M12, 8 Pin Female
Images/38485-large.jpg Images/38485-1.jpg Images/38485PL config.jpg   California Proposition 65 Warning
Stock Number: 38485 PL
  Be the first to review this item
$8.95


Availibilty: In Stock   Units: 36
Quantity



SHARE

     Email this to a friend

Detailed Description

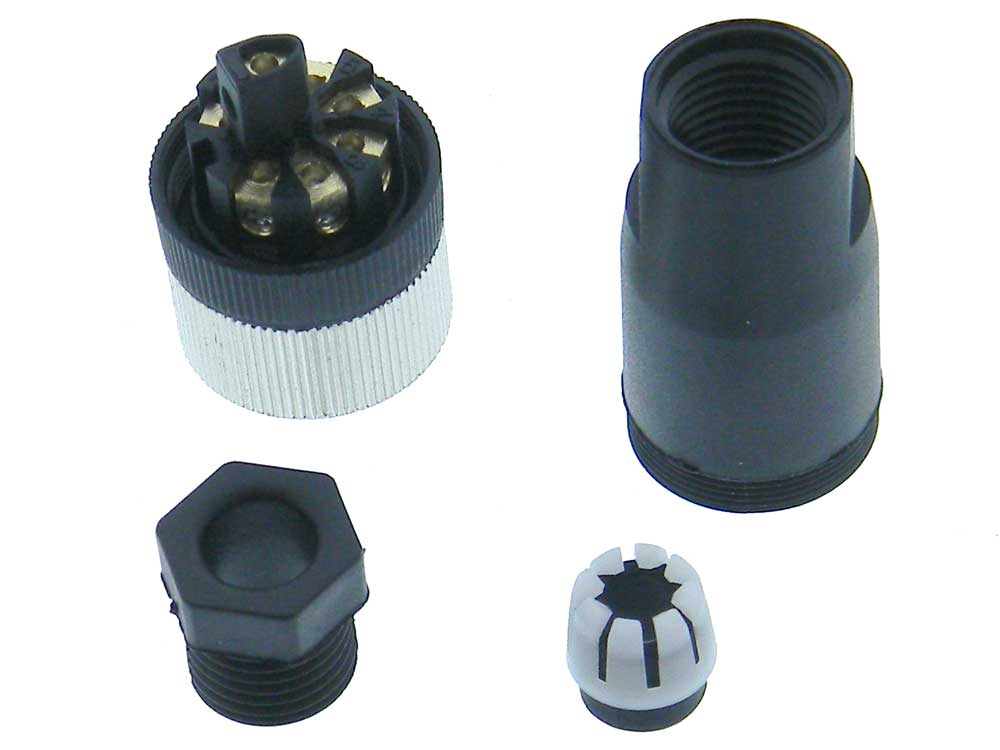

8 Pin Female Avaition Style Plug Rated IP67
Gold Plated Brass Pins and PA66 Plastic Body
Screw Crimp Terminals
Breakdown Voltage: 1500V
Current: 4Amax
Wire Range: 0.14-0.75mm² (~26-19AWG)
Temperature Range: -25°C to +85°C
Initial Contact Resistance <3m Ohms
DIA: 20mm L: 55mm WT: .06
