Control Module for Weight Sensor 34723-MI (HX711)


Control Module for Weight Sensor 34723-MI (HX711)
Stock Number: 38217 MI
  Be the first to review this item
$5.95


Availibilty: In Stock   Units: 14
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

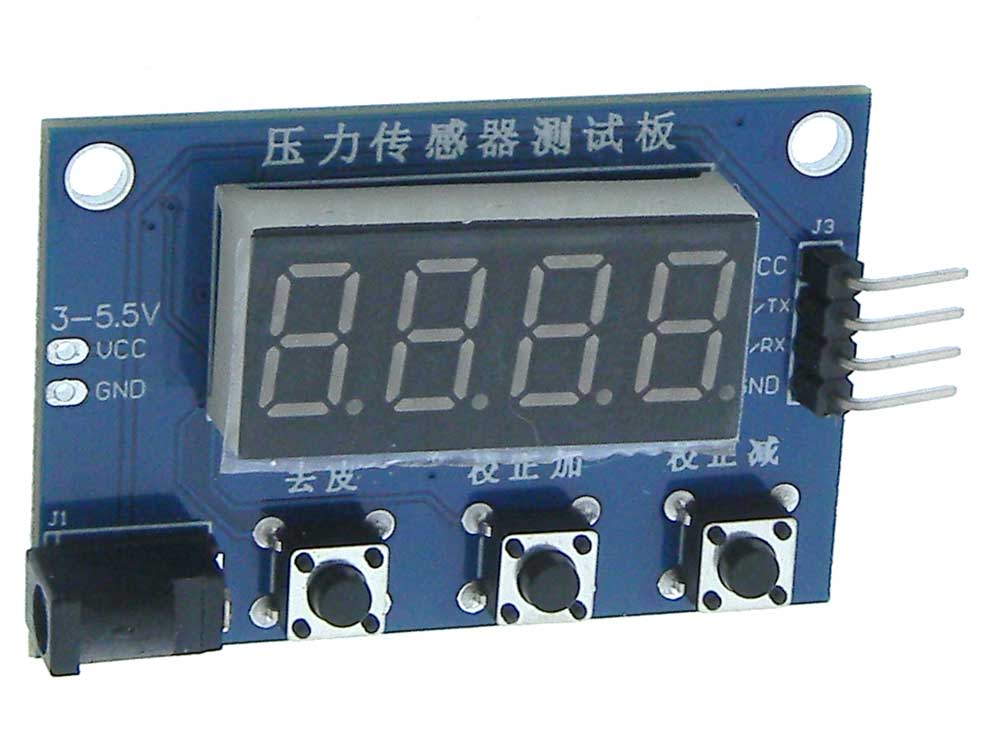

Display and control module with pre-programmand micro-controller eliminating the Arduino for the 34723-MI “Load Cell with ADC Converter Board for Microcontrollers”
NOT INCLUDED

Provides power & signal interface to the HX711 analog/digital strain bridge sensor board.
Maximum value displayed: 9999g.
Power: DC 3~5.5V. 2 power supply methods.
Hard wired to solder pads
4/1.7mm coaxial jack (Center +)
Display: 4 Digit, 3/8” LED

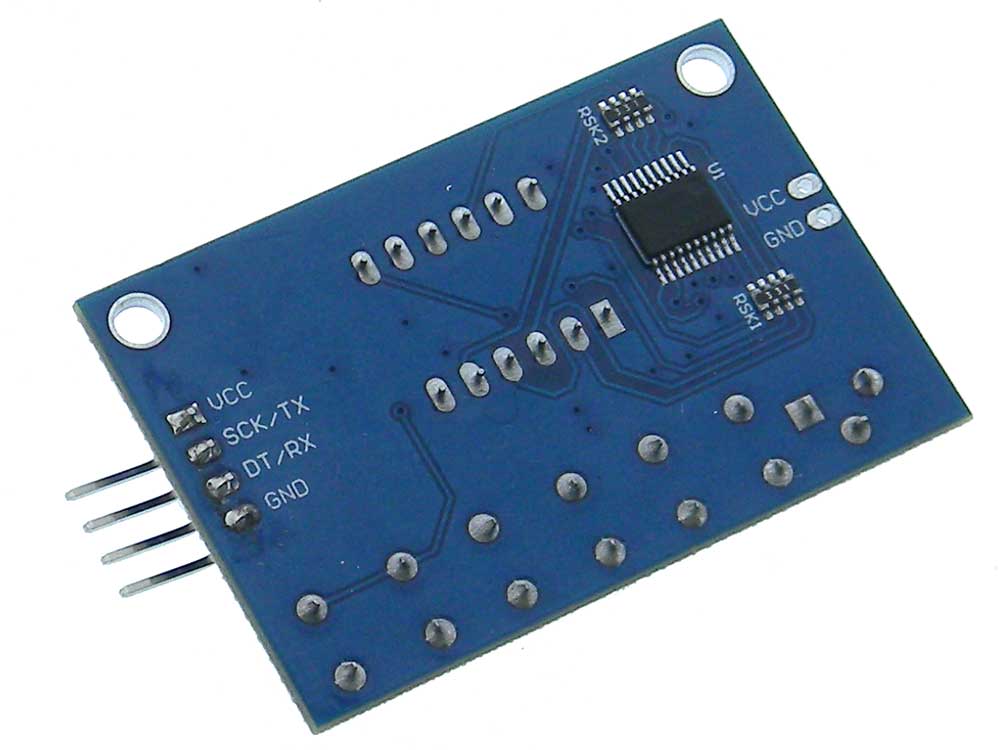

Interface: 4 pin right angle header, .1” pitch
for Vcc, SCK/TX, DT/RX, GND
L: 50mm (2”) Board W: 14mm (1-5/16”)
H: 11mm (3/8”) WT: .02
