DC Motor Speed & Direction Control


DC Motor Speed & Direction Control
Images/35715-large.jpg   California Proposition 65 Warning
Stock Number: 35715 MD
  Be the first to review this item
$15.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

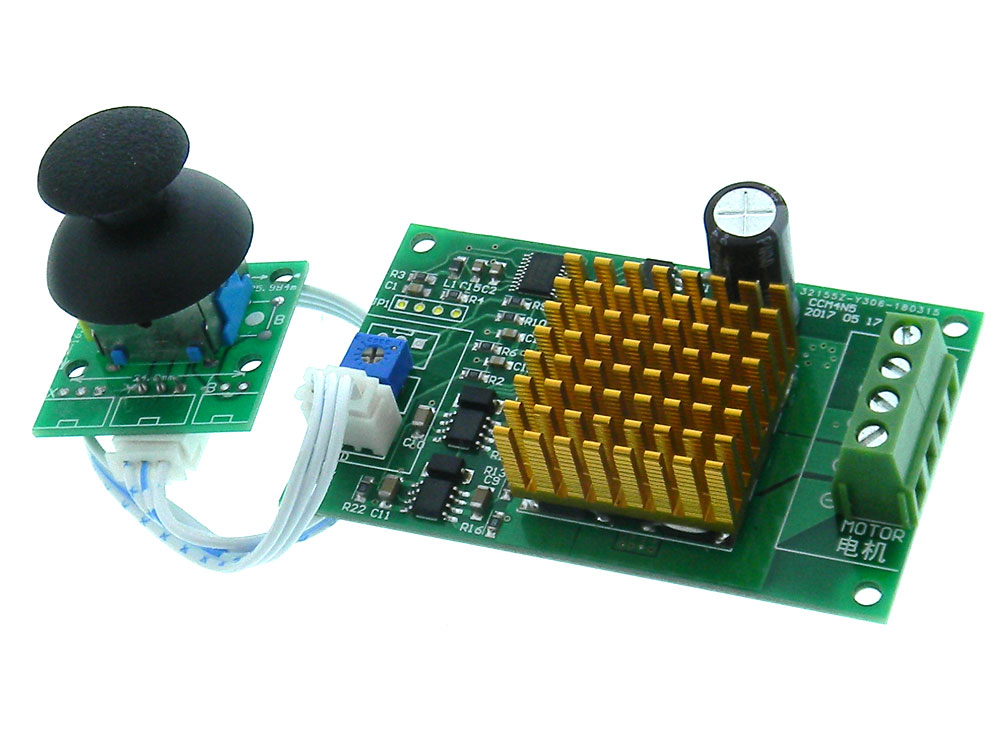

DC Motor controller provides Variable Speed & Direction control of a DC motor using a Bi-directional Rocker "Joystick" board.
Power: 12V-30VDC
Output power: 3A (12V50W max; 24V100W max)
Hall Effect IC limits instantaneous peak curren to ~6.4A
Duty Cycle: 0-100%
Control: Forward-Stop-Reverse with auto return to Center (Stop) upon release. Degree of Angle from Center sets speed
Compensation Adjust: Set "0" Motion Centering (No Motor Motion).
NOTE: DO NOT REVERSE POSITIVE & NEGATIVE POWER LEADS TO CONTROLLER. THIS WILL DAMAGE THE CONTROLLER.
Connections: Terminal Strip
7in. Pigtail between Joystick board & Controller
L: 3" W: 1-13/16" HT: 1" WT: .1
