Digital Resistance Tester, 0-19.99 Ohms


Digital Resistance Tester, 0-19.99 Ohms
Images/38528-large.jpg Images/38528-1.jpg   California Proposition 65 Warning
Stock Number: 38528 TE
  Be the first to review this item
$16.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

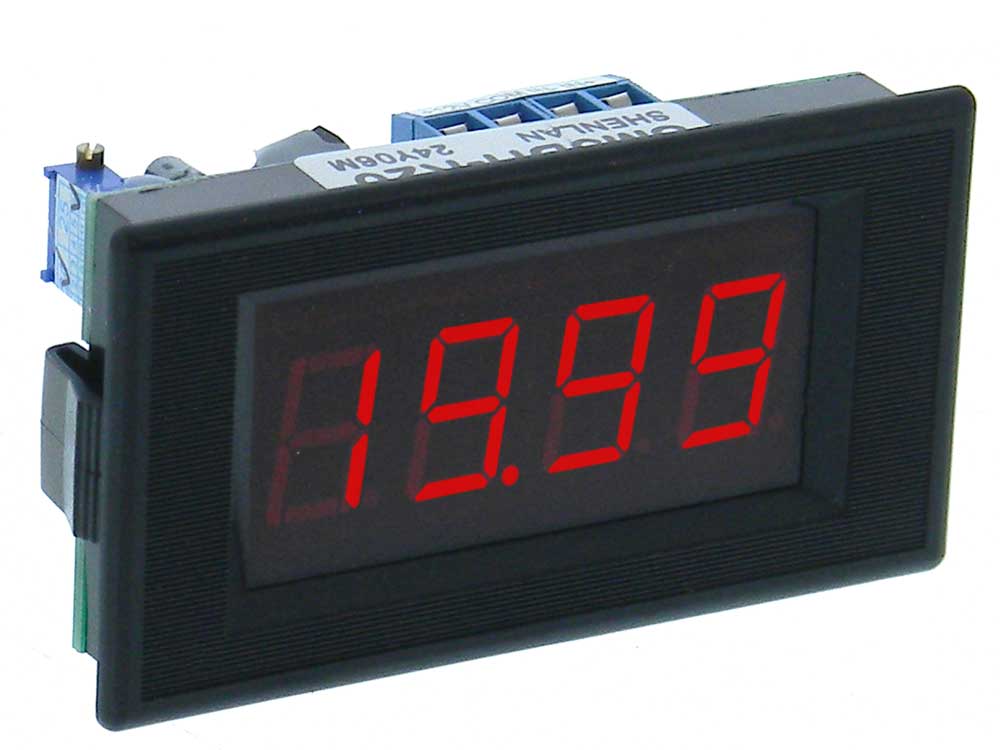

Panel mount, 4 Digit LED, Low Ohm resistance Meter
Power: 7-12VDC
Current: <70mA
Range: 0-19.99 Ohms
Accuracy: +-0.5% +-2LSD
NOTE: Leads & Connections effect accuracy
Test Current: 10mA
Sample Rate: ~2.5/Sec
Display: 4 Digit Red LED.
Character Height: 14.2mm
Temperature Range: 0-50°C
Cutout: 77mm x 39.5mm
W: 79mm (3-1/16") H: 43mm (1-11/16"
D: 25mm ( 1") O/A WT: .12
