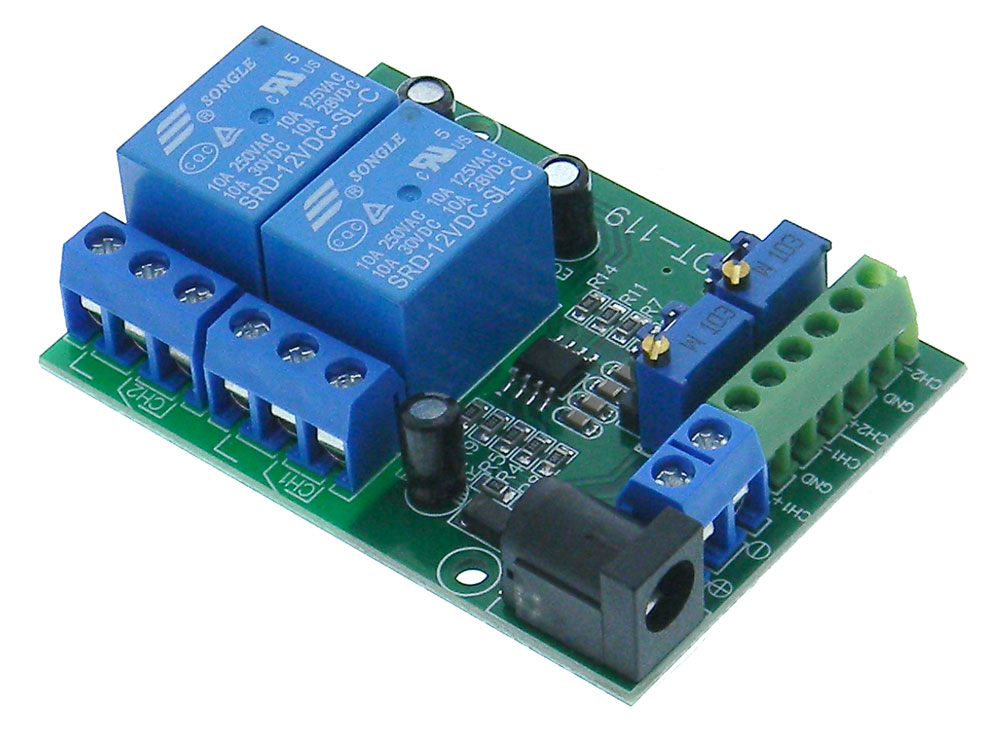

Dual Voltage Comparator Module with SPDT Relays 12V


Dual Voltage Comparator Module with SPDT Relays 12V
Images/37870-large.jpg   California Proposition 65 Warning
Stock Number: 37870 MI
  Be the first to review this item
$12.95


Availibilty: In Stock   Units: 8
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Dual precision Voltage Module. Each independant channel compares an input to an onboard adjustable voltage reference or an external reference.
3 Jumper selectable Functions:
1: When the input voltage is Greater than the Internal reference voltage, the relay is energized..
2: When the input voltage is Greater than the External reference voltage, the relay is closed.
3: When the input voltage is Less than the Internal reference voltage, the relay is closed.
Power: 12VDC @~ 55mA
Connection:
Power: 5.5/2.1mm Coaxial Jack or Terminal Strip.
Input & Relay Contacts: Terminal Strips
Relay: SPDT 10A @ 250/125VAC/30VDC
L: 2-1/2" (63mm) W: 1-3/4" (45mm) H: 3/4" (20mm) WT: .1
