High Torque DC Servo Motor/Driver, 180g/cm


High Torque DC Servo Motor/Driver, 180g/cm
Images/34108-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 34108 MD
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$79.95
$29.95
This item is discontinued & is not being restocked.


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet

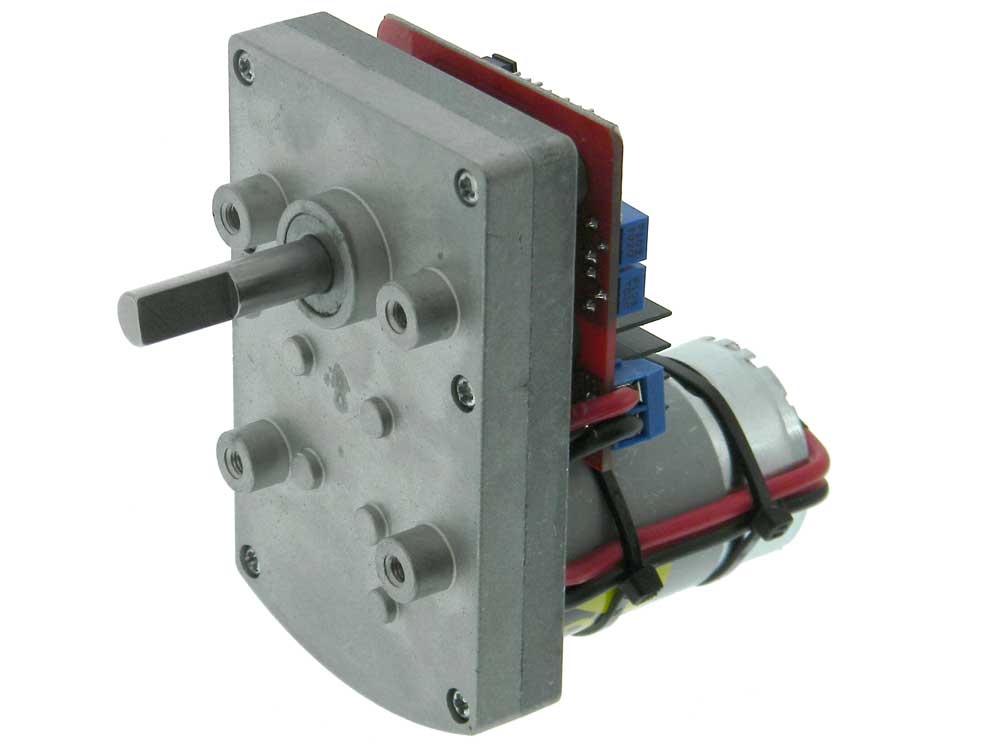

High Torque Servo Motor for Robotics
Heavy duty servo motor with metal case & metal gears for robotic arms and other high torque needs.
Rated:
Voltage: 12-24VDC
Current: 500mA No Load
Shaft: 8mm Dia. X 30mm (15mm "D")
Max Torque: 180kg/cm @ 24V,
90kg/cm @ 12V,
Speed: 0.5Sec/60deg @ 24V 1.0sec/60deg @12V
Rotation: 300deg. Max Adjustable
Control Accuracy: 0.32deg.
Input: Dual Modes:
PWM: Digital from R/C servo controller or Microcontroller
Selectable: 0.5mS-2.5mS for wide range servo controllers
1mS-2mS for Microcontrollers (Arduino etc)
Analog Voltage: 0-5VDC with external variable resistor >10k
Connections:
Terminal Strip for Power
3 X 0.1”Pitch Header Pins for Analog Pot
3 X 0.1”Pitch Header Pins for PWM from Controller
4x M4-0.7 mounting Holes
H: 3-7/8” O/A W: 2-38” T: 5” O/A WT: 1.7
