IP67 Waterproof Buzzer I 6-16VDC


IP67 Waterproof Buzzer I 6-16VDC
Images/38563-large.jpg Images/38563-1.jpg   California Proposition 65 Warning
Stock Number: 38563 SU
  Be the first to review this item
$2.75

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

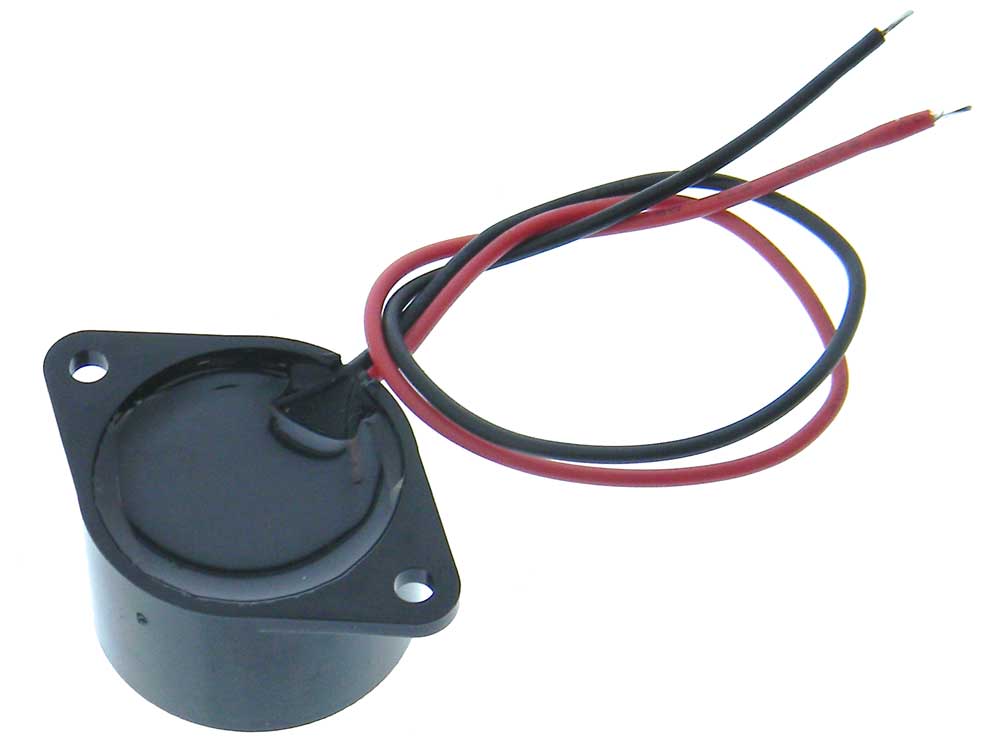

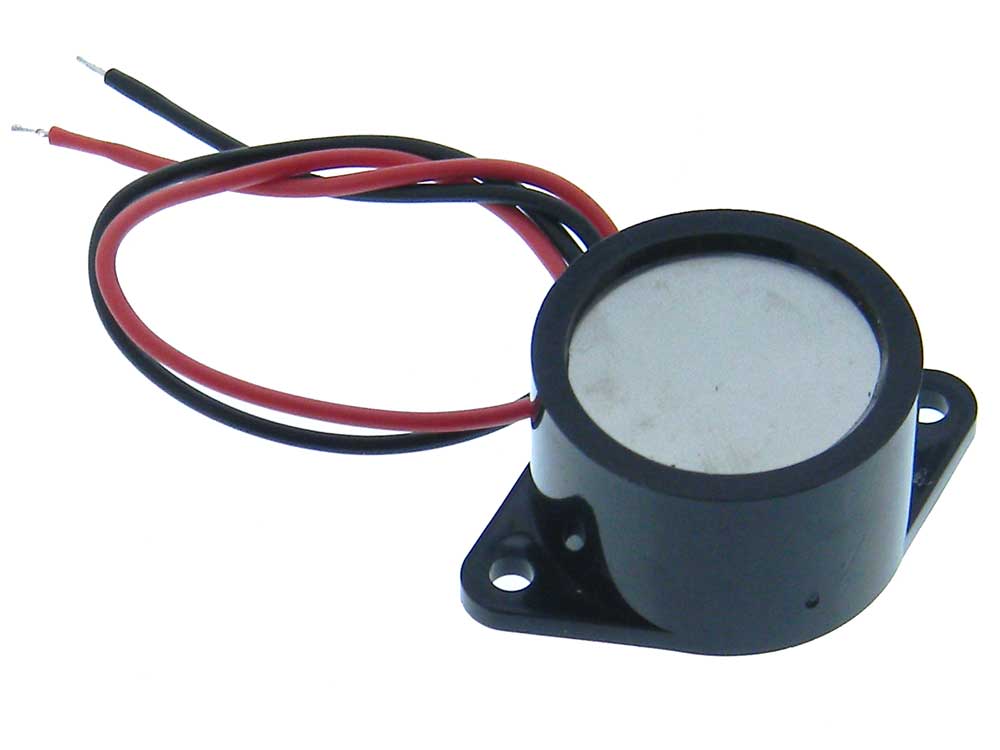

Water resistant IP-67, continuous single tone Piezo Buzzer
Screw mount,
Rated Voltage: 12VDC
Operating Voltage: 6 ~ 16VDC
Max. Rated Current: <35mA /12VDC
Min. Sound Pressure Level: ~85dB at12VDC/10cm
Resonant Frequency: 2.8 ± 0.5KHz
Operating Temperature: -20° C to + 70° C
5” wire leads
Body Dia: 26mm (~1")
L: 39mm (1-9/16”) O/A W: 26mm (~1”) HT: 16mm (5/8” WT: .02
