MR60 3 Pin, Male & Female Pair, 30A RC Power Connectors


MR60 3 Pin, Male & Female Pair, 30A  RC Power Connectors
Stock Number: 38479 PL
  Be the first to review this item
$1.95


Availibilty: In Stock   Units: 95
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

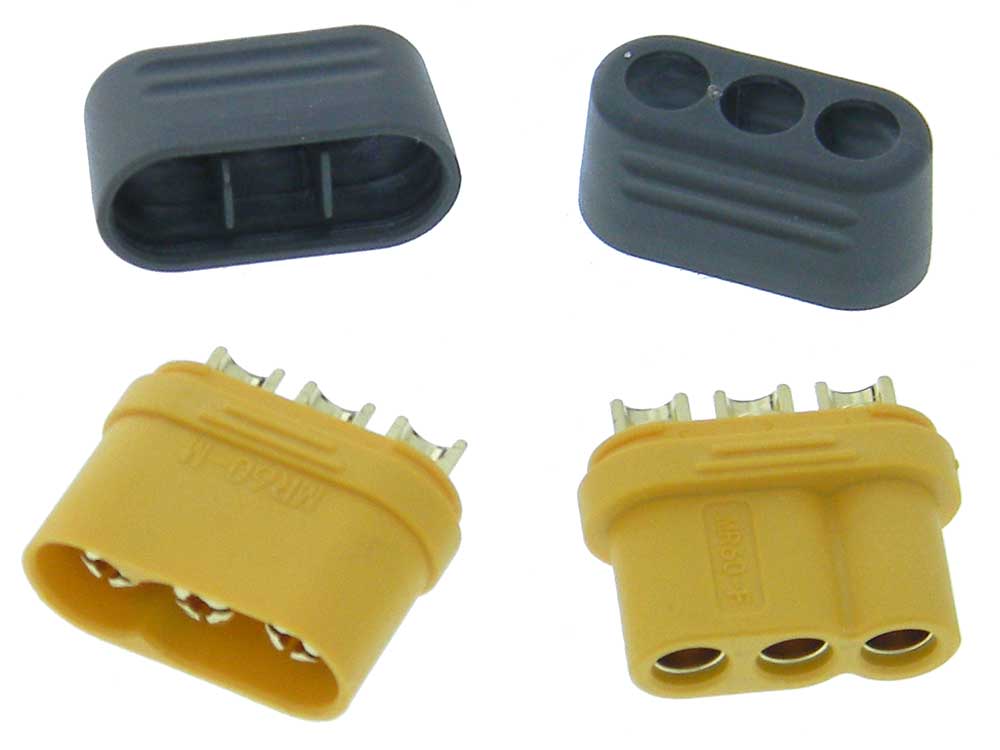

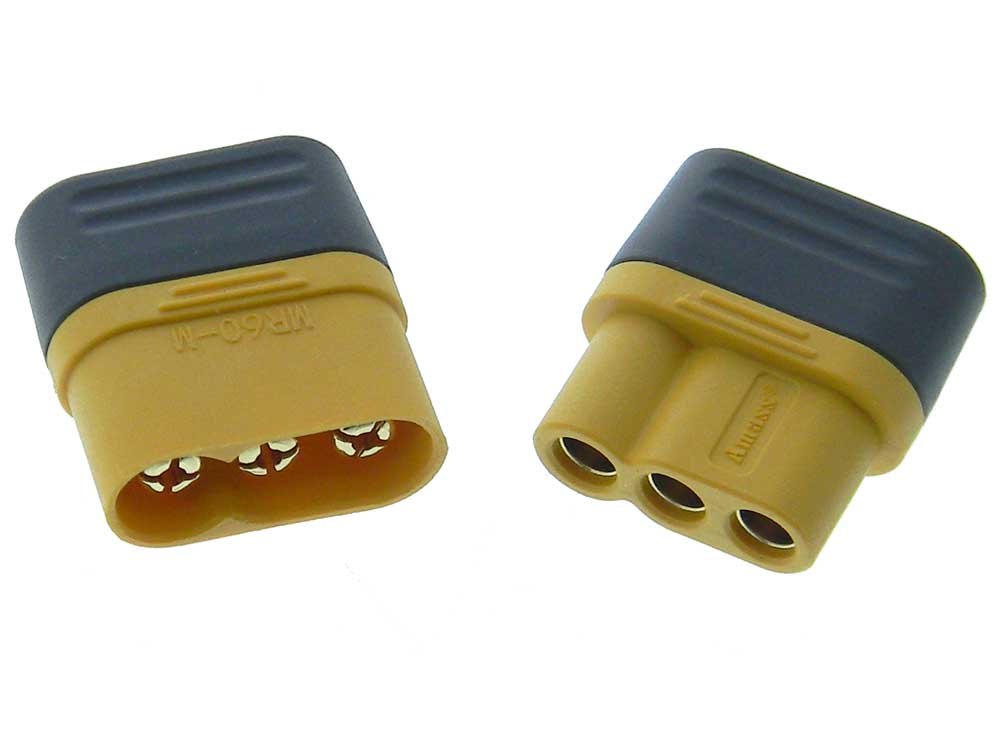

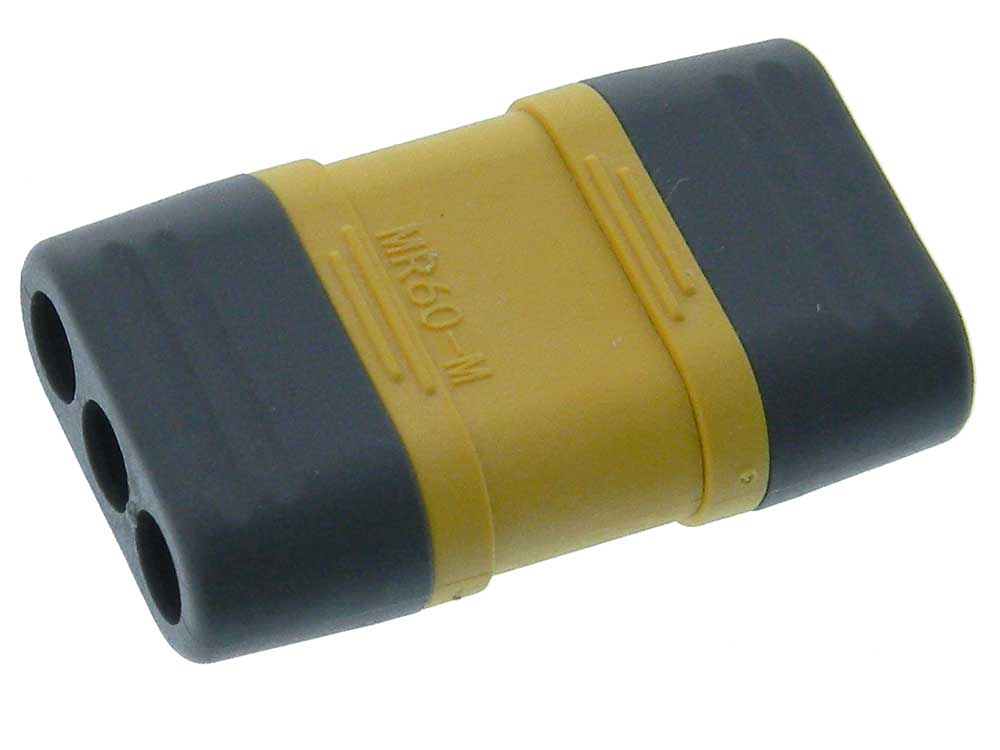

Mating Pair of MR60 Power Connectors for RC Models.
Amass Style MR Male & Mating Female connector
with snap on sheath (backshell) for the wire side of the connector.
Pins: Gold Plated Brass
Pitch: 5.5mm
Body: PA nylon (polyamide)
Continuous Current: 30A Max
Instantaneous Current: 60A
Max Voltage: 500V
Initial Resistance: ~.5m Ohm
Connections: Solder Cup
Wire: 12AWG
Operating Temp: -20°C to 120°C
Female
L: 20.2mm W: 9.7mm H: 22.3mm /Backshel
Male
L: 20.3mm W: 9.7mm H: 21.8mm with Backshell
WT: .02
