Modular Power Supply, 110-220VAC to 12VDC @600mA


Modular Power Supply, 110-220VAC to 12VDC @600mA
Images/38400-large.jpg   California Proposition 65 Warning
Stock Number: 38400 PS
  Be the first to review this item
$4.95
$2.95
This item is discontinued & is not being restocked.


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

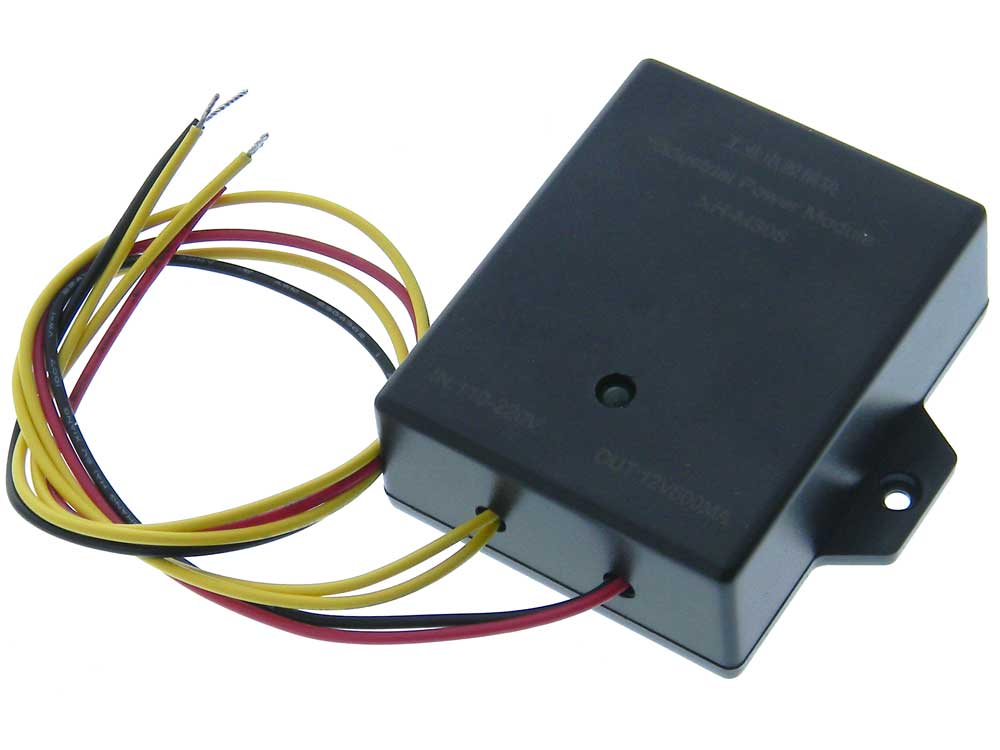

Modular Power supply is specially designed for light industrial uses.
Plastic case with mounting ears.
LED Power Indicator
Input Voltage: 110/220VAC 50/60Hz
Output Voltage: Isolated 12V DC
Output Current: .6A Max (7.2W)
Ripple/Noise : 30mV
Operation temperature: -20 to + 85° C
11" Wire Leads
Yellow: AC
Red: + Plus Black: - Minus
2 Mounting ears with 3mm holes on 58.4mm (~2.39") ctrs.
L: 63mm Body (~2-7/16" ) W: 67mm 2-5/8" O/A T: 22mm (7/8") WT: .15
