Multi Function Time Relay SPDT


Multi Function Time Relay SPDT
Stock Number: 35238 MP
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item
$7.95


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

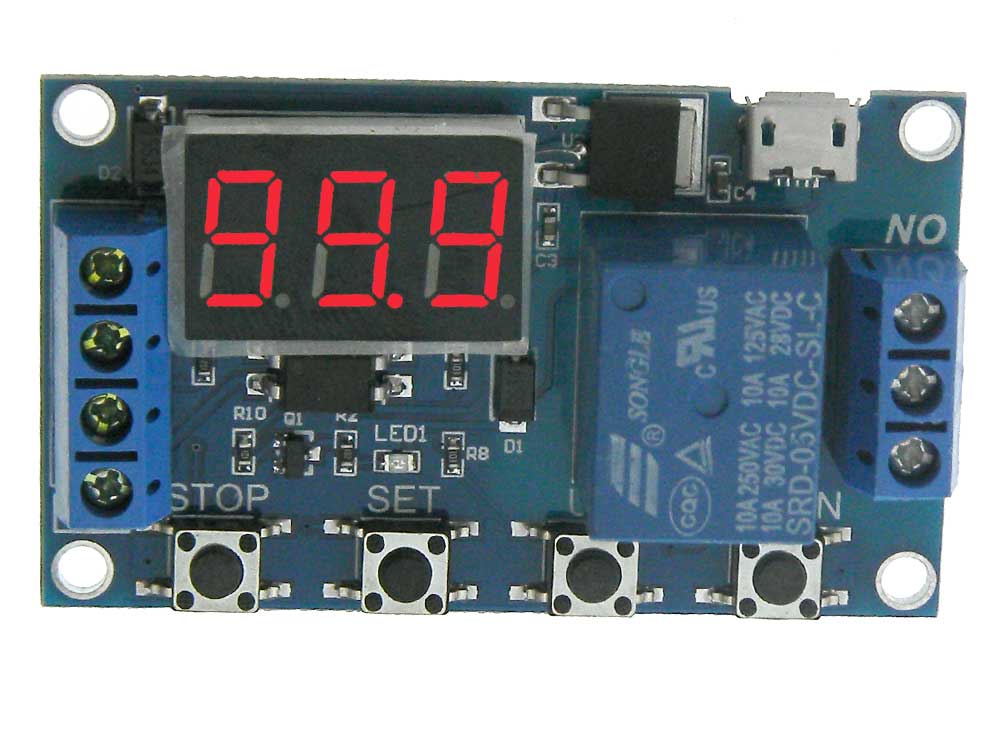

Microprocessor based, programmable, triggered timing module. Opto-isolated trigger input starts timing.
Programmable as a Delay on Start, Delay on Stop or Recycling.
Programmable ON Time/OFF Time/Number of Recycles (Looping)
Programming requires patience and practice.
Time Range: 3
Range:0.1sec. to 999min.
0-999 Minutes 1 Minute Resolution
0-999 Seconds 1 Second Resolution
0-99.9 Seconds .1Second Resolution
Power: 6-30VDC
5V Only on the USB power input
Current: Standby: <20mA <60mA Relay energized
Trigger Voltage; 3-24VDC
Relay: SPDT ISOLATED CONTACTS
Contacts: 10A 125/250VAC/30VDC
Terminal Strip for Relay Contacts
Terminal Strip for Power & Trigger
USB Micro B for 5V only Power.
L: 2-1/2" W: 1-1/2" H: 3/4" WT: .06


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Power
Can this unit be powered by the USB connection? In my case, I can’t trigger it put am able to program it when powered via the USB.
Glenn

Using it for a greenhouse mist bench
Great price and just what I needed to turn on an irrigation valve for a few seconds at a time, at intervals that can be easily set.
Fred

Mike
Excellent multi function timer. I needed a timer with a delayed on function and this fit the bill. Replaces 2 $85.00 timers in one low cost package.
