Multifunctional Stepper Motor Driver Control Board


Multifunctional Stepper Motor Driver Control Board
Images/36820-large.jpg Images/36820-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36820 MS
  Be the first to review this item
$9.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

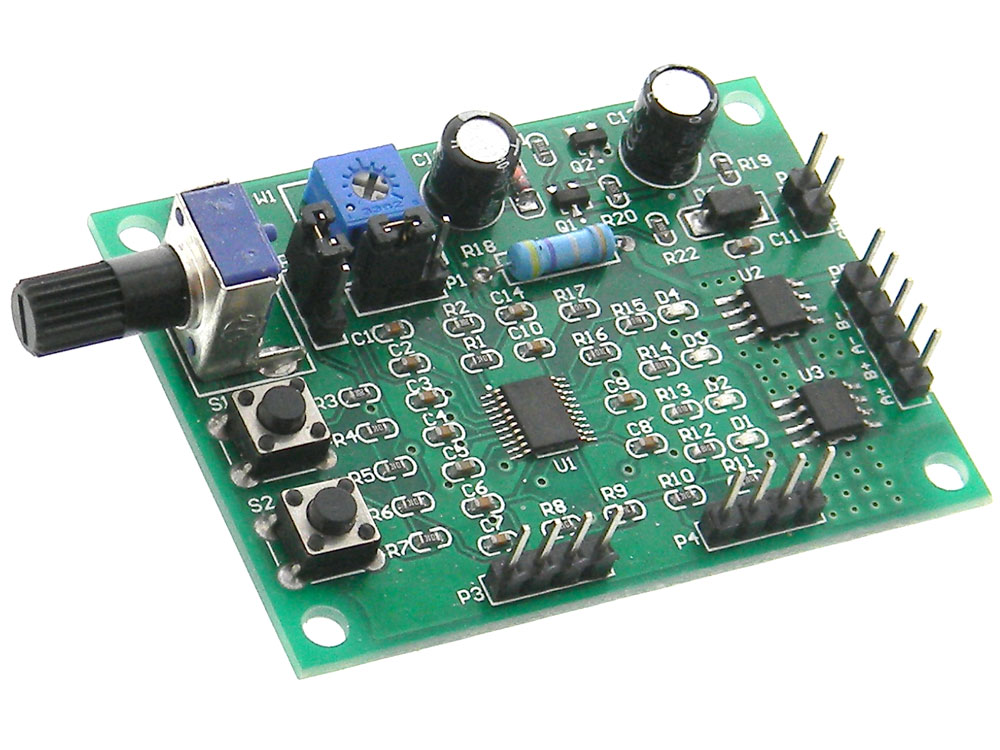

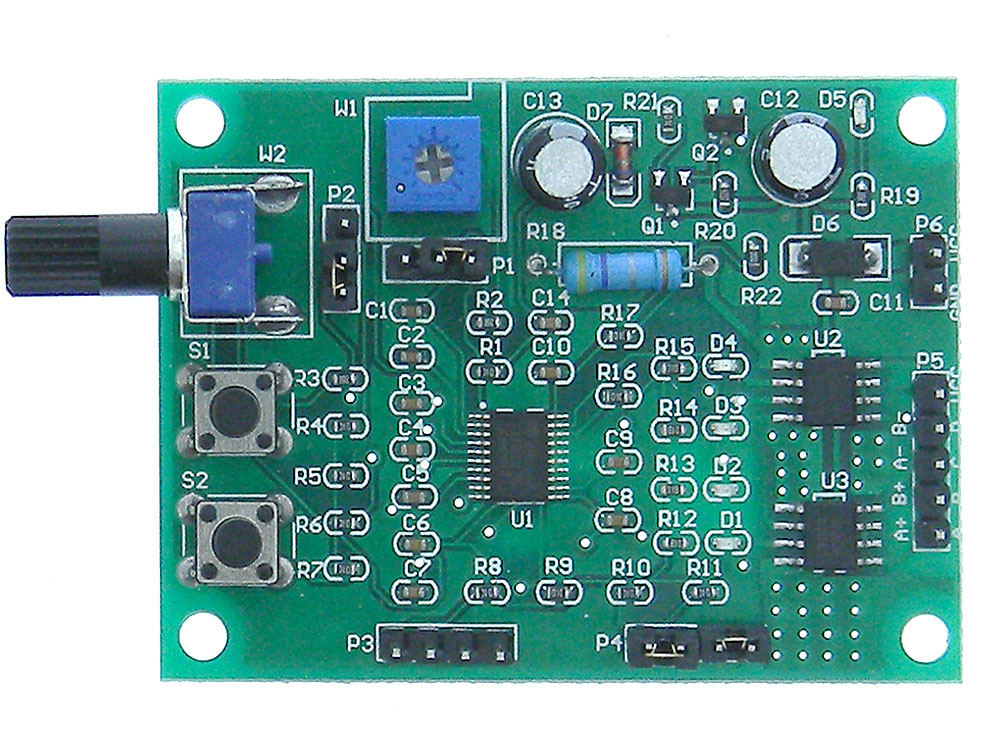

Multifunctional Stepper motor driver & control board for 2-phase 4-wire and 4-phase 5-wire stepper motors.
Reverse Polarity protection, Over Current & Temperature protected.
Input: for Limit switches.
Voltage Range: 5V-12VDC
Rated Current: 800mA
Step Rate: Jumper Select
Low Range: Each step takes 3.125 seconds-the fastest step takes 0.0625 seconds (16 steps/second).
High Range: each step requires 0.0625 seconds (16 steps/second)-the fastest step is 0.00125S (800 steps/second).
4 operational Modes: Jumper Select
Normal 1: Start and Stop button (alternate Action), Forward and Reverse button (Alternate Action), Potentiometer controls speed Normal 2: Forward run button other button Reverse run. Press either button to stop. Potentiometer controls speed.
Jog: Press button to rotate forward, release to stop, Press other Button for reverse, release to stop, Potentiometer controls speed.
Auto: (Back & Forth) One Button Start and Stop, Other button Forward and Reverse, Potentiometer for speed, Second Potentiometer for automatic round-trip steps. After starting, the motor will automatically run back and forth within the steps adjusted by the pot.
Connections: 0.1" Pitch Header Pins.
L: 2-3/8" (Board) W: 1-3/4" H: 9/16" WT: .02
