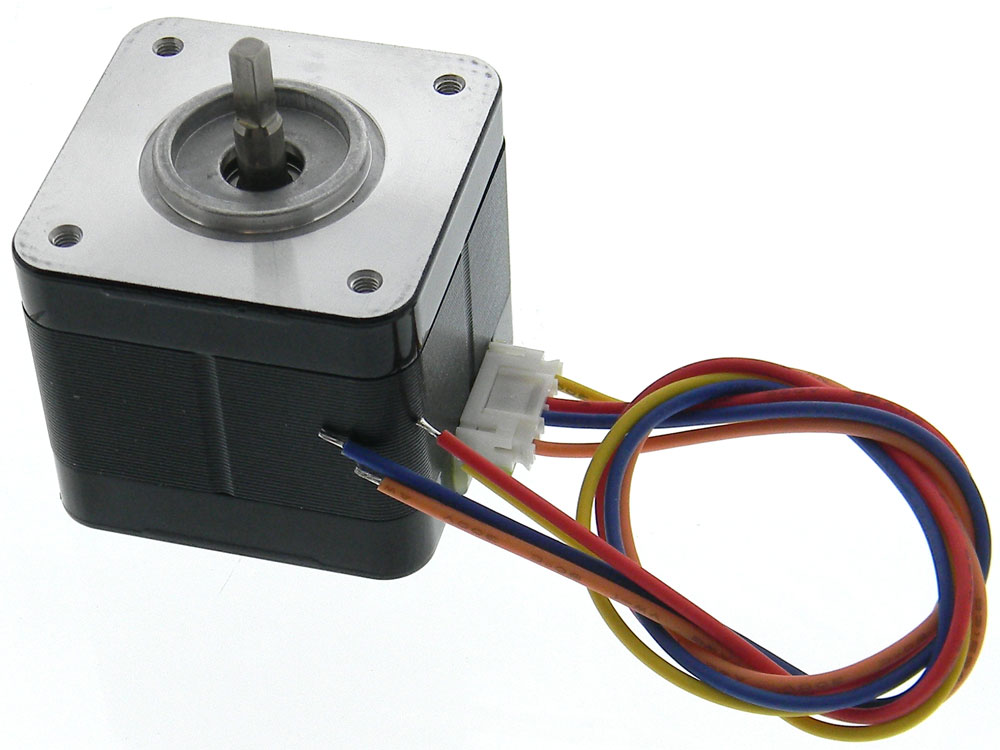

NEMA 17 Stepper Motor 10.4V with Square Shaft


NEMA 17 Stepper Motor 10.4V with Square Shaft
Stock Number: 33133 MS
  Be the first to review this item
$4.95
$2.95
This item is discontinued & is not being restocked.


Availibilty: In Stock   Units: 676
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

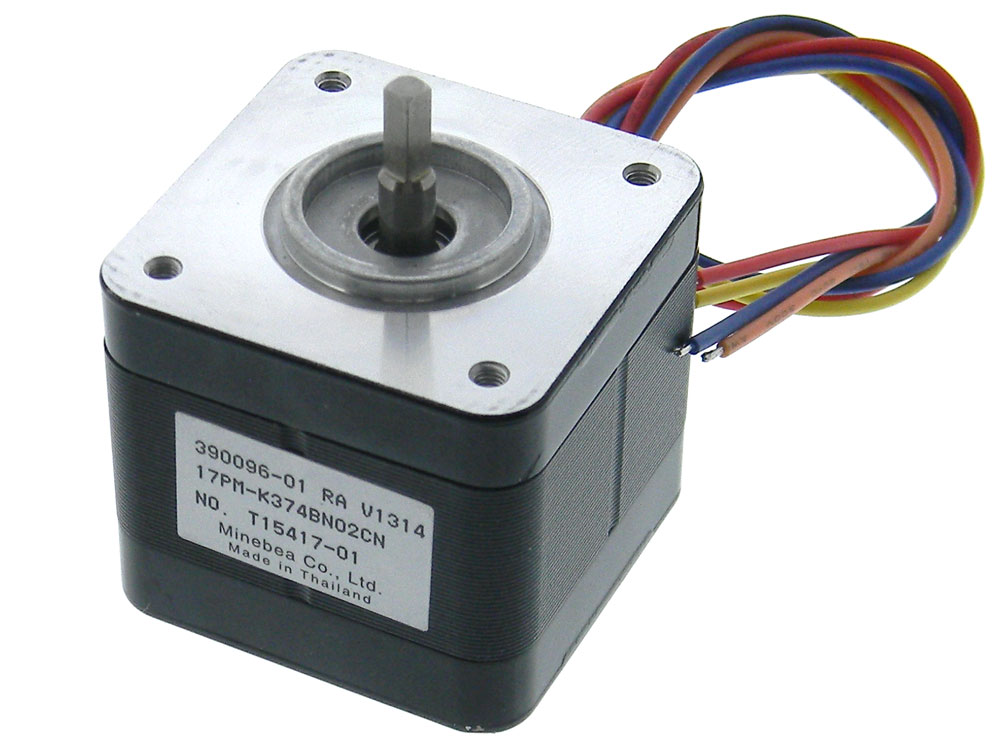

MFG: MINEBEA
P/N: 17PM-K374BN01/02-CN
COIL: 10.4V/.33A/32ohm/71mH
TYPE: 2 Phase Bi-Polar 4 lead
4 pin (6Position) connector. 10" Pigtail included
STEP ANGLE: 1.8 deg
340mN/m (48oz/in) holding torque.

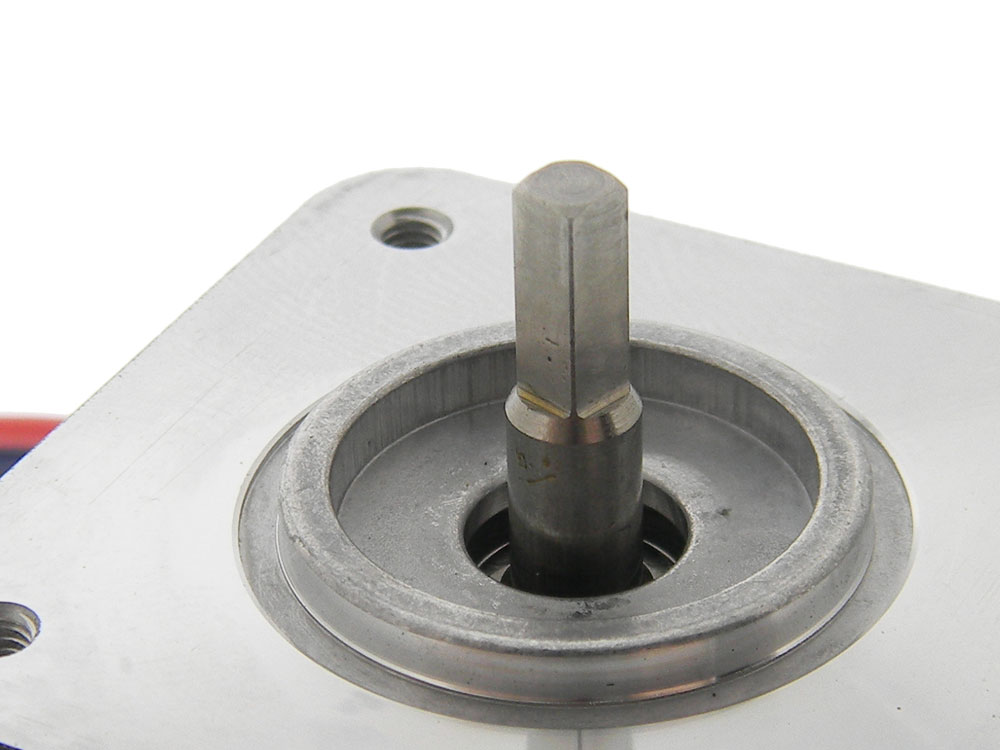

Shaft: Steel, 4mm Square X 8.5mm (4.1mm mean dia.), 12mm OA length.
4 M3-0.5 Threaded mounting holes.
SQ: 1-5/8” L: 1-1/2” (Body) WT: .6
