PWM DC Motor Speed Control with %, PWM, Volts, or Current


PWM DC Motor Speed Control with %, PWM, Volts, or Current
Images/38180-large.jpg Images/38180-1.jpg   California Proposition 65 Warning
Stock Number: 38180 MD
  Be the first to review this item
$11.95


Availibilty: In Stock   Units: 11
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Unidirectional PWM DC Motor speed control with LCD Display (%,Voltage or Current), external control.
NOTE: To Reverse Motor requires an external Reversing Switch ( NOT Supplied)

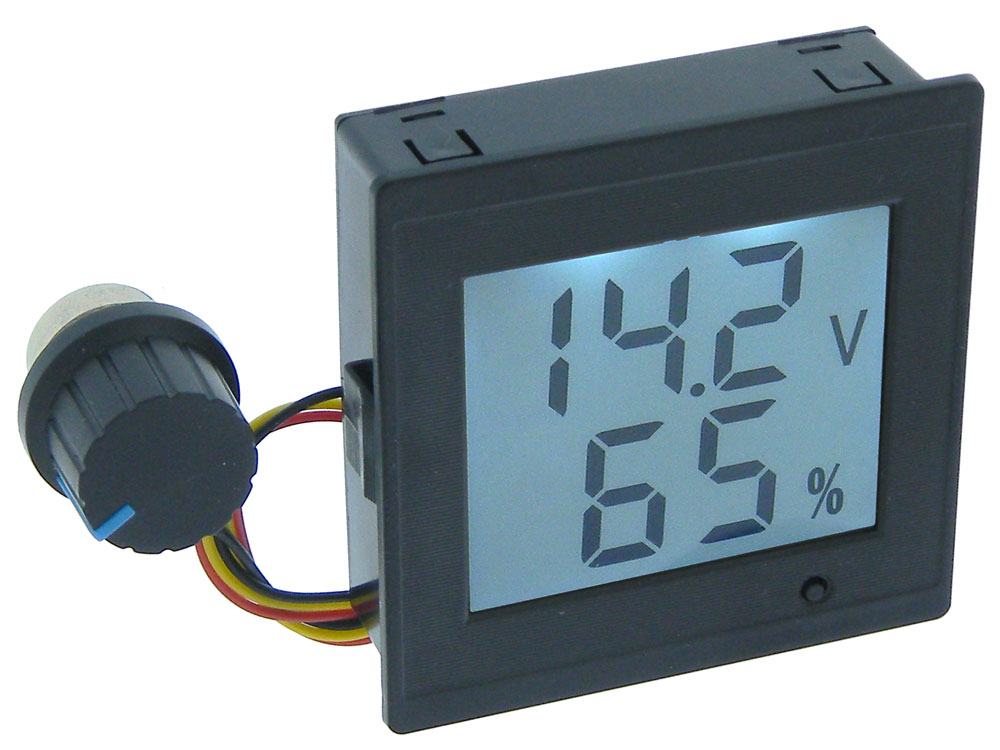

Displays: % Speed & Motor Voltage or % Speed & Motor Voltage at push of a button.
Linear output 0-100% of motor RPM
Input Voltage: DC12-36V
NOTE: Should be the same as Motor
Continuous Current: 5A
Surge Current: 8Amax
PWM Frequency: 15KHz
Voltage Measurment Range: DC12-36V
Current Measurent Range: 8A Starting current
Min: 0.1A
Accuracy: 5%
Control: 100K Variable Resistor
Display: 41mm x 48mm LCD

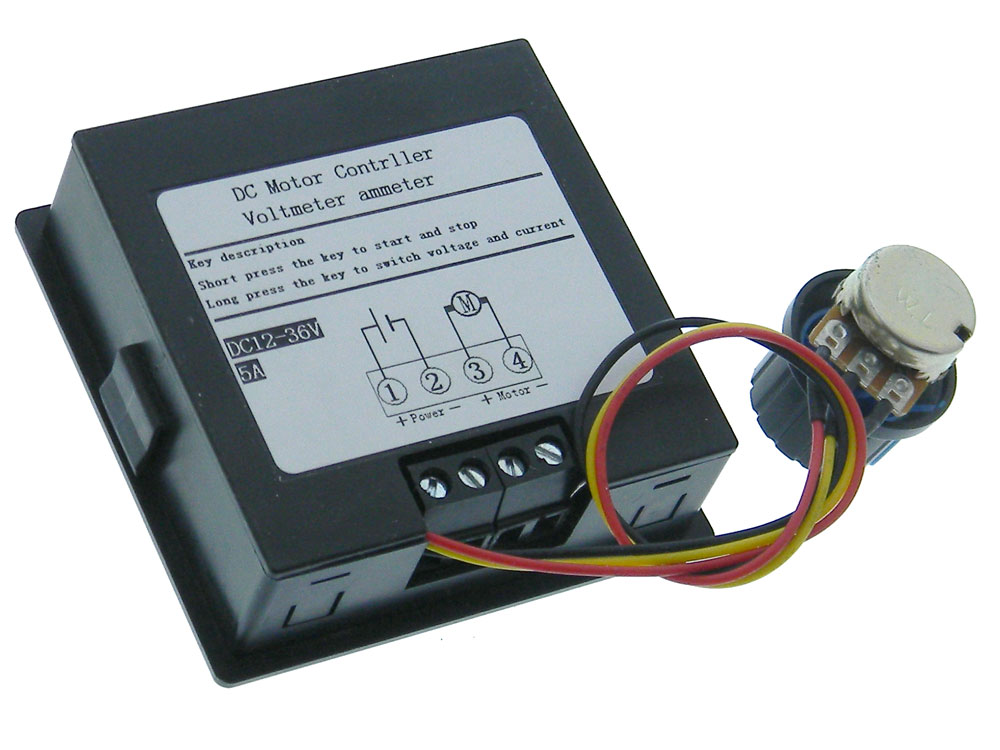

Connections: Motor & Power: Terminal Strip
Potentiometer: 6in Hard Wired
Cutout: 63mm * 63mm
SQ: 68mm (2-5/8") D: 22mm (7/8") WT: .16
