PWM DC Motor Speed Controller - 9-60VDC, 1200W


PWM DC Motor Speed Controller - 9-60VDC, 1200W
Images/36741-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36741 MD
  Be the first to review this item
$7.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

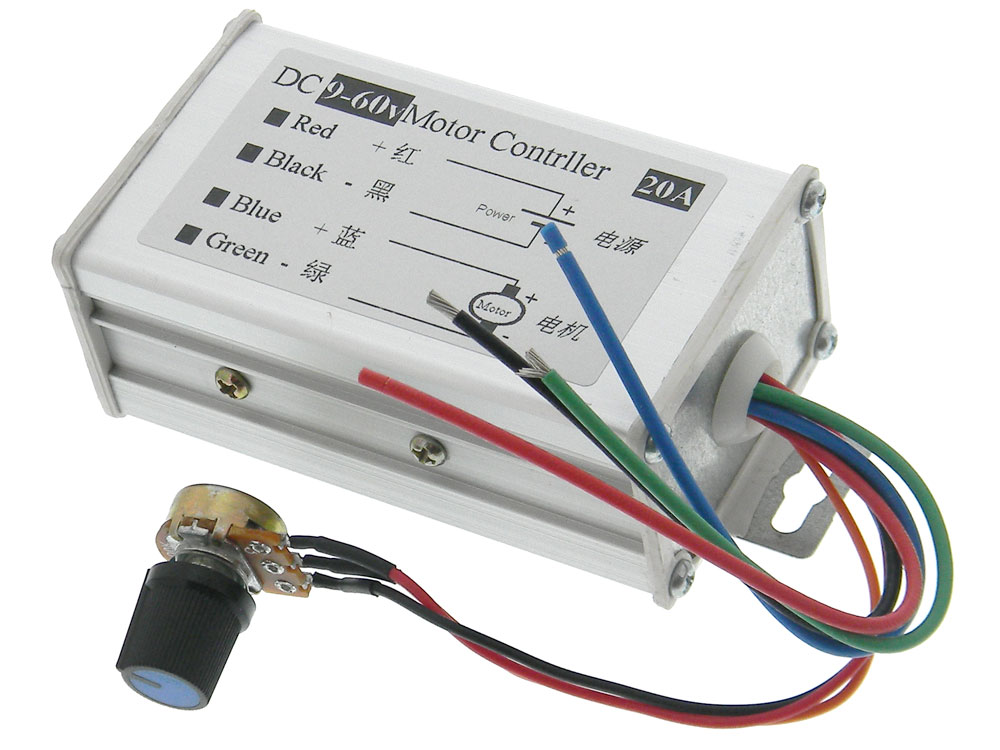

Wide range driver uses PWM to vary the speed of DC motors. Remote adjustment pot (included) connects to board by a 5” cable.
4" leads for power & motor connections.
Power+: RED
Power -: BLACK
Motor+: BLUE
Motor-: GREEN
Input: 9-60VDC
Rated Current: 10A Continuous (20A max surge)
Power:1200W max.
Range: ~5%-99% of rated motor RPM
PWM Frequency: 25KHz.
Aluminum Case with Mounting Tabs.
L: 4-9/16" O/A W: 2-1/16" H: 1-1/8" WT: .3
