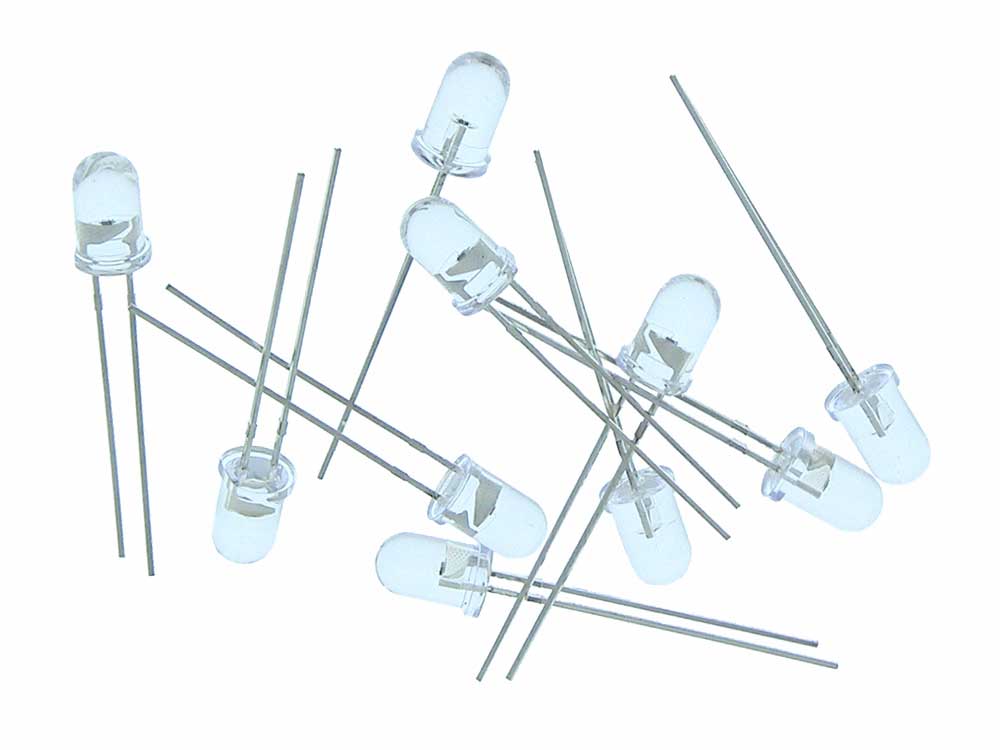

Pack of 10 - PT333-3C Phototransistor - 5MM Clear Case


Pack of 10 - PT333-3C Phototransistor - 5MM Clear Case
Images/36529-large.jpg Images/36529-1.jpg   California Proposition 65 Warning
Stock Number: 36529 OP
  Be the first to review this item
$1.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

Sold as Pack of 10

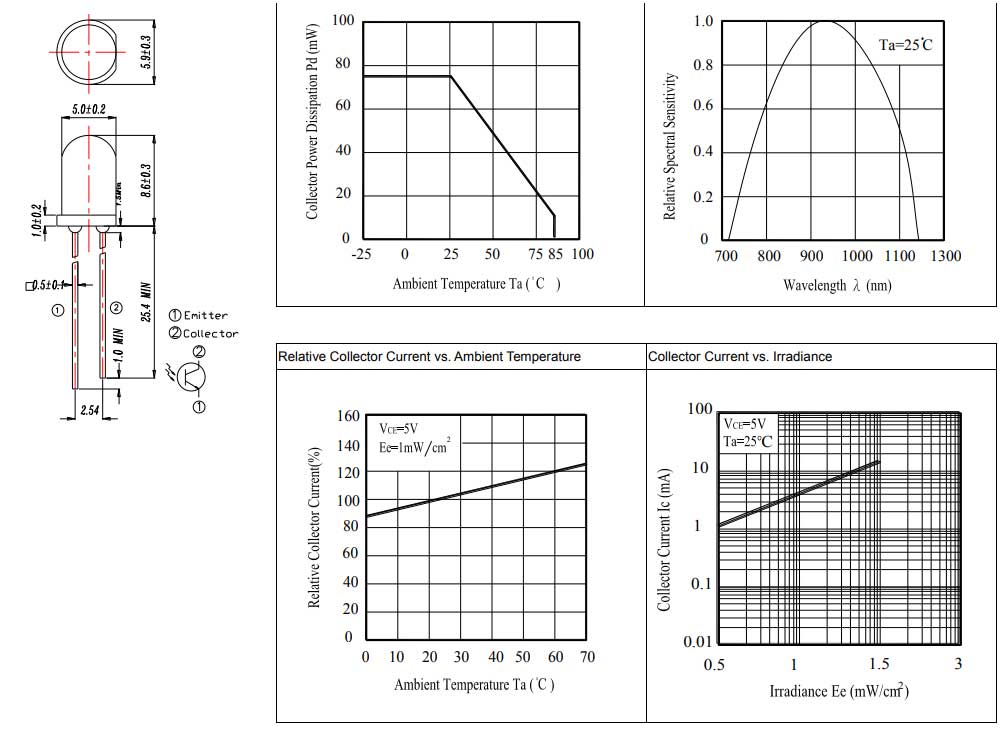

PT333-3C is a high speed and high sensitive NPN silicon
planar phototransistor molded in a standard water clear 5 mm (T1-3/4) LED style package.
Long Lead: Emitter
Shorter Lead: Collector
Sensitive to visible and near Infrared radiation.
BVceo: 30V max
Collector Current (ic): 20ma max
Dark Current (id): 100na max
Peak Wavelength: 940nm
Max power: 75mW @ 25°C
Mounting: Through hole 1in leads
Direction of Sensitivity: Top Dome
WT: .01/pack
