Pack of 9 - QFN SMD Flat Pack IC to Thru Hole Breakout Board


Pack of 9 - QFN SMD Flat Pack IC to Thru Hole Breakout Board
Images/38403-large.jpg Images/38403-1.jpg   California Proposition 65 Warning
Stock Number: 38403 PB
  Be the first to review this item
$3.95


Availibilty: In Stock   Units: 26
Quantity



SHARE

     Email this to a friend

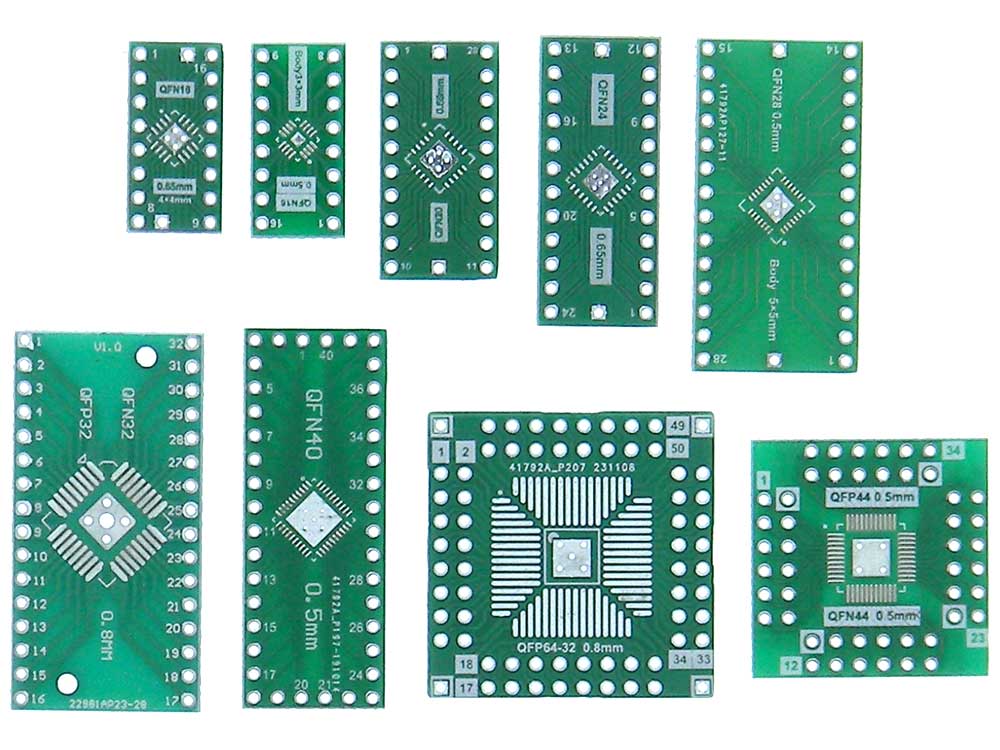

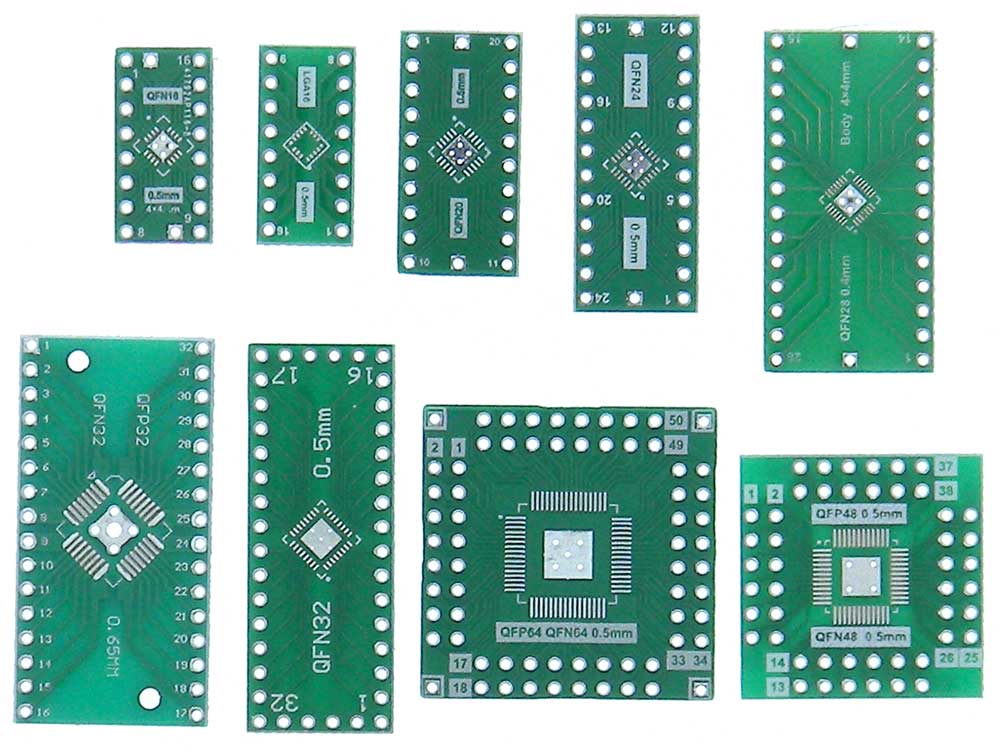

Detailed Description

Set of 9
Double Sided .062", FR-4 board, Plated copper pads. Adapter board kit that convert a SMD Flatpack QFN Package to DIP through hole patterns.
for wire or headers Headers Not Supplied
2 Different Patterns / Board (1 each Side)
1 of each Board
Header Pitch: 2.54mm/0.1" through hole
Board 1: 20.32x10.16mm
Side A: LGA16 Pad Pitch 0.5mm / Package size ~ 2x2mm
Side B: QFN16 Pad Pitch 0.5mm / Package size ~3x3mm
Board 2: 20.3210.16mm
Side A: QFN16 Pad Pitch 0.5mm / Package size ~4x4mm
Side B: QFN16 Pad Pitch 0.65mm / Package size ~4x4mm
Board 3: 25.4x12.7mm
Side A: QFN20 (LFCSP20) Pad Pitch 0.5mm / Package size ~4x4mm
Side B: QFN20 Pad Pitch 0.65mm / Package size ~5x5mm
Board 4: 30,484x12.7mm
Side A: QFN24 Pad Pitch 0.5mm / Package size ~4x4mm
Side B: QFN24 Pad Pitch 0.65mm / Package size ~5x5mm
Board 5: 35.56x17.78mm
Side A: QFN28 Pad Pitch 0.4mm / Package size ~4x4mm
Side B: QFN28 Pad Pitch 0.65mm / Package size ~5x5mm
Board 6: 40.64x20.25mm
Side A: QFN32 Pad Pitch 0.8mm / Package size ~9.2x9.2mm
Side B: QFN32 Pad Pitch 0.65mm / Package size ~7.7x7.4mm
Board 7: 40.64x15.24mm
Side A: QFN32 Pad Pitch 0.5mm / Package size ~5x5mm
Side B: QFN40 Pad Pitch 0.5mm / Package size ~6x6mm
Board 8: 25.4x25.4mm
Side A: QFN44 (QFP44) Pad Pitch 0.5mm / Package size ~5x5mm
Side B: QFN48 (QFP48) Pad Pitch 0.5mm / Package size ~6x6mm
Board 9: 30.48x30.48mm
Side A: QFP64/56/48/40/32 (QFP64) Pad Pitch 0.8mm / Package size ~8x8mm
Side B: QFN64 Pad Pitch 0.5mm / Package size ~6x6mm
WT: .04/pack
