Pair Chassis Mount XT60HE Male & Female Connectors


Pair Chassis Mount XT60HE Male & Female Connectors
Images/38449-large.jpg Images/38449-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 38449 PL
  Be the first to review this item
$1.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

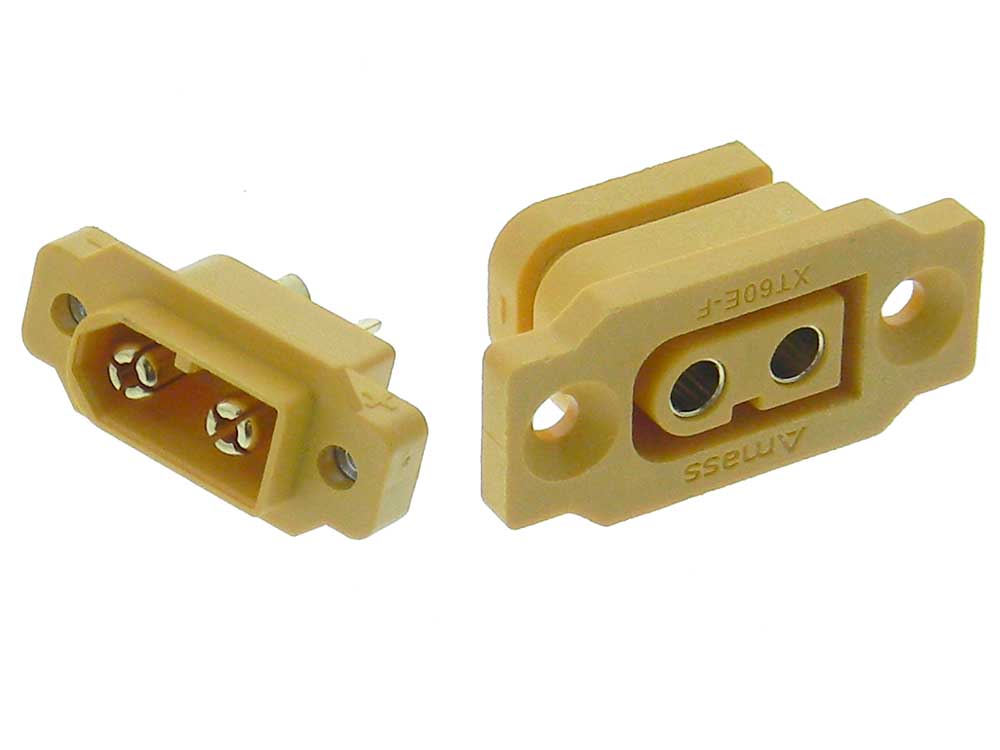

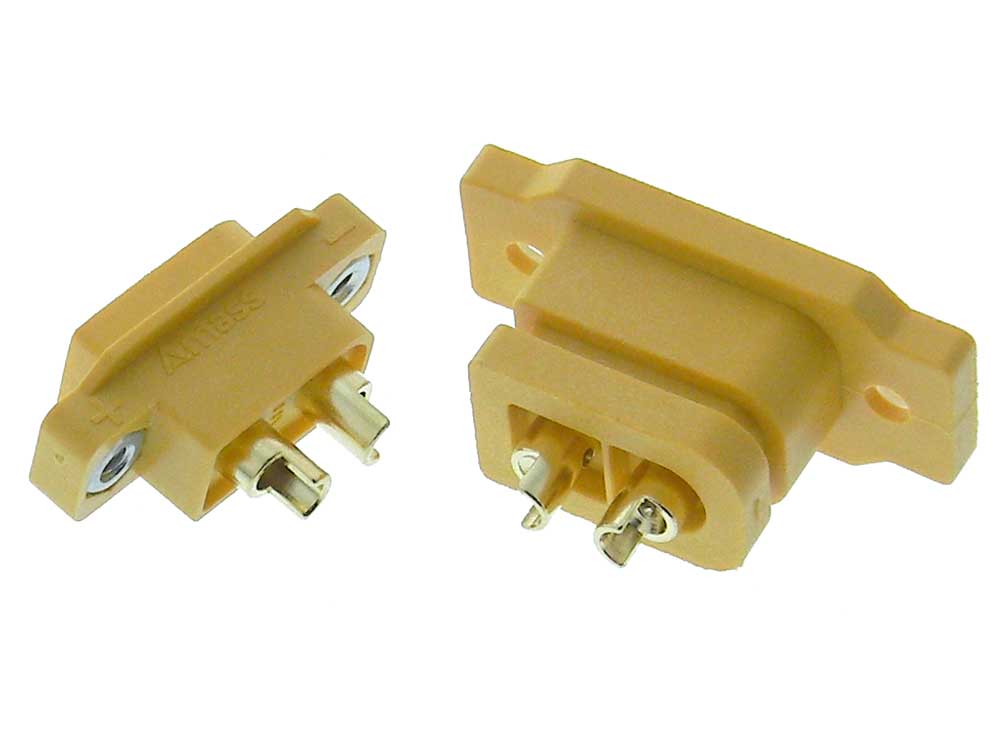

Chassis mount 60A Power Connectors for RC Models..
1 each Amass Style XT60HE-M (male) & -F (Female) connector.
Pins: Gold Plated Brass
Body: PA nylon (polyamide)
Continuous Current: 30A Max
Instantaneous Current: 60A
Max Voltage: 500V
Initial Resistance: ~.55m Ohms
Connections: Solder Cup
Wire: 12AWG
Operating Temp: -20°C to 120°C
Includes Mounting Screws
Male:
W: 27.1mm H: 12.1mm D: 16.7mm WT:
Female
W: 35.0mm H: 15.8mm D: 20.1mm
WT: .04/pair
