Precision Angle Sensor, 0-360Deg. Analog Output


Precision Angle Sensor, 0-360Deg. Analog Output
Images/36215-large.jpg Images/36215-1.jpg   California Proposition 65 Warning
Stock Number: 36215 MI
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item
$26.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

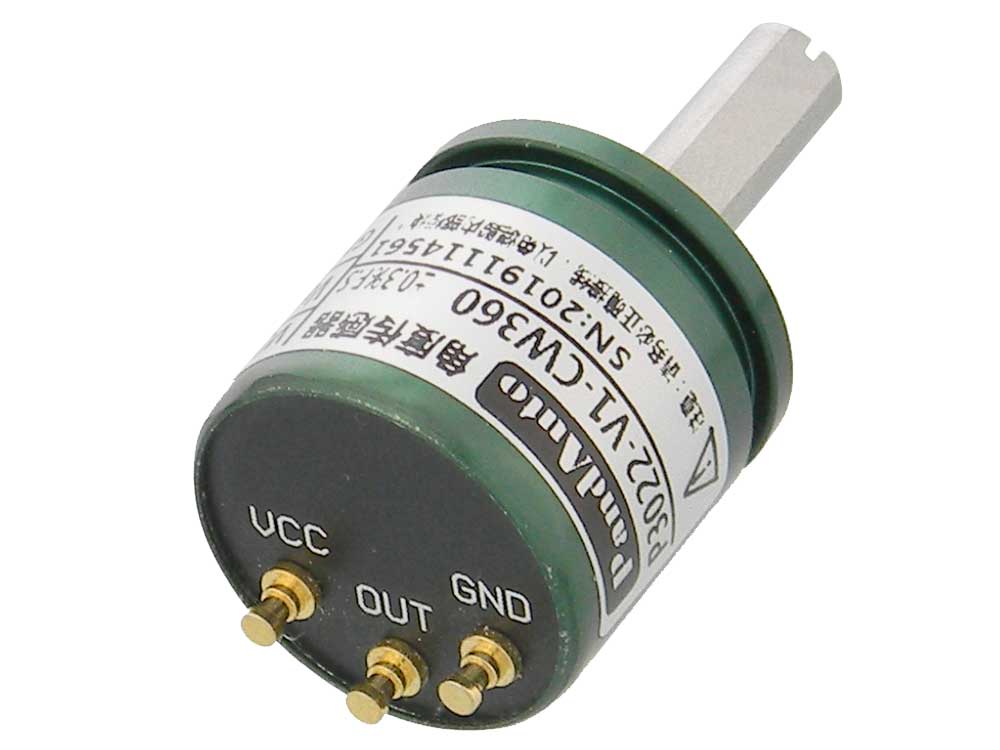

Compact, analog output angle sensor using Hall effect, non-contact technology.
Features: high resolution, smooth rotation and low dynamic noise, hard aluminum body and 304 Stainless steel shaft.
IP40 rated for industrial environments such as water, oil, vibration & shock.
Mechanical Angle: Full 360° rotation with no stops.
Power: 5VDC @ <16mA
Resolution: 360/4096 ~0.088°
Accuracy:0.3%
Update speed: ~0.6ms
Output signal : Analog 0~5V (ratio) (12-bit DAC)
Start end deviation: <1%·VCC
Load resistance: >10KOhms
ESD: Contact discharge ± 8KV, Air discharge ± 15KV.
Operating Temperature: -30°C ~ +80°C
Storage Temperature: -30°C~+80°C
Rotational moment: <5mN·m
Mechanical life: >50 million revolutions

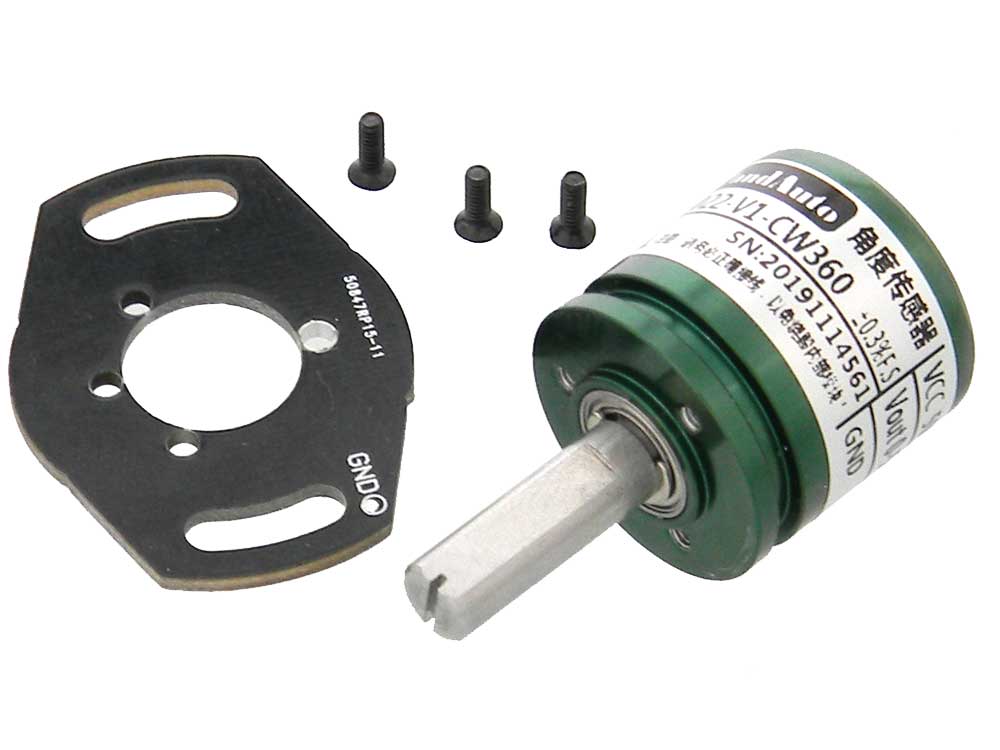

Includes Mounting Bracket
Terminals: Solder Turret
Shaft: 6mm Dia. x 18mm
DIA: 22mm L: 22mm (Body) WT: .06

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Good windvane sensor
seems to work as a windvane sensor. Very low friction. Would be nice if it worked from a 3.3V supply but a voltage divider took care of that issue.
