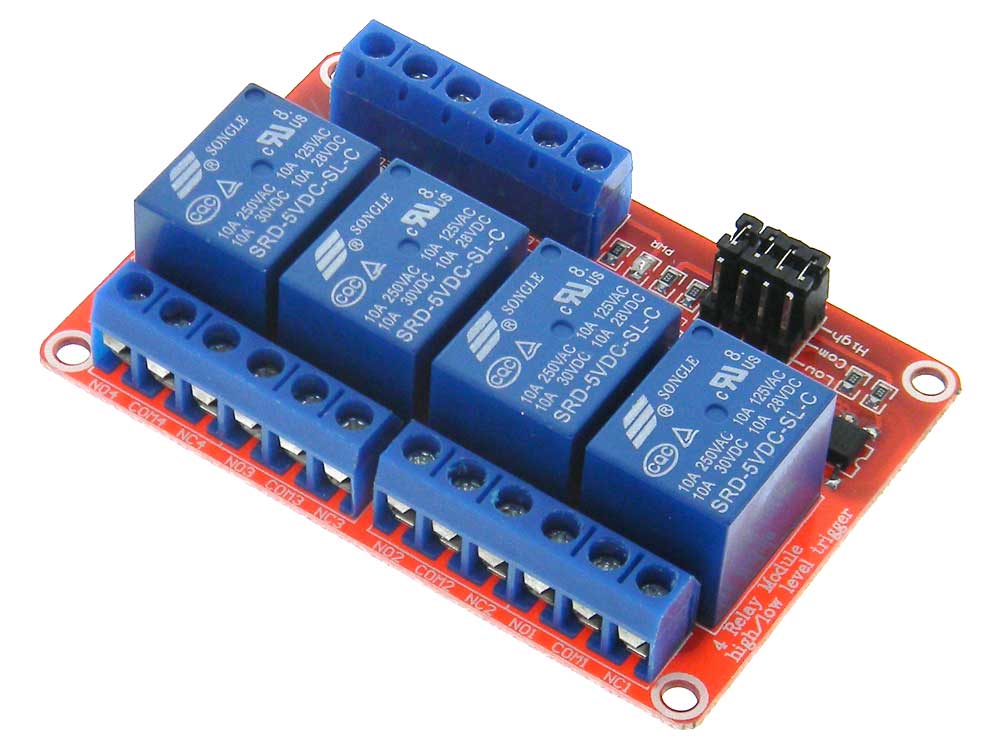

Quad Channel SPDT Relay Board, Isolated 5V


Quad Channel SPDT Relay Board, Isolated 5V
Images/35685-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 35685 MP
  Be the first to review this item

Did we sell out of a part and you want to buy more? You can possible buy directly from our Overseas Supplier. Some restrictions apply: general rule $50 per line item and a minimum $100 per order.

You can contact our source at:
Supplier: Aqua Jiang - aquajiang1@outlook.com

In your email, your Subject needs to be MPJA Customer and reference the MPJA stock number and quantity required. They will get back to you with pricing, lead time and shipping cost.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Opto-isolated Quad relay board designed to be driven a Arduino or other micro controllers.
LED indicatorsfor power & each input.
Board inputs are Opto isolated with a common Ground
Jumper select HIGH or LOW Trigger for each Relay
Power:5VDC (Relays)
Trigger: 5-15VDC <20mA (Each)
Connections: Trigger Select 0.1in. pitch header for each relay.
Terminal Strip for Power and Trigger Inputs
Terminal Strip for Relay Contacts
Contacts: SPDT 10A @ 28VDC,30VDC,125VAC,250VAC
L: 2-7/8" W: 2" H: 3/4" WT: .12
