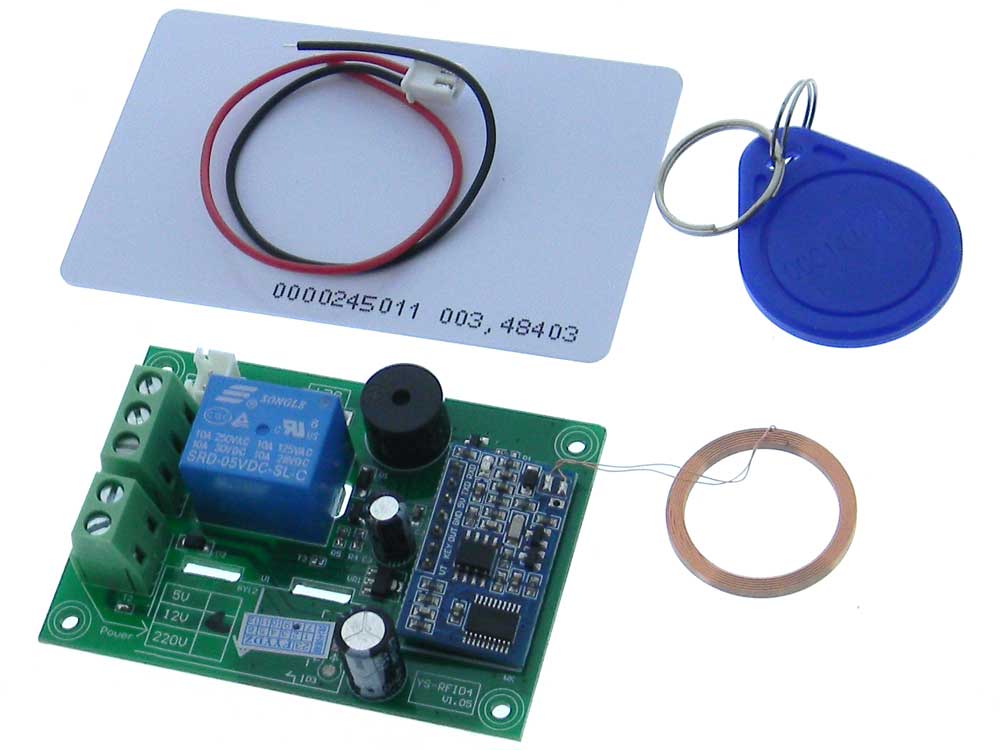

RFID Access Control Module, 12VDC


RFID Access Control Module, 12VDC
Images/38276-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 38276 MI
 Review Average:
 Number of Reviews: 2
 View Reviews | Review this item
$10.95


Availibilty: In Stock   Units: 16
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Power: 9-14V DC (12V Nom)
Current: Active 57mA DC
Standby: 27mA
Relay: SPDT Isolated Contacts
Rated: 125-250VAC/30VDC @ <8A
< 1500W AC (Resistive load), < 96W DC
Working Modes: This product has 2 output Modes Plus 6 Timed Modes:
Real time: Card close; Relay Active, card gone; Relay Off.
Alternate: Card close 1st Time; Relay Active. Card close a second time; Relay Off.
Timed: As soon as the card approaches, the Relay is Active then turns Off automatically after the specified time.
Active Time: 1, 5, 10, 30, 60, or 120 Seconds (Default is 5 sec.)
Number of ID Cards: 3 Master cards: 200 User cards.
Supported ID Card type: TK4100, EM4200 (working frequency 125KHZ), IOS communication protocol 11785
Supported FOB: Read Only, 125KHz
Sensing Distance: 2-4cm
Induction coil: External diameter: ~2.6cm (~1”): Lead length ~3.6cm (~1.5”).
Temperature range: -20 To +60°C
Humidity: <80%
Extra/Replacement FOB or Cards
Card: 38273-MI
FOB: 38274-MI
L: 7cm (~2-11/16”) W: 5cm (~2”) H: 2cm (~3/4”) WT: .1

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Will not program
After waiting over a month because this was back-ordered, it is a disappointment. The card and keyfob program with no issues. The other modes of operation will not. It has one mode only and that is 'Alternate'. No 'Real-time' mode and no timer modes will program and I have exhausted all possibilities of getting it to function according to the PDF file. For the application I had in mind, it is useless.
- Chadwick, TN

Critical info left out of the PDF file
As an addendum to my previous post, yes, the module DOES function. But there is one small detail left out of the PDF file - only the USER keyfob will control the 'Real-Time', Alternate, and Timer modes. The Master card will simply toggle the module in the 'Alternate' state. This should have been in the text file! Maybe you could do an edit because I spent a lot of time wondering what was going on. It works and will do what I had intended, but if I were to use the Master card, then I would have had a big repair to clean up.
- Chadwick, TN
