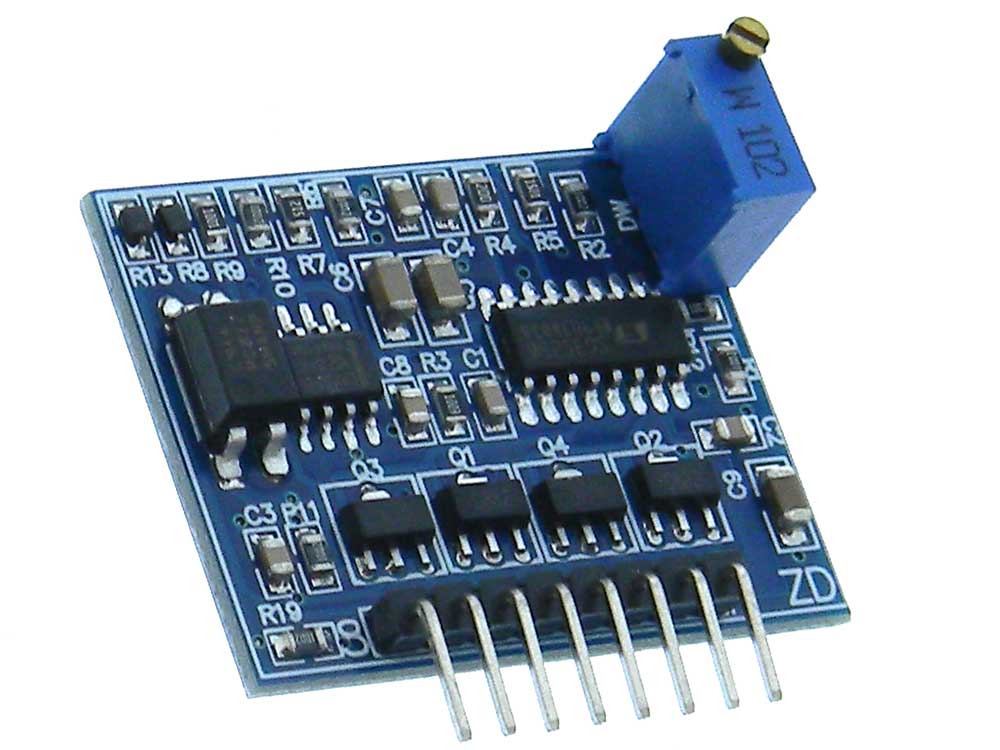

SG3525 plus LM358 Driver Board


SG3525 plus LM358 Driver Board
Images/38279-large.jpg   California Proposition 65 Warning
Stock Number: 38279 MI
  Be the first to review this item
$4.95


Availibilty: In Stock   Units: 27
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

The SG3525A, pulse width modulator control circuit feature
improved performance and lower external parts count and totum-pole outputs. When a LM385 Op-Amp and a opto-coupler is added, the combo provides a driver module suitable for driving FET transistors, and provides isolated (Opto-coupled) input for low level sensors to control the output.
Power: 8-12VDC
Output Drive: 1A (up to 20 3205 Transistors)
Adjustable Frequency: 20-35 kHz
Connections: 8Pin Right Angle Header Pins. 0.1” Pitch
L: 35mm (1-5/16”) W: 25mm (1”) H: 16mm (1/2”) WT: 01
