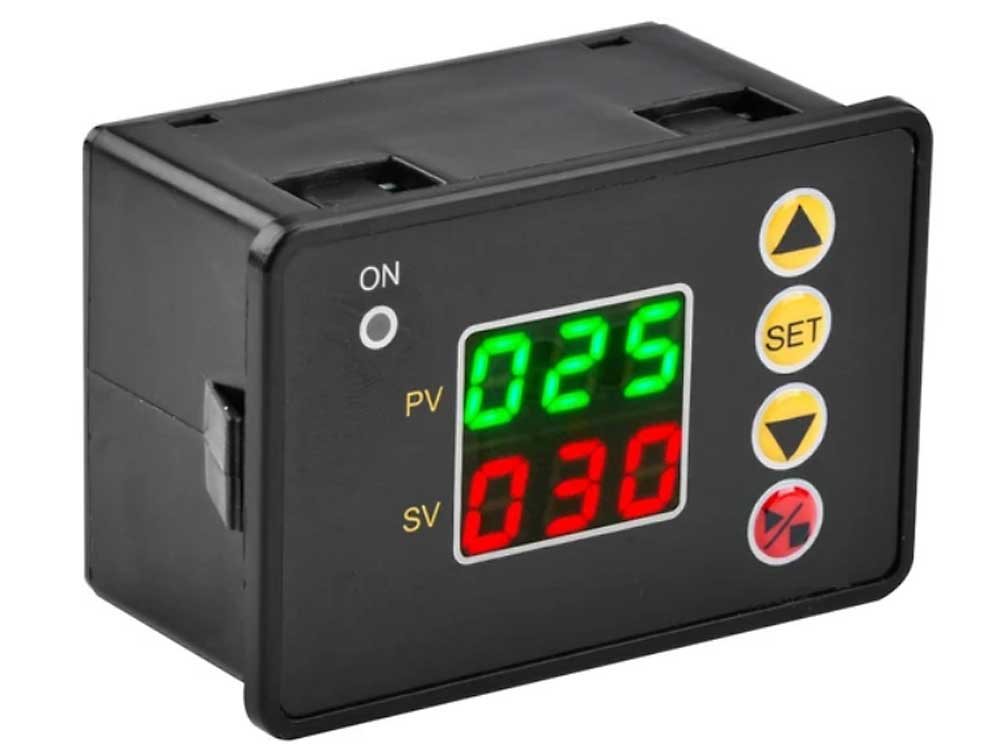

SPST-NO Adjustable Recycle Timer 110/220VAC


SPST-NO Adjustable Recycle Timer 110/220VAC
Images/38247-large.jpg   California Proposition 65 Warning
Stock Number: 38247 RL
  Be the first to review this item
$9.95

Did we sell out of a part you need?
You may be able to purchase it directly from our overseas supplier.

 Please note the following restrictions:
   •   $50 minimum per line item
   •   $100 minimum per order

 To inquire, contact:

 Supplier: Aqua Jiang
Email: aquajiang1@outlook.com

 When emailing, please use “MPJA Customer” as the subject line and include the MPJA stock number and quantity needed. The supplier will respond with pricing, lead time and shipping costs.

SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Micro processor controlled, Cycle timer
Voltage: 110-220VAC
Max Power: 10A Max (2200W @ 220VAC) Recommend <80%
Timing Range: 0~999 (seconds, minutes, hours)
Minimum Unit: 1 second
Timing Type: Non - clock (countdown)
Timing Error: ~±3s/24 hours
Timed Startup: Adjustable Time (Delayed Turn ON at Power Up or
Trigger ”Start/Stop” Button)
Timed Shutdown: Adjustable (Delayed Turn OFF on
Trigger ”Start/Stop” Button)
Cycles: 1 to 999 or Continious Loop
Trigger: Automatic Trigger (Power ON) and Manual (Front Panel
"Start/Stop" Button), Default: Automatic
Setting Lock: On / Off
Relay: SPST-NO
Contact: Non-Isolated, Active Output, Switched LINE, Common NEUTRAL
Connections: Terminal Strip
Cutout: 63×42mm
W: 67mm (2-5/8”) H: 45mm (1-3/4”) D: 34mm (1-5/16”) WT: .14
