SPST Recycle Relay Timer - 100-220VAC


SPST Recycle Relay Timer - 100-220VAC

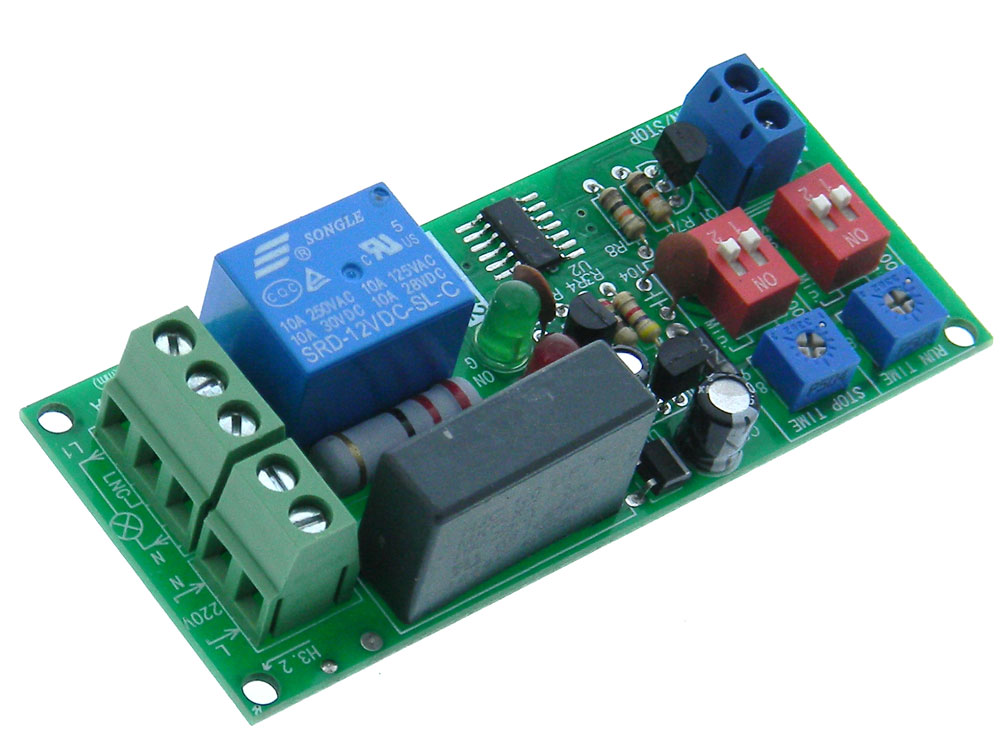

Images/37882-large.jpg   California Proposition 65 Warning
Stock Number: 37882 RL
  Be the first to review this item
$8.95


Availibilty: In Stock   Units: 15
Quantity



SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

Adjustable Recycle Relay Module. Trigger Input Turns On Relay for the "ON" Time, after "ON" Time, Relay turns Off for the "OFF" time. Continues this ON-OFF-ON-OFF..... until Power Removed OR another Trigger is applied.
(1st. Trigger Starts--2nd Trigger Stops)
Used for repeated power on and off cycling of lights, motors or equipment.
NOTE: NOT ISOLATED Output Voltage Is Equal to Input.
Start Input terminals connect to a Normally Open Passive Contact.
Power: 100-250VAC @ <0.1A
Trigger: Switch across Trigger terminals (Passive)
T1 ON: Time: 4 Ranges: 0.5 Sec to 1000 Minutes
T2 OFF: Time: 4 Ranges: 0.5 Sec to 1000 Minutes
Screwdriver adjustment of Fine time setting
Relay: SPST
Contacts: 10A 125/250VAC/30VDC
Temperature Range:-40°~85°C
Humidity Range:0%~90%RH
Green LED: Relay "ON" Red LED: Relay Off
L: 89mm (3-1/2”) W: 39mm (1-1/2”) H:19mm (3/4”) WT: .06
