Smoke Detector Module, 5 - 30VDC, SPDT Relay


Smoke Detector Module, 5 - 30VDC, SPDT Relay
Images/38278-large.jpg Images/38278-1.jpg   California Proposition 65 Warning
Stock Number: 38278 MI
  Be the first to review this item
$12.95
$10.95
This item is discontinued & is not being restocked.


Availibilty: In Stock   Units: 14
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

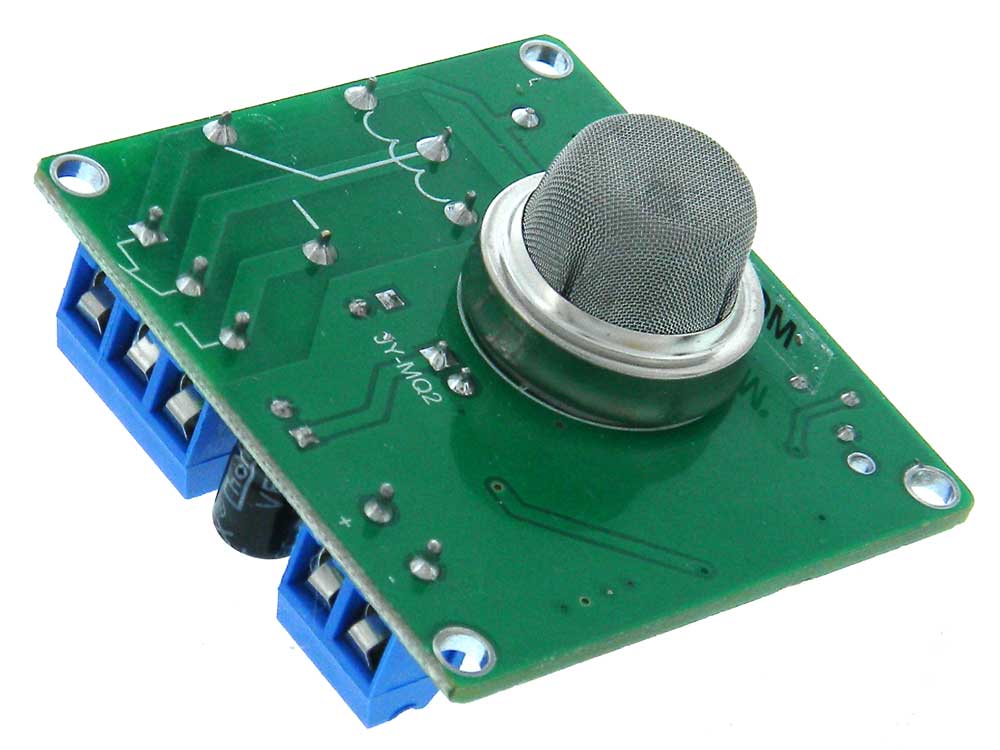

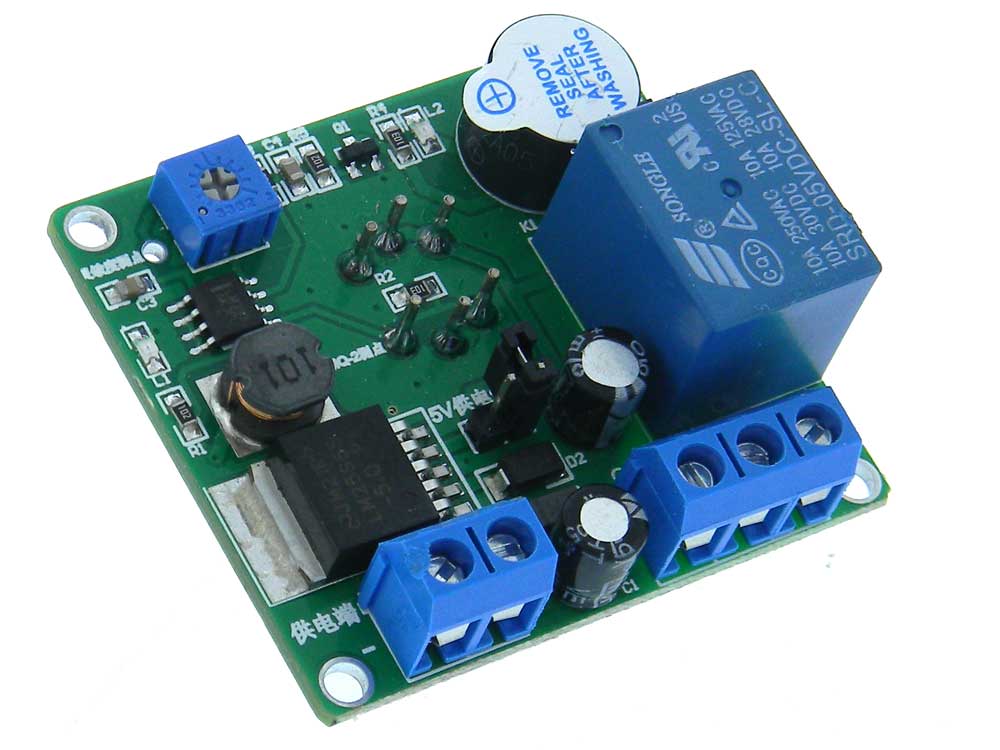

Module using a back mounted MQ-2 sensor and relay with isolated contacts. Module detects smoke concentration. Adjustable smoke detection threshold. When the sensor detects that the ambient smoke concentration is greater than the threshold value, the relay will close and the LED alarm indicator will be ON and the buzzer will sound. When smoke concentration is lower than the smoke threshold, the relay will disconnect, the LED alarm light will be OFF and the buzzer will stop alarming.
Voltage: 5-7 or 7-30VDC Jumper Select
Standby Current:~ 20mA
Alarm Current: 50mA
Relay: SPDT
Contacts: Rated: 110-220VAC/10A or 30VDC/10A
Operating Temperature: -40 to 85°C
L: 49mm (1-15/16” ) W: 45mm (1-3/4”)
HT: 32mm (1-1/4”) WT: .06
